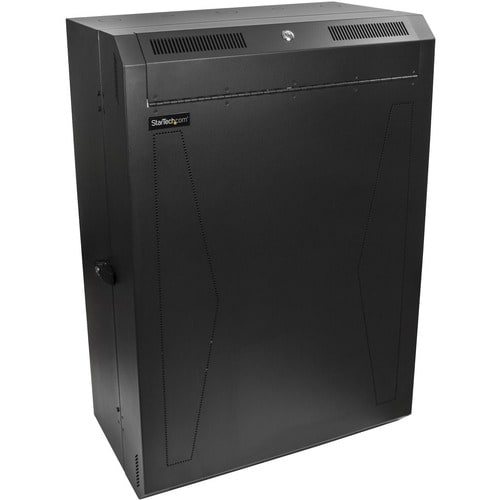

StarTech.com 8U 19" Vertical Wall Mount Server Rack Cabinet Enclosure

StarTech.com 8U 19" Vertical Wall Mount Server Rack Cabinet Enclosure

Regular price $777.38 CAD
Regular price $893.99 CAD Sale price $777.38 CAD
-13% OFF Ask for quote
Shipping calculated at checkout.
StarTech.com 8U 19" Vertical Wall Mount Server Rack Cabinet Enclosure - Low Profile (15") - 30" Deep Locking w/2U for Network IT Equipment - 8U 19in Vertical Wall Mount Server Rack Cabinet mounts servers vertically - Up to 30in. mounting depth & only extends 15in from wall - Assembled/EIA/ECA-310-E/200lb Weight Cap. w/Mounting Screws - Network/Data/IT Enclosure Locking Side Panels w/Keys

VPN:RK830WALVS SKU:RSC892875 UPC:65030870054

  • MOUNT YOUR SERVERS VERTICALLY: This 8U vertical wall mount server rack cabinet features a space saving low profile design & provides up to 30" of mounting depth while only extending 15" from the wall

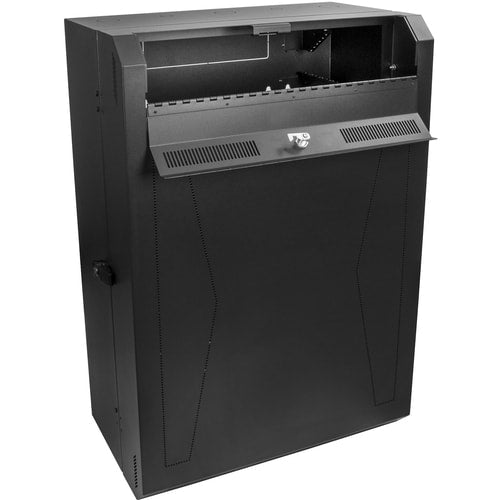

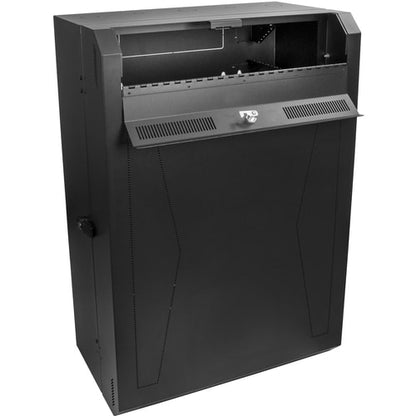

  • INCLUDES AN EXTRA 2U OF MOUNTING SPACE: 2U of angled 2 post horizontal mounting space is provided above the vertical server mounting rails for switches, patch panels, and routers up to 4.7" in depth
  • TECH SPECS: 8U 19" Vertical Wallmount Enclosure | Pre-Assembled | EIA/ECA-310-E | Rear & Bottom Cable Routing | 200 lb (90 kg) Weight Capacity | Mounting Screws Incl. | Optional 2x 120mm Fans

Volume discount available - Ask for quote..

View full details

Recently Viewed

StarTech.com 8U 19" Vertical Wall Mount Server Rack Cabinet Enclosure

Product information summary

StarTech.com 8U 19" Vertical Wall Mount Server Rack Cabinet Enclosure

About the product

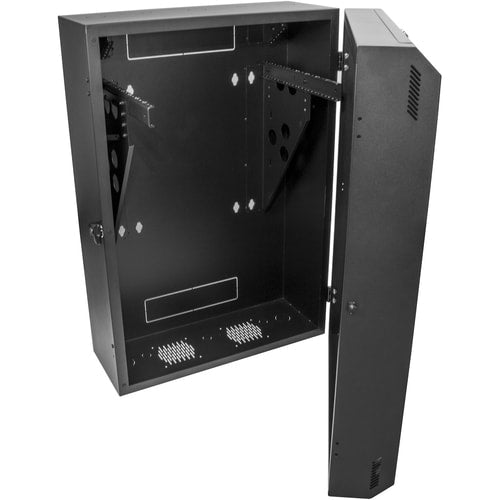

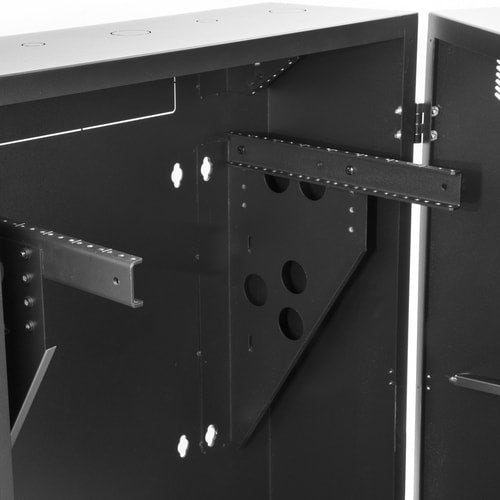

This 8U vertical server cabinet offers a space-saving way to keep your network and server equipment secure. With its 30 in. depth, and a weight capacity of up to 200 lb. (90.7 kg), the server rack/cabinet is designed to fit your needs. It also features an additional 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other shallow rack-mount equipment.
Free up space
Wall-mount your equipment, even if you don't have enough space for a full-sized rack or cabinet. This low-profile server cabinet is perfect for areas where space is at a premium, such as an office. The cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically. This reduces the horizontal footprint of your equipment while still providing plenty of room for your servers, patch panels, and switches.
Keep your equipment cool and secure
To help keep your equipment secure, the vertical server cabinet/network rack features a sturdy metal design and a lock on both the door and access panel. It is also vented, providing passive cooling to help keep your equipment running at suitable temperatures.
Easy, hassle-free installation

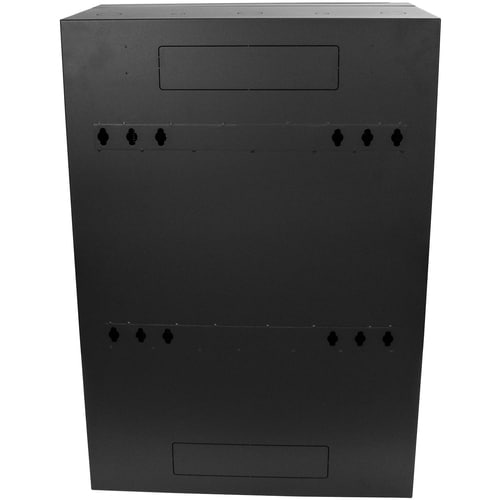

The server rack comes fully assembled and includes all of the necessary hardware to install equipment, making installation fast and easy. The mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common North American wall-frame stud spacing.
The RK830WALVS is backed by a StarTech.com 5-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

  • MOUNT YOUR SERVERS VERTICALLY: This 8U vertical wall mount server rack cabinet features a space saving low profile design & provides up to 30" of mounting depth while only extending 15" from the wall
  • INCLUDES AN EXTRA 2U OF MOUNTING SPACE: 2U of angled 2 post horizontal mounting space is provided above the vertical server mounting rails for switches, patch panels, and routers up to 4.7" in depth
  • TECH SPECS: 8U 19" Vertical Wallmount Enclosure | Pre-Assembled | EIA/ECA-310-E | Rear & Bottom Cable Routing | 200 lb (90 kg) Weight Capacity | Mounting Screws Incl. | Optional 2x 120mm Fans
  • MULTIPLE SECURITY FEATURES: Locking side panels w/ 4 keys, for multiple levels of security; cabling can routed into the cabinet from the wall without exposing cables for extra security
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; this vertical wallmount network/data rack is backed for 5 years by StarTech.com, includes free 24/5 North America based tech support

Technical Specifications

Technical Information
Application/UsageServer
Patch Panel
LAN Switch
Miscellaneous

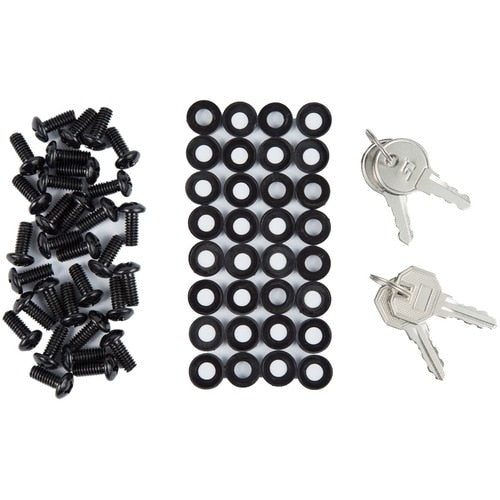

Package Contents
  • 8U Vertical Server Cabinet - 30 in. depth
  • 2 x Door Keys
  • 2 x Front-Panel Keys
  • 32 x 12-24 Screws
  • 32 x Plastic Washers
  • 1 x Instruction Manual
Country of OriginChina
Assembly RequiredNo
Environmentally FriendlyYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
General Information
Product TypeRack Cabinet
Manufacturer Part NumberRK830WALVS
Manufacturer Website Addresshttp://www.startech.com
Packaged Quantity1 Each
ManufacturerStarTech.com
Product Name8U Vertical Server Cabinet - 30 in. depth
Brand NameStarTech.com
Physical Characteristics
Weight (Approximate)80.47 lb (36500 g)
Form FactorWall Mountable
Length15.10" (383.54 mm)
Rack Height8U
Height37" (939.80 mm)
Width25.40" (645.16 mm)
Maximum Weight Capacity198.42 lb (90000 g)
Rack Depth29.90" (759.46 mm)
Product ColorBlack
Color FamilyBlack
Product MaterialSteel
