VPN:RKBS20ST6F12R SKU:RSC365640 UPC:649532901913
- 18 x NEMA 5-20R receptacles protects your devices from electric power surges and spikes
- Offers 18 x NEMA 5-20R surge protected outlets
- 1800 J offers great protection against surges and line noise
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details![[{"title":"RACKBAR RM 18OUT NEMA 5-20R NEED FREIGHTQUOTE FOR BELOW 10K PO"}]](http://www.digitizerglobal.com/cdn/shop/files/1018222798.jpg?v=1745940256&width=1445)
![[{"title":"RACKBAR RM 18OUT NEMA 5-20R NEED FREIGHTQUOTE FOR BELOW 10K PO"}]](http://www.digitizerglobal.com/cdn/shop/files/1018222798_02cdd083-3657-489f-a1d3-a5d39d640f8c.jpg?v=1745940256&width=1445)
Recently Viewed
[{"title":"RACKBAR RM 18OUT NEMA 5-20R NEED FREIGHTQUOTE FOR BELOW 10K PO"}]
Product information summary
![[{"title":"RACKBAR RM 18OUT NEMA 5-20R NEED FREIGHTQUOTE FOR BELOW 10K PO"}]](http://www.digitizerglobal.com/cdn/shop/files/1018222798.jpg?v=1745940256&width=3200)
About the product

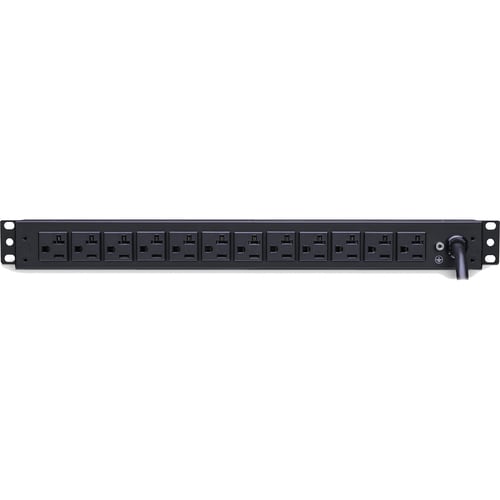

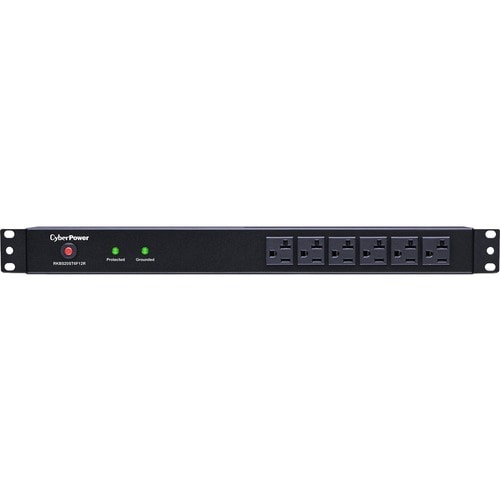

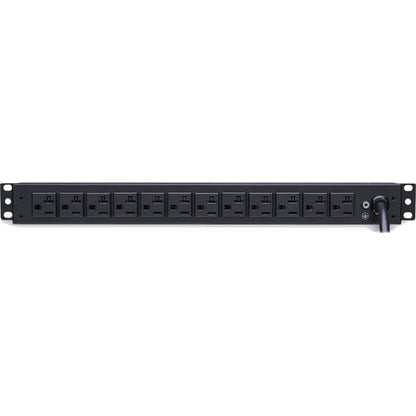

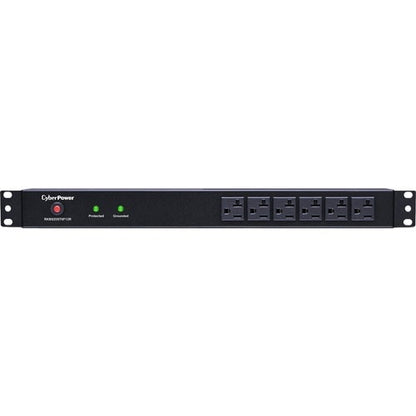

The CyberPower 18-outlet (6 Front and 12 Rear) rack mounted Rackbar surge suppressor (RKBS20ST6F12R) provides 120V 20A output and a surge suppression rating of 1,800 joules. It distributes power to 18 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug. Designed for data centers and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty and $150,000 Connected Equipment Guarantee ensures the Rackbar surge suppressor is free of defects in design, assembly, material or workmanship.
- 18 x NEMA 5-20R receptacles protects your devices from electric power surges and spikes
- Offers 18 x NEMA 5-20R surge protected outlets
- 1800 J offers great protection against surges and line noise
- Protect your sensitive devices with 1800 J energy rating
- Helps you reduce the repair cost for equipment
- Easily connect to a wall outlet with 15 ft (4.57 m) cord
Technical Specifications
Technical Information | |
Protection Type | Surge |
Receptacles | 18 x NEMA 5-20R |
Plug/Connector Type | NEMA L5-20P |
Power Description | |
Input Voltage | 120 V AC |
Output Voltage | 120 V AC |
Surge Energy Rating | 1800 J |
Maximum Line Current | 20 A |
Miscellaneous | |
Additional Information |
|
Package Contents |
|
Compatibility |
|
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Physical Characteristics | |
Weight (Approximate) | 4.90 lb (2222.60 g) |
Height | 1.75" (44.45 mm) |
Width | 17.50" (444.50 mm) |
Depth | 2.25" (57.15 mm) |
Power Cord/Cable Length | 15 ft (4.57 m) |
General Information | |
Product Type | Surge Suppressor/Protector |
Manufacturer Part Number | RKBS20ST6F12R |
Manufacturer Website Address | https://www.cyberpowersystems.com/ |
Manufacturer | CyberPower Systems, Inc |
Product Model | RKBS20ST6F12R |
Product Name | Rackbar Surge Suppressor RM 1U RKBS20ST6F12R 20A 18-Outlet |
Product Series | Rackbar Surge |
Brand Name | CyberPower |
