Black Box Corp 19U Wallmount Cabinet

Name: Black Box Corp 19U Wallmount Cabinet
Brand: Black
SKU: T884493
Price: 520.33 CAD
Availability: InStock

$520.33 CAD

~~$572.37 CAD~~ $520.33 CAD

-9% OFF Ask for quote

Shipping calculated at checkout.

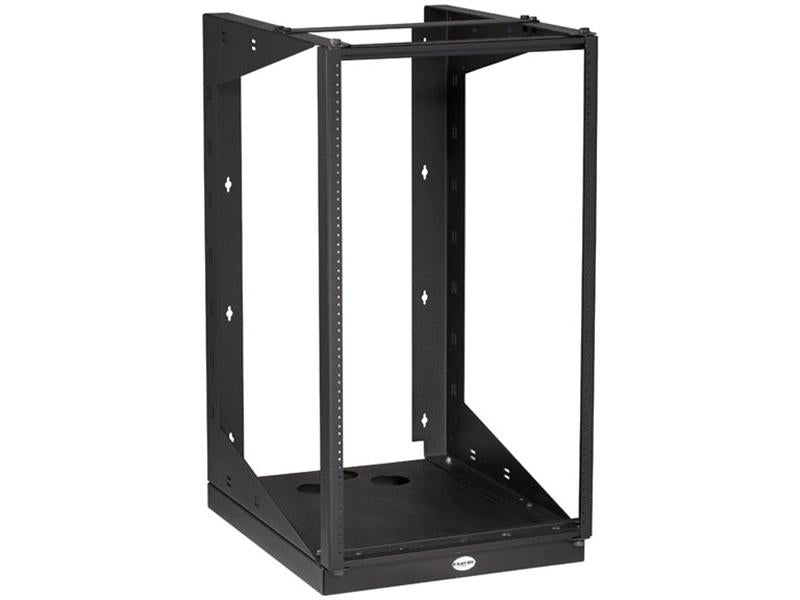

Black Box Corp 19U Wallmount Cabinet

VPN:RM051A-R3 SKU:T884493 UPC:822088131632

Quantity

Product information summary

Self-squaring design simplifies installation.

Provides 19U of rackmount space.

The racks swing open to the left or right for easy access to equipment and terminations.

The 25" depth provides plenty of room to open and close the rack, even when it's fully loaded with patch panels, hubs, or routers.

Mount 19" equipment to the wall without losing access for moves, adds, and changes.

A 12-gauge steel reinforcement pan on the bottom adds strength to the rack.

Includes grounding lugs.

Primary Information
Product Type:	Wallmount Rack
Enclosure Color:	Black
Product Material:	Steel
Width:	19.8 Inch
Depth:	25 Inch
Height:	38.25 Inch
Service & Support Type:	Lifetime Double Diamond Warranty (Standard)
Features:	Just the right size for mounting heavier, deeper networking equipment;Heavy-duty rack for tight spaces;Holds 100 pounds;Drilled with a 5/8 - 5/8 - 1/2 universal hole pattern;Feature 12-24 mounting holes and includes 12 12-24 x 1/2 screws;Fire-retardant VELCRO straps are included to bundle cable neatly.
What's Included:	1 35.313 H reinforced swing frame, weldment;1 Top/bottom brace;2 35.633 H x 25 D swing rack side weldment;4 Bolt 3/8-16 X 1/2 hex head or 2 RBZ;4 Bolt 1/4-20 x 1/2 L hex head ;1 Swing rack base plate;4 Nut, 1/4-20, steel, grade 2, RBZ;50 Screw 12-24 x 1/2 L PPH T23 RBZ (equipment installation);4 Screw socket head 3/8-16 plain;1 Ground label, 1/2 dia., ED & D, SL-01;1 Ground wire, 11L (stripped);4 Nut M6 kepps tooth nut RBZ;1 Labels UL;1 Bag, 3 x 5 orange, heat seal with hardware DO NOT DISCARD;1 Black Box Ultra Wallmount Racks Users manual;1 2S2/0 2/0-14 AWG, and flex wire G-K w/mm2 class 5, 2 barrel, aluminum or copper wire, CU9AL, 90C temp. single 1/4 bit mnt, UL and CSA
Special Feature
COO:	UNITED STATES
UNSPSC Code
UNSPSC Code:	24102001
