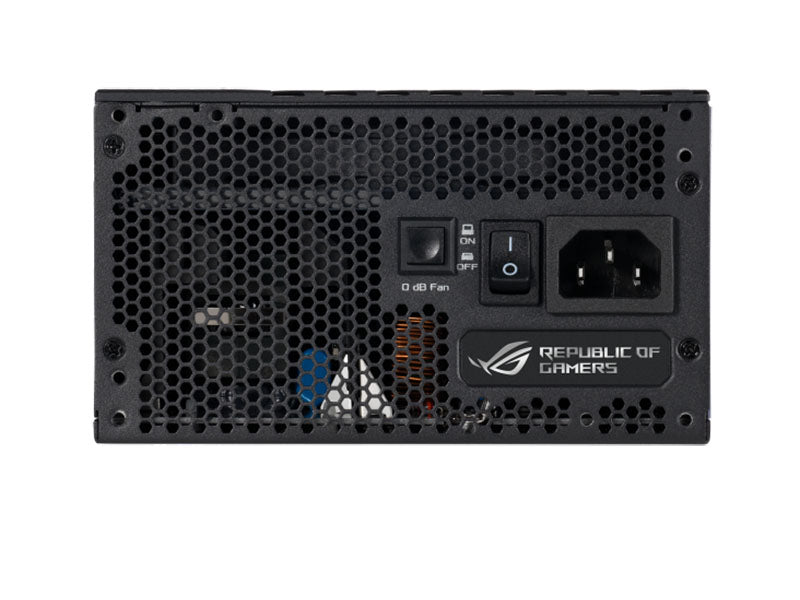

About the product
Back with a vengeance, the second iteration of the ROG Thor 1000 W Platinum wields cooling and component upgrades that make it the quietest PSU in its class. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, ASUS has added a mirrored side panel that neatly frames the OLED display.
Technical Specifications
| Primary Information | |
| Product Description: | ASUS ROG Thor Platinum II - power supply - 850 Watt |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Weight: | 4.11 lbs |
| Input Voltage: | AC 100-240 V |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 850 Watt |
| Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 71 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Output connectors: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 7 x 8 pin PCI Express power with detachable 2 pin section ¦ 10 x 15 pin Serial ATA power ¦ 6 x 4 pin internal power |
| Modular Cable Management: | Yes |
| Cooling System: | 135 mm fan |
| Included Accessories: | Screws, 10 cable ties, ROG sticker, 6 x ROG cable ties, cable combs |
| Dimensions (WxDxH): | 5.9 in x 6.3 in x 3.4 in |
| Manufacturer Warranty: | 10-year warranty |
| General | |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V |
| PSU Form Factor: | ATX |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 7 x 8 pin PCI Express power with detachable 2 pin section ¦ 10 x 15 pin Serial ATA power ¦ 6 x 4 pin internal power |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 850 Watt |
| Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 71 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency: | 92% |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Miscellaneous | |
| Included Accessories: | Screws, 10 cable ties, ROG sticker, 6 x ROG cable ties, cable combs |
| Cables Included: | AC input cable - external ¦ Power 24 pin ATX with detachable 4 pin section modular cable 2 ft ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 2 ft ¦ 16-pin 12VHPWR power cable 2.2 ft ¦ 3 x 8 pin PCI Express power with detachable 2 pin section modular cable ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable ¦ 3 x Serial ATA cable ¦ ARGB sync cable ¦ 2 x 4 pin internal power cable |
| Cooling System: | 135 mm fan |
| Features: | Sleeved cables, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, thermal protection, OLED display, fully modular, ASUS Aura Sync, ROG heatsink, 0db Technology, Lambda A++ Certification |
| Compliant Standards: | RoHS |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 10 years ¦ Limited warranty - OLED panel - 3 years ¦ Limited warranty - RGB LEDs - 3 years |
| Dimensions & Weight | |
| Width: | 5.9 in |
| Depth: | 6.3 in |
| Height: | 3.4 in |
| Weight: | 4.11 lbs |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
