About the product

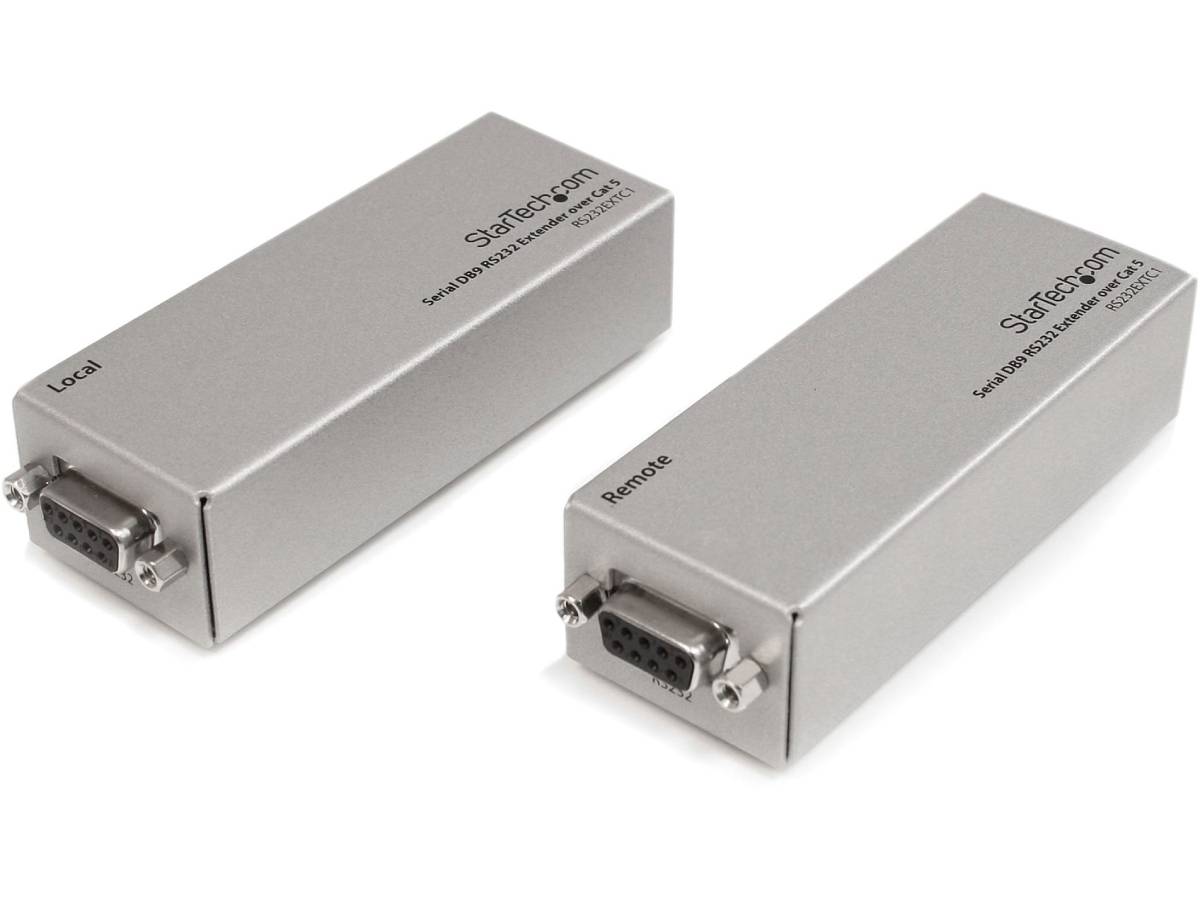

The RS232EXTC1 Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit.
The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling.
Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps.
Technical Specifications
| Primary Information | |
| Product Description: | StarTech.com Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters) (RS232EXTC1) - serial port extender |
| Device Type: | Serial port extender |
| Form Factor: | External |
| Data Transfer Rate: | 230 Kbps |
| Transmission Medium: | CAT 5 |
| Max Transfer Distance: | 0.6 miles |
| Manufacturer Warranty: | 2-year warranty |
| Designed For: | P/N: ICUSB232SM3, SVA9M2NEUA |
| General | |
| Device Type: | Serial port extender |
| Form Factor: | External |
| Networking | |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 230 Kbps |
| Max Transfer Distance: | 0.6 miles |
| Expansion / Connectivity | |
| Interfaces: | 1 x RS-232 - DB-9 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Compatibility Information | |
| Designed For: | P/N: ICUSB232SM3, SVA9M2NEUA |
| Special Feature | |
| COO: | CHINA |
