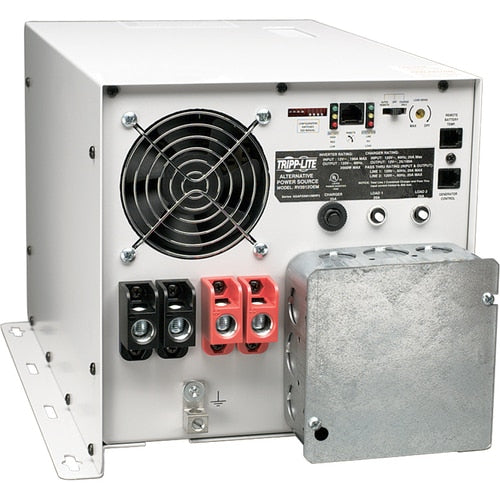

Tripp Lite PowerVerter RV RV3012OEM Charger DC-to-AC Power Inverter -
Tripp Lite PowerVerter RV RV3012OEM Charger DC-to-AC Power Inverter -
VPN:RV3012OEM SKU:RSC366574 UPC:37332117427
- 12V DC or 120V AC input; 120V AC output (hardwired)
- 3000 watts continuous, 4500 watts OverPower™ and 6000 watts DoubleBoost™ inverter output
- 3 stage, 35/140 amp selectable wet/dry cell battery charger
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details
Recently Viewed
Tripp Lite PowerVerter RV RV3012OEM Charger DC-to-AC Power Inverter -
Product information summary

About the product
Tripp Lite's RV3012OEM Inverter/Charger is the quiet alternative to gas generatorswith no fumes, fuel or noise to deal with! It provides equipment with utility- or generator-supplied AC electricity filtered through premium ISOBAR surge protection. This DC-to-AC inverter with automatic line-to-battery transer and integrated charging system serves as an extended run UPS, a standalone power source or an automative inverter suitable for rugged RV applications. Supplies up to 3000 watts of continuous 120V AC power from any 12V DC battery or automotive DC source. OverPower TM inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes and DoubleBoost TM inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, selectable 35/140 amp charging system. Includes optional dual-circuit hardwire AC input to enable full charger output from circuit 1 with a 120V 20A input and full AC pass-through from circuit 2 with a second 120V 20A input feed. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery
- 12V DC or 120V AC input; 120V AC output (hardwired)
- 3000 watts continuous, 4500 watts OverPower™ and 6000 watts DoubleBoost™ inverter output
- 3 stage, 35/140 amp selectable wet/dry cell battery charger
- Built-in Isobar® premium AC surge protection and Auto Transfer Switching option for battery backup / UPS operation
- Tested to power inverter standards UL458 (USA) and CSA (Canada)
- High reliability large-transformer design with protected DC and AC wiring terminals
Technical Specifications
Technical Information | |
Receptacles | 2 x Hardwired |
Plug/Connector Type | Terminal Block |
Miscellaneous | |
Package Contents |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Physical Characteristics | |
Weight (Approximate) | 62.60 lb (28394.88 g) |
Height | 9.75" (247.65 mm) |
Width | 11.50" (292.10 mm) |
Depth | 16.75" (425.45 mm) |
Power Description | |
Input Voltage | 12 V DC |
Output Voltage | 12 V DC |
120 V AC | |
Waveform Type | Pulse-width Modulated Sine Wave |
Maximum Frequency | 60 Hz |
Peak Power Load | 6 kW |
Continuous Power Load | 3 kW |
General Information | |
Product Type | Power Inverter |
Manufacturer Part Number | RV3012OEM |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Model | RV3012OEM |
Product Name | PowerVerter RV RV3012OEM Charger DC-to-AC Power Inverter |
Product Line | PowerVerter |
Product Series | RV |
Brand Name | Tripp Lite by Eaton |
