About the product

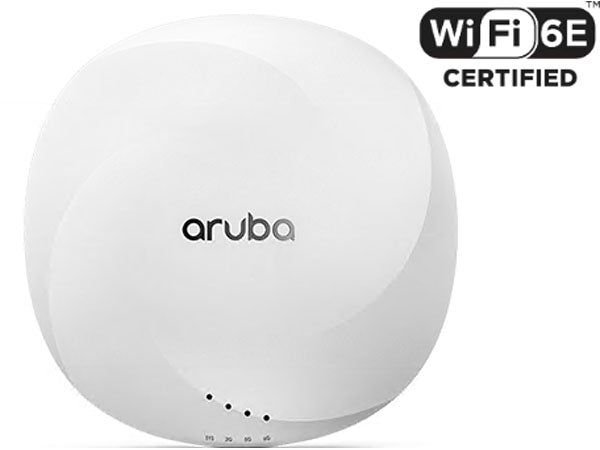

The HPE Aruba AP-615 (RW10) represents a significant advancement in network device technology, offering high wireless performance and security. Designed for demanding campus environments, this wireless access point leverages Wi-Fi 6 technology to deliver combined peak data rates up to 3.6 Gbps across 2.4 GHz, 5 GHz, and 6 GHz bands. It is equipped with features such as ClientMatch, which ensures devices are connected to the best possible access point, and Intelligent Power Monitoring for efficient energy use.
Security is paramount, and the AP-615 (RW10) addresses this with a suite of encryption algorithms including WPA3, ensuring that network communications remain secure. Additionally, its IoT readiness, through Bluetooth Low Energy (LE) and Zigbee compatibility, makes it an ideal choice for modern, connected environments. With its ruggedized indoor design and compliance with a wide range of standards, the AP-615 (RW10) is built to provide reliable, high-performance wireless connectivity that meets the needs of today's mobile-first world.
Technical Specifications
| Primary Information | |
| Product Description: | HPE Aruba Networking AP-615 (RW10) - Campus - wireless access point - Wi-Fi 6E, Bluetooth, ZigBee |
| Device Type: | Wireless access point |
| Packaged Quantity: | 10 (specifications are for single item) |
| Form Factor: | - indoor |
| Data Link Protocol: | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.0 LE, ZigBee |
| Frequency Band: | 2.4 GHz, 5 GHz, 6 GHz |
| Performance: | Combined peak data rate: 3.6 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (6 GHz): 2.4 Gbps |
| Power Over Ethernet (PoE) Supported: | PoE |
| Pricing Type: | BTO |
| Dimensions (WxDxH): | 6.3 in x 6.3 in x 1.5 in |
| Weight: | 18.34 oz |
| Manufacturer Warranty: | Limited lifetime warranty |
| General | |
| Packaged Quantity: | 10 (specifications are for single item) |
| Device Type: | Wireless access point |
| Ruggedized Design: | Indoor |
| Built-in Devices: | GPS, GLONASS, Beidou, Galileo |
| Width: | 6.3 in |
| Depth: | 6.3 in |
| Height: | 1.5 in |
| Weight: | 18.34 oz |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 3.6 Gbps |
| Line Coding Format: | OFDM, OFDMA, BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM |
| Data Link Protocol: | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.0 LE, ZigBee |
| Spread Spectrum Method: | DSSS |
| Frequency Band: | 2.4 GHz, 5 GHz, 6 GHz |
| Performance: | Combined peak data rate: 3.6 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (6 GHz): 2.4 Gbps |
| Status Indicators: | System, status, radio |
| Features: | DFS support, Wi-Fi Multimedia (WMM) support, Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), Tri-Band, Intelligent Power Monitoring (IPM), High-Throughput (HT) support, 2x2:2 streams, Very High Throughput (VHT) support, WMM Power Save, security slot (Kensington security lock compatible), Target Wait Time (TWT), Advanced IoT Coexistence (AIC), Passpoint Release 2 |
| Encryption Algorithm: | WPA, WPA2, WPA-Enterprise, WPA3, Opportunistic Wireless Encryption (OWE), WPA2-MPSK |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6E |
| Antenna | |
| Antenna: | Internal |
| Directivity: | Omni-directional |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible: | Yes |
| Communications Technology: | Bluetooth Low Energy (LE), Zigbee |
| Expansion / Connectivity | |
| Interfaces: | 2 x 2.5 GBase-T (PoE) - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x micro-USB - Type B |
| Miscellaneous | |
| MTBF: | 62 years |
| Compliant Standards: | EN 60950, IEC 60950, UL 60950, UL 2043, FCC, EN 60601-1-2, EN 60601-1-1, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, SAE, SIG, IEC/EN 62368-1, IEEE 802.11mc, WPA, ETS 300 019 Class 3.2, ETS 300 019 Class 1.2, LVD 2014/35/EU |
| Pricing Type: | BTO |
