About the product

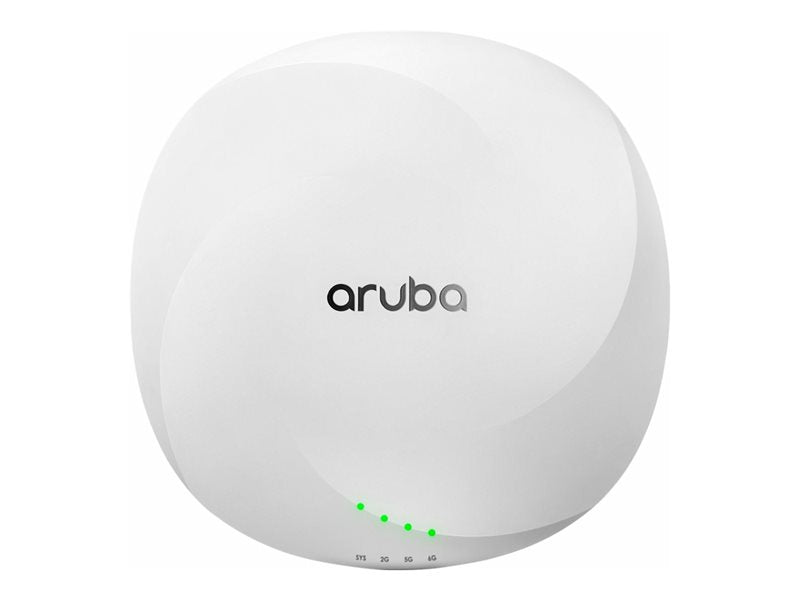

HPE Aruba Networking 630 Series Campus Access Points (APs) are designed to take advantage of the 6 GHz band using three radios for comprehensive tri-band coverage. With 6 GHz, wireless capacity is more than doubled allowing enterprises to meet the today needs and plan for future growth. The Wi-Fi 6E APs allow countries to take advantage of Wi-Fi 6E once it is approved in country trhough automated notification and easy deployment of 6 GHz regulatory tables. The 630 series delivers a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds for fixed low power indoor use. With up to seven 160 MHz channels, the 630 APs maximizes performance for low-latency, bandwidth-hungry applications. The ultra tri-band filtering eliminates interference between 5 GHz and 6 GHz and prevents gaps in channel coverage. To ensure high availability, the 630 series includes dual port hitless failover for ethernet and power.
Technical Specifications
| Primary Information | |
| Product Description: | HPE Aruba Networking AP-635 (RW) - Campus - wireless access point - Wi-Fi 6E, Bluetooth, ZigBee |
| Device Type: | Wireless access point |
| Packaged Quantity: | 5 (specifications are for single item) |
| Form Factor: | Ceiling mountable - indoor |
| Data Link Protocol: | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.0 LE, ZigBee |
| Frequency Band: | 2.4 GHz, 5 GHz, 6 GHz |
| Performance: | Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (6 GHz): 2.4 Gbps |
| Capacity: | Spatial streams: 2 ¦ Associated client devices per radio: 512 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8 |
| Included Accessories: | Mounting bracket |
| OS Required: | InstantOS 8.9.0.0, ArubaOS 8.12.0.0 |
| Power Over Ethernet (PoE) Supported: | PoE Class 5 |
| Dimensions (WxDxH): | 8.7 in x 8.7 in x 2 in |
| Weight: | 2.87 lbs |
| Manufacturer Warranty: | Limited lifetime warranty |
| General | |
| Packaged Quantity: | 5 (specifications are for single item) |
| Device Type: | Wireless access point |
| Ruggedized Design: | Indoor |
| Width: | 8.7 in |
| Depth: | 8.7 in |
| Height: | 2 in |
| Weight: | 2.87 lbs |
| Networking | |
| Form Factor: | Ceiling mountable |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 3.9 Gbps |
| Line Coding Format: | CCK, OFDM, BPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM, 4096 QAM, DSSS, QPSK |
| Data Link Protocol: | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.0 LE, ZigBee |
| Spread Spectrum Method: | OFDMA, DSSS, OFDM |
| Frequency Band: | 2.4 GHz, 5 GHz, 6 GHz |
| Performance: | Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (6 GHz): 2.4 Gbps |
| Capacity: | Spatial streams: 2 ¦ Associated client devices per radio: 512 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8 |
| Status Indicators: | System, status, radio |
| Features: | HPE SmartRate, 160MHz bandwidth support, reset button, security lock slot (cable lock sold separately), Advanced IoT Coexistence (AIC), Trusted Platform Module (TPM), automatic thermal shutdown, packet aggregation A-MPDU, packet aggregation A-MSDU, MU-MIMO technology, Target Wait Time (TWT), Very High Throughput (VHT) support, Advanced Cellular Coexistence (ACC), Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), Space Time Blocking Code (STBC), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC) |
| Encryption Algorithm: | WPA2, WPA3, WPA |
| Compliant Standards: | IEEE 802.3bz, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3az, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax |
| Antenna | |
| Antenna: | Internal |
| Directivity: | Omni-directional |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible: | Yes |
| Communications Technology: | Bluetooth Low Energy (LE), Zigbee |
| Expansion / Connectivity | |
| Interfaces: | 2 x 2.5 GBase-T ¦ 1 x USB 2.0 (host) - Type A ¦ 1 x console - micro-USB |
| Miscellaneous | |
| Included Accessories: | Mounting bracket |
| MTBF: | 520,000 hours |
| Compliant Standards: | UL 2043, FCC, ISED, RED 2014/53/EU, EMC 2014/30/EU, LVD 2014/35/EU, IEC/EN/UL 60950, IEC/EN 62368-1, EN 60601-1-1, EN60601-1-2 |
