About the product

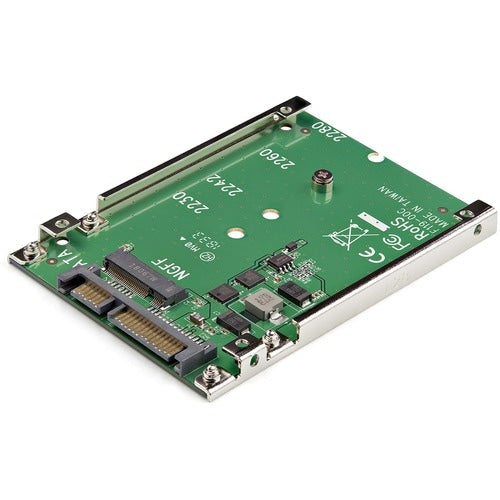

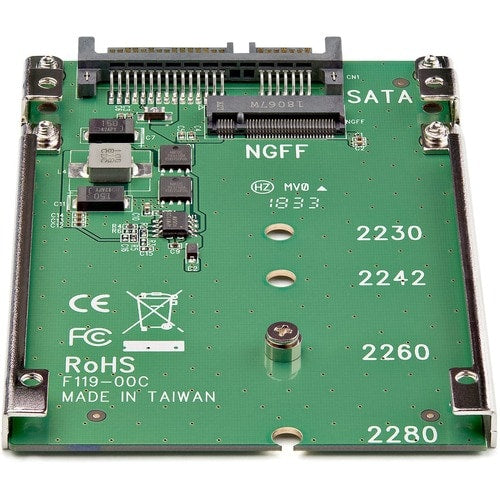

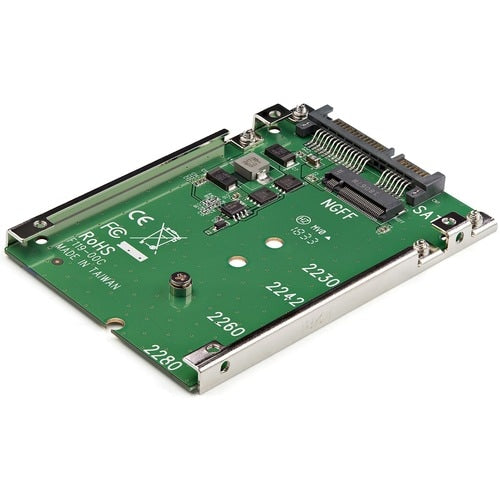

Vastly increase the performance of your system by adding the speed of an M.2 SATA SSD in any 2.5" SATA application, with this M.2 SATA SSD to 2.5in SATA adapter.
Boost System Performance
Utilize the full potential of your SATA III controller, with an M.2 SATA SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps. This M.2 SATA NGFF to SATA adapter can also save you money by reducing your power consumption over regular platter drives.
Hassle-Free Setup
This M.2 SATA to 2.5 in. SATA adapter offers a fast an easy setup with no drivers to install. The mounting hardware is also included with the M.2 SATA SSD to SATA adapter for a quick installation.
Open-Frame Design
The M.2 SATA SSD to 2.5 in. SATA converter helps protect the health of your drive with an open-frame design that maximizes heat dissipation.
SAT32M225 is backed by a StarTech.com 2-year warranty, and lifetime technical support.
More from the Manufacturer
- Open-frame steel mounting bracket
- Supports 7mm or larger 2.5" SATA bays
- Supports B key M.2 SSDs
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- 2.5in SATA form factor housing
- Supports full length M.2 SSD Solid State Drives (2230, 2242, 2260, 2280)
- Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
Technical Specifications
| Physical Characteristics | |
| Weight (Approximate) | 1.27 oz (36 g) |
| Length | 3.90" (99.06 mm) |
| Height | 0.30" (7.62 mm) |
| Width | 2.80" (71.12 mm) |
| Product Color | Green |
| Color Family | Green |
| General Information | |
| Product Type | M.2 to SATA Adapter |
| Manufacturer Part Number | SAT32M225 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | M.2 NGFF SSD to 2.5in SATA SSD Converter |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
