About the product

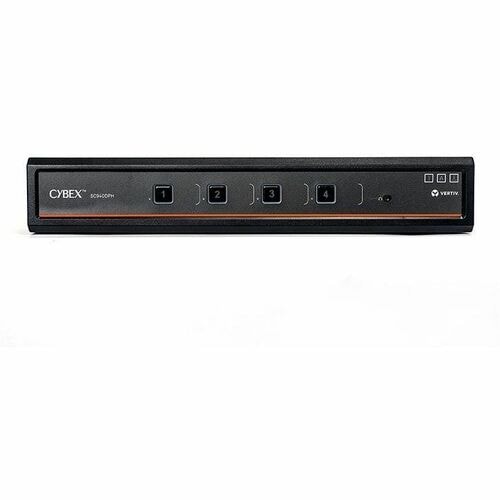

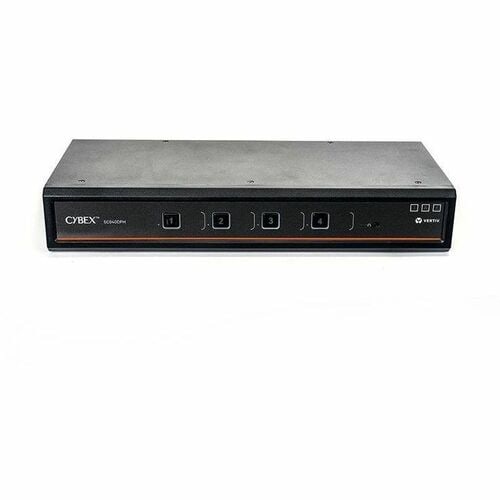

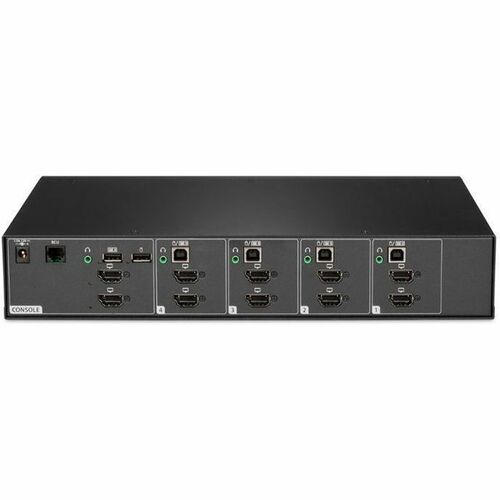

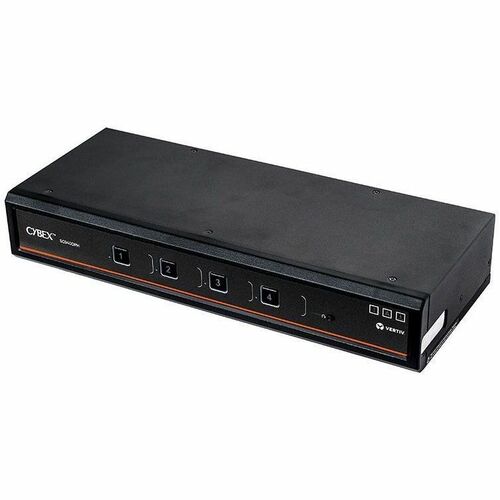

The Vertiv Avocent Cybex SC940DPH-400 secure desktop KVM switch provides secure connectivity across multiple resources. It lets users switch between computers with different security levels while preventing data leaks. Designed for security-conscious organizations, the SC940DPH-400 isolates each connected system, enforcing unidirectional data flow to safeguard sensitive information. It supports a maximum resolution of 3840 x 2160 at 60 Hz, delivering crisp, clear visuals. This KVM switch offers touchscreen support and biometric authentication for seamless, secure login on any connected computer, with built-in support for smart-card (CAC) and biometric readers. The four universal video ports (DisplayPort and HDMI) allow easy connection of up to two systems. Certified to the latest NIAP Common Criteria Protection Profile for Peripheral Sharing Switch (version 4.0), the SC940DPH-400 also features active intrusion detection and tamper-evident labels to alert users of unauthorized access.
- NIAP 4.0 Certified: Security: Secure 4-port KVM with always-on anti-tampering, NIAP 4.0 certified.
- Biometric Support: Authenticate on any computer with built-in Smart-Card and biometric support
- Versatile Video Support: Supports DP, HDMI, and DVI-I up to 3840 x 2160 resolution for HD visuals.
- Zero Delay Switching: Instant mouse and keyboard switching with emulation for lag-free transitions.
- Peripheral Isolation: Combines keyboard, mouse, and display into one setup for a clutter-free space.
Technical Specifications
| Power Description | |
| Input Voltage Range | 100VAC-240VAC |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Graphic Mode | 4K |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | NIAP 4.0 Certified |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 3.70 lb (1678.29 g) |
| Form Factor | Desktop |
| Rack Height | 1U |
| Height | 2.20" (55.88 mm) |
| Width | 13.70" (347.98 mm) |
| Depth | 5" (127 mm) |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 10 ft (3048 mm) |
| KVM Technology | Digital & Analog |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 0 |
| Device Type | Secure KVM |
| General Information | |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | SC940DPH-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | SC940 |
| Product Name | Cybex SC900 Secure Desktop KVM Switch, Dual Head Monitor, 4 Port, Common Access Card, NIAP Version 4.0, TAA Compliant (SC940DPH-400) |
| Product Line | Cybex |
| Product Series | 900 |
| Brand Name | Vertiv AVOCENT |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| DVI | Yes |
| VGA | No |
| Number of Network (RJ-45) Ports | 0 |
| Network (RJ-45) | No |
| Number of USB Ports | 6 |
| DisplayPort | Yes |
| Management Port | No |
| PS/2 Port | No |
| Number of PS/2 Ports | 4 |
| Number of VGA Ports | 0 |
| Number of DisplayPorts | 10 |
| Number of DVI Ports | 0 |
