Vertiv
4P SC KM DP/H UNIV
4P SC KM DP/H UNIV
VPNSCKM140PP4-400 SKU:645447DIN UPC:636430089683
- NIAP 4.0 Certified: Security: Secure 4-port KVM with always-on anti-tampering, NIAP 4.0 certified.
- Enhanced Usability: Cursor Navigation Switching enables users seamless control between systems.
- Full USB Filtering: Blocks unauthorized USB devices, allowing only keyboards and mice for security.
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details



Recently Viewed
4P SC KM DP/H UNIV
Product information summary

About the product

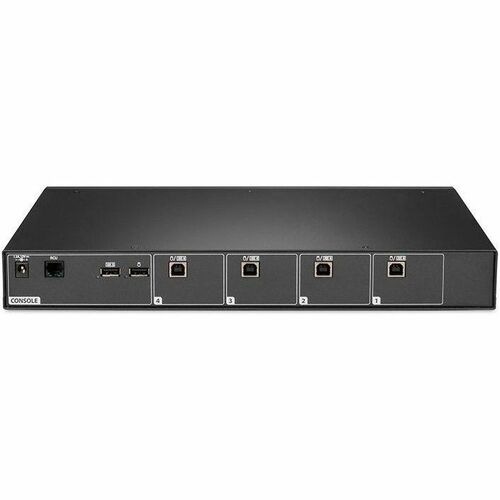

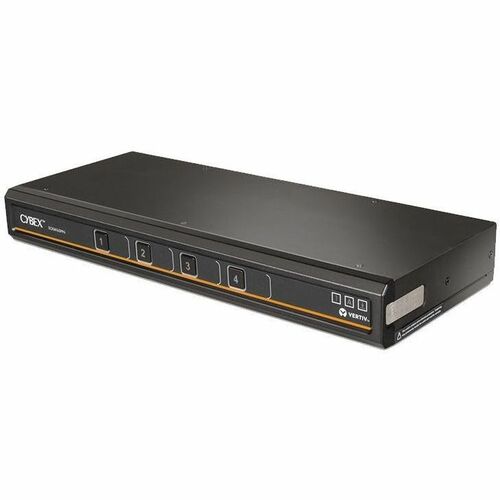

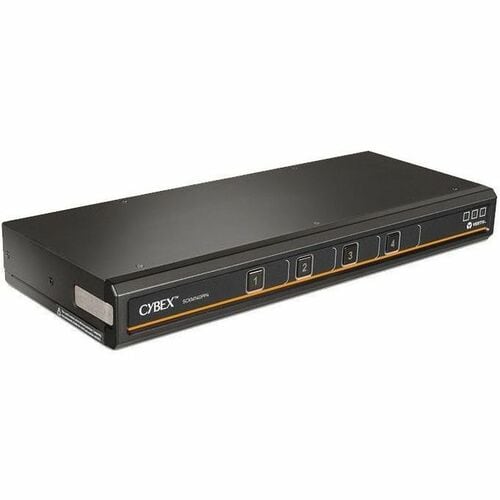

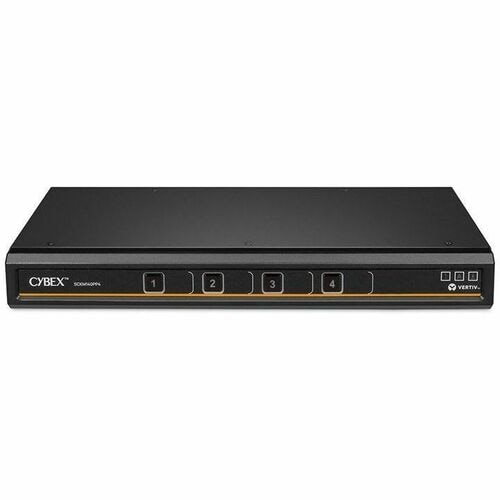

The Vertiv Cybex SCKM140PP4-400 Secure Desktop KVM is a high-performance solution designed to meet the U.S. government's stringent security requirements. Certified to the NIAP/Common Criteria Protection Profile for Peripheral Sharing Switch version 4.0, it offers advanced isolation between computers and shared peripherals, which helps ensure maximum security and data integrity. With Cursor Navigation Switching, users can seamlessly switch control between systems by simply moving the cursor from one display to another, streamlining multitasking. The SCKM140PP4-400 allows easy switching of USB peripherals (keyboard and mouse) independently from other devices, providing flexible control. Full USB device filtering supports keyboard and mouse use only. The mouse and keyboard switching feature uses emulation, providing zero delay between connected systems. Features a wide AC input voltage range of 100-240V, making it compatible with global power sources. Backed by a 3-year warranty.
- NIAP 4.0 Certified: Security: Secure 4-port KVM with always-on anti-tampering, NIAP 4.0 certified.
- Enhanced Usability: Cursor Navigation Switching enables users seamless control between systems.
- Full USB Filtering: Blocks unauthorized USB devices, allowing only keyboards and mice for security.
- Zero Delay Switching: Instant mouse and keyboard switching with emulation for lag-free transitions.
- Peripheral Isolation: Combines keyboard, mouse, and display into one setup for a clutter-free space.
Technical Specifications
Video | |
Maximum Video Resolution | 3840 x 2160 |
Environmental Conditions | |
Minimum Operating Temperature | 32°F (0°C) |
Maximum Operating Temperature | 104°F (40°C) |
Power Description | |
Input Current | 2.50 A |
Input Voltage Range | 100 - 240 VCA |
Miscellaneous | |
Certifications & Standards | NIAP 4.0 Certified |
Country of Origin | United States |
TAA Compliant | Yes |
Physical Characteristics | |
Weight (Approximate) | 3 lb (1360.78 g) |
Form Factor | Desktop |
Height | 1" (25.40 mm) |
Width | 13.70" (347.98 mm) |
Depth | 5" (127 mm) |
Interfaces/Ports | |
USB | Yes |
Number of USB Ports | 6 |
USB Standard | USB 2.0 |
PS/2 Port | Yes |
Number of PS/2 Ports | 4 |
USB 2.0 | Yes |
Technical Information | |
Connectivity Technology | Wired |
Features | LED Indicator |
KVM Technology | Digital & Analog |
Number of Computers Supported | 4 |
Number of Local Users Supported | 1 |
Device Type | Secure KVM |
General Information | |
Product Type | KM Switchbox |
Manufacturer Part Number | SCKM140PP4-400 |
Manufacturer Website Address | http://www.vertiv.com/ |
Packaged Quantity | 1 |
Manufacturer | Vertiv |
Product Model | SCKM100 |
Product Name | Cybex SCKM100 Secure Desktop KVM Switch, 4 Port, Dedicated Peripheral Port, NIAP Version 4.0 Certified, TAA Compliant (SCKM140PP4-400) |
Product Line | Cybex |
Product Series | 100 |
Brand Name | Vertiv AVOCENT |
