About the product

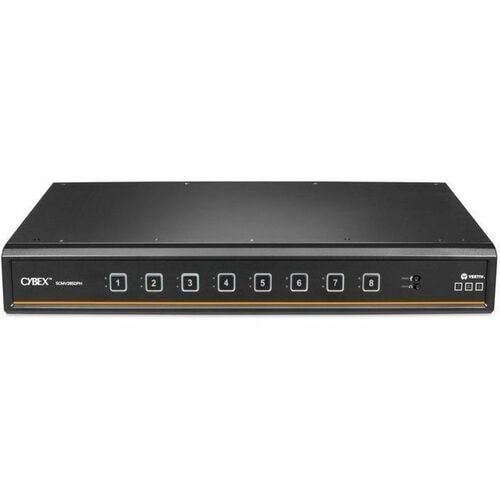

The Vertiv Cybex SCMV285DPH-400 Secure MultiViewer KVM continues to provide the KVM solution required for accessing classified and non-classified data. Through an all-new universal video port connector, this MultiViewer KVM supports a mixture of DP, HDMI, and DVI-D video connections without needing adapters. Can be used in either a single or dual display scenario with up to 16 computers on a single screen and features such as tiling, windowing, and touchscreen functionality, including tile, scale, picture-in-picture (PIP), and custom layouts. Comes with Cursor Navigation Switching (CNS), the Cybex MultiViewer KVM enables seamless keyboard and mouse transitions across window borders using a guard key. Supporting HDMI, DP, and DVI-D, it provides versatile display choices. Additionally, the Vertiv Cybex SCMV285DPH-400 Secure MultiViewer KVM features a keyboard lock status indicator on eight ports and allows users to monitor multiple critical systems simultaneously.
- Multi-System Access: Control multiple isolated computers on one display for enhanced efficiency.
- Versatile Video Support: Supports DP, HDMI, and DVI-I up to 3840 x 2160 resolution for HD visuals.
- Efficient Device Control: Keyboard lock status on eight ports for seamless control and management.
- Advanced Security: Tamper-evident holographic labels protect system from unauthorized interference.
- Biometric Support: Authenticate on any computer with built-in Smart-Card and biometric support
Technical Specifications
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Graphic Mode | 4K |
| Power Description | |
| Input Voltage | 220 V AC |
| 110 V AC | |
| Input Voltage Range | 100V AC to 240V AC |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | NIAP Version 4.0 Certified |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 3.70 lb (1678.29 g) |
| Form Factor | Desktop |
| Height | 2.60" (66.04 mm) |
| Width | 17.40" (441.96 mm) |
| Depth | 7.20" (182.88 mm) |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 10 ft (3048 mm) |
| KVM Technology | Digital & Analog |
| Number of Computers Supported | 16 |
| Number of Local Users Supported | 1 |
| Device Type | Secure KVM |
| General Information | |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | SCMV285DPH-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | SCMV200 |
| Product Name | Cybex Secure MultiViewer KVM Switch, 8 Port, Cursor Navigation Switching, NIAP Version 4.0 Certified, TAA Compliant (SCMV285DPH-400) |
| Product Line | Cybex |
| Product Series | 200 |
| Brand Name | Vertiv AVOCENT |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 10 |
| DVI | Yes |
| VGA | No |
| Network (RJ-45) | No |
| Number of USB Ports | 5 |
| DisplayPort | Yes |
| PS/2 Port | Yes |
| Number of PS/2 Ports | 8 |
| Number of VGA Ports | 0 |
| Number of DVI Ports | 0 |
