About the product

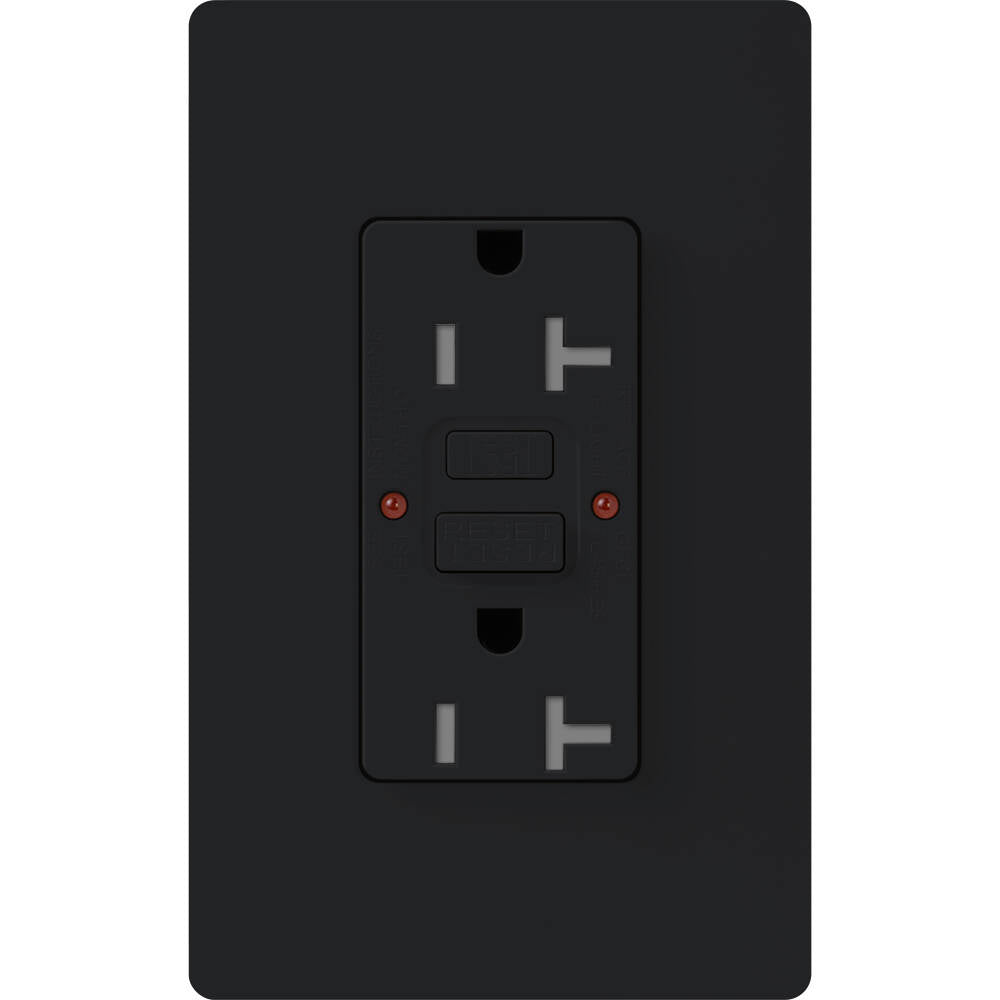

Lutron Claro 20A Tamper Resistant GFCI Receptacle Midnight Overview
Built with added security measures to protect the whole family, the Lutron Claro SCR-20-GFST features tamper-resistant technology that protects you from shocks and improper insertion. As a UL and CSA-listed item, you can rest assured this product is of the highest quality, promising quick installation and an easy-to-clean finish to boot.
- 20-amp, 125-volt receptacle
- Made from durable, thermoplastic materials
- Comes in a variety of sleek colors to coordinate with any room or interior decor theme
- Built-in tamper-resistant mechanism
- Wall plate not included
Lutron Tamper Resistant Receptacle Features
- Matching Wallplate Sold Separately
- Continuous self-test functionality – disconnects power to receptacle if critical components are damaged and GFCI protection is lost – providing “continuous self-testing” that initiates within 2.5 seconds and is a continuous cycle every 30 seconds or less.
- Three provisions for providing protection:
- Continuous electronic sensing, testing, and evaluation utilizing diagnostic software located on the printed circuit board.
- The traditional testing mode by manually operating the “test and reset” buttons utilizing a supervisory circuit as specified in UL 943 section 5.15.
- Auto-sensing mode for an immediate interruption for a ground fault condition for Class A protection (4 – 6 mA).
- Manual Test – this design incorporates a full system test function. The GFCI, when manually tested, induces a simulated ground fault leakage current to the printed circuit board. This in turn causes the mechanical system to react based on the action of the solenoid. The entire mechanical and electronic GFCI system is reviewed for functionality.
- Reverse wire safety feature – if wired incorrectly there will be no power to the face or to downstream receptacles for added safety.
- Clear visual indication of GFCI status — LED indicating lights:
- Green LED (power to the device)
- Red LED (trip condition/ground fault condition)
- Flashing Red LED (end of life)
- Permanently installed internal tamper-resistant shutter mechanism capable of resisting insertion of foreign elements into the device.
- Internal back wiring clamp and guide pocket — quick and dependable termination.
- Receptacle face compatible with NEMA designer and NovaT* designer-opening wallplates.
- Compliant with NEC 406.12 and NEC 517-18(c).
Lutron Tamper Resistant Receptacle Specifications
- Item #: LUT-SCR-20-GFST-MN
- Brand: Lutron
- MPN: SCR-20-GFST-MN
- UOM: EA
- UPC: 784276158800
- Origin: CN
- Condition: New
- Amperage: 20 Amp
- Voltage: 125 Volt
- Color: Midnight
Technical Specifications
Lutron Claro 20A Tamper Resistant GFCI Receptacle Midnight Overview
Built with added security measures to protect the whole family, the Lutron Claro SCR-20-GFST features tamper-resistant technology that protects you from shocks and improper insertion. As a UL and CSA-listed item, you can rest assured this product is of the highest quality, promising quick installation and an easy-to-clean finish to boot.
- 20-amp, 125-volt receptacle
- Made from durable, thermoplastic materials
- Comes in a variety of sleek colors to coordinate with any room or interior decor theme
- Built-in tamper-resistant mechanism
- Wall plate not included
Lutron Tamper Resistant Receptacle Features
- Matching Wallplate Sold Separately
- Continuous self-test functionality – disconnects power to receptacle if critical components are damaged and GFCI protection is lost – providing “continuous self-testing” that initiates within 2.5 seconds and is a continuous cycle every 30 seconds or less.
- Three provisions for providing protection:
- Continuous electronic sensing, testing, and evaluation utilizing diagnostic software located on the printed circuit board.
- The traditional testing mode by manually operating the “test and reset” buttons utilizing a supervisory circuit as specified in UL 943 section 5.15.
- Auto-sensing mode for an immediate interruption for a ground fault condition for Class A protection (4 – 6 mA).
- Manual Test – this design incorporates a full system test function. The GFCI, when manually tested, induces a simulated ground fault leakage current to the printed circuit board. This in turn causes the mechanical system to react based on the action of the solenoid. The entire mechanical and electronic GFCI system is reviewed for functionality.
- Reverse wire safety feature – if wired incorrectly there will be no power to the face or to downstream receptacles for added safety.
- Clear visual indication of GFCI status — LED indicating lights:
- Green LED (power to the device)
- Red LED (trip condition/ground fault condition)
- Flashing Red LED (end of life)
- Permanently installed internal tamper-resistant shutter mechanism capable of resisting insertion of foreign elements into the device.
- Internal back wiring clamp and guide pocket — quick and dependable termination.
- Receptacle face compatible with NEMA designer and NovaT* designer-opening wallplates.
- Compliant with NEC 406.12 and NEC 517-18(c).
Lutron Tamper Resistant Receptacle Specifications
- Item #: LUT-SCR-20-GFST-MN
- Brand: Lutron
- MPN: SCR-20-GFST-MN
- UOM: EA
- UPC: 784276158800
- Origin: CN
- Condition: New
- Amperage: 20 Amp
- Voltage: 125 Volt
- Color: Midnight
