About the product

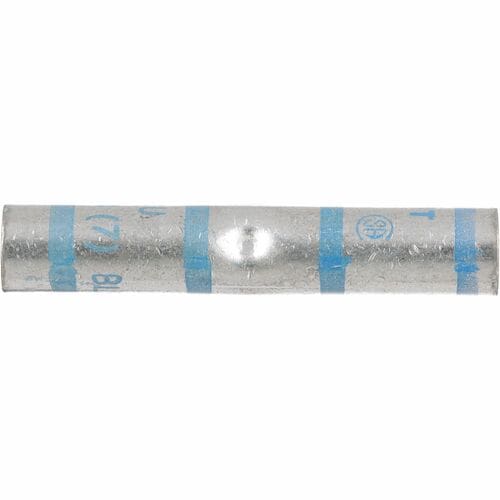

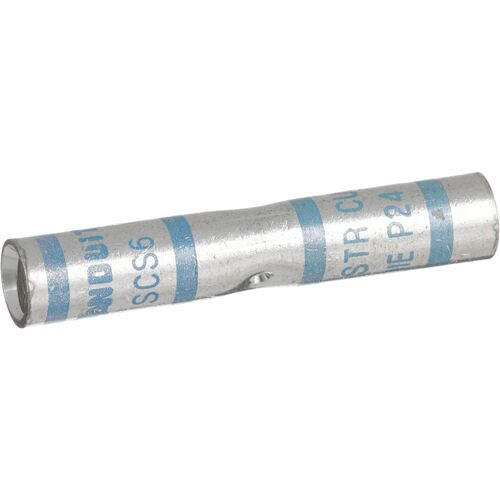

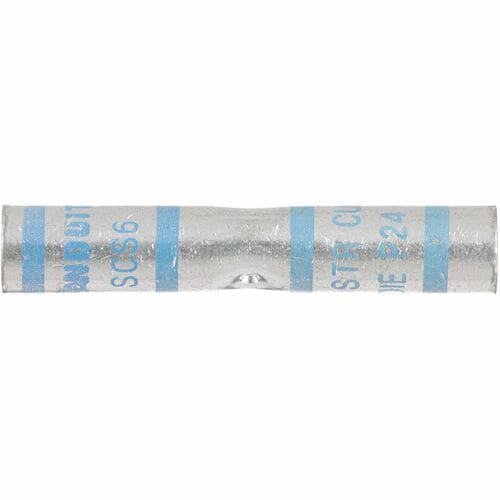

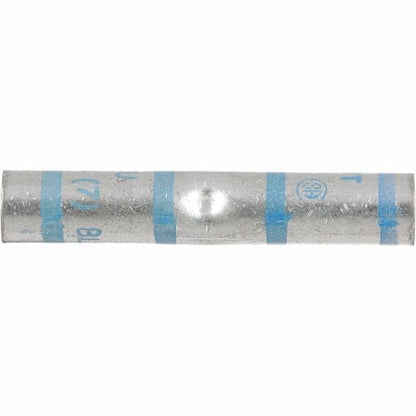

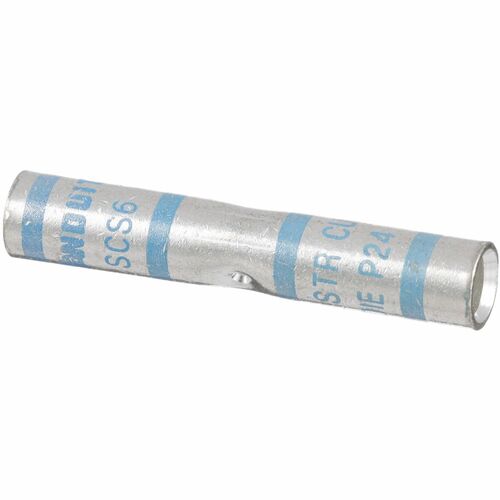

The SCS6-L Copper Compression Lug, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Technical Specifications
| Physical Characteristics | |
| Height | 0.30" (7.62 mm) |
| Width | 0.30" (7.62 mm) |
| Depth | 1.70" (43.18 mm) |
| Product Color | Blue |
| Color Family | Blue |
| Product Material | Tin Plated Copper |
| Copper | |
| General Information | |
| Product Type | Wire Splice |
| Manufacturer Part Number | SCS6L |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 50 |
| Manufacturer | PANDUIT CORP |
| Product Name | Pan-Lug SCS6-L Comp. Splice, Standard, Tin Plt Copper, PK50 |
| Product Line | Pan-Lug |
| Brand Name | Panduit |
