About the product

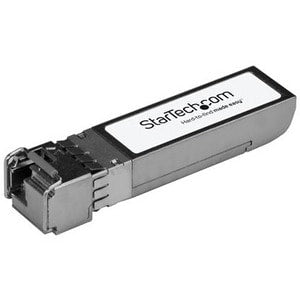

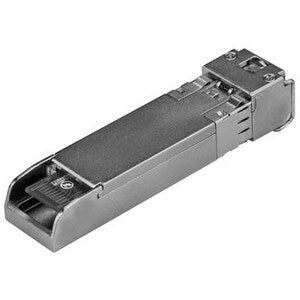

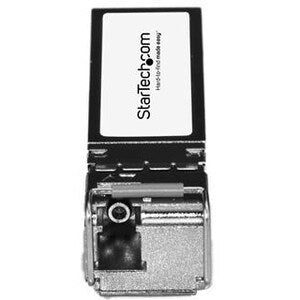

The SFP-10G-BX-U-20-ST is a Cisco SFP-10G-BX-D-40 compatible downstream fiber SFP transceiver which pairs with StarTech.com's SFP-10G-BX-U-40-ST. They are designed, programmed and tested to work with 10GBase-BX compatible Cisco switches and routers. The SFP+ transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
- Wavelength: 1330nmTx/1270nmRx
- Maximum Data Transfer Rate: 10Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 40 km (24.8 mi)
- Power Consumption: < 1.6W
- DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
- 100% CISCO SFP-10G-BX-U-20 COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with Cisco switches like ASR9000, ASR1000, NCS5500, C3850, NCS540 and others
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 10GBASE-BX
- 10Gbps
- 10G Bi-Directional Upstream
- Single Mode (SMF)
Technical Specifications
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | China |
| Technical Information | |
| Application/Usage | Optical Network |
| Data Networking | |
| Interfaces/Ports | |
| Interfaces/Ports Details | 1 x LC 10GBase-BX Network |
| Connector Type | LC |
| Total Number of Ports | 1 |
| Media & Performance | |
| Network Technology | 10GBase-BX |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| General Information | |
| Product Type | SFP+ |
| Manufacturer Part Number | SFP-10G-BX-U-20-ST |
| Manufacturer Website Address | http://www.startech.com |
| Manufacturer | StarTech.com |
| Product Name | Cisco SFP-10G-BX-U-20 Compatible SFP+ Transceiver Module - 10GBase-BX |
| Brand Name | StarTech.com |
