Switches & Hubs

Expected delivery 3 to 7 business days (exceptions applied)

Amer Networks

5PORT GIG 4 POE+ RANGE EXTEND CPNT

5PORT GIG 4 POE+ RANGE EXTEND CPNT

Regular price $92.35 CAD
Regular price $103.43 CAD Sale price $92.35 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.
Amer Networks Amer 5 port Gigabit with 4 port PoE+ Range Extend Unmanaged Switch - 5 Ports - Gigabit Ethernet - 1000Base-T - 2 Layer Supported - Twisted Pair - Desktop - 3 Year Limited Warranty

VPN:SG4P1TE SKU:391503NDN UPC:650177303789

  • 5 port Gigabit with 4 port PoE+ Range Extend Unmanaged Switch
  • Compliant with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE 802.3af, IEEE 802.3at
  • PoE power budget 60W

Volume discount available - Ask for quote..

View full details

Recently Viewed

5PORT GIG 4 POE+ RANGE EXTEND CPNT

Product information summary

5PORT GIG 4 POE+ RANGE EXTEND CPNT

About the product

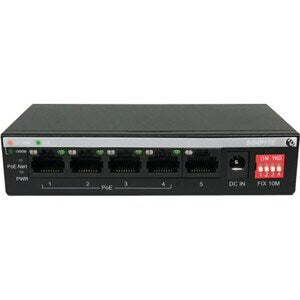

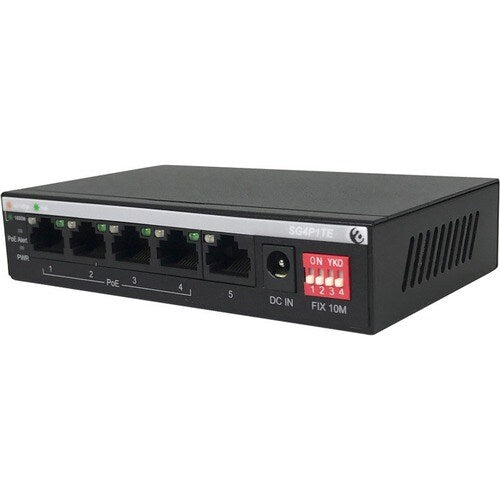

The SG4P1TE is a 5 port Gigabit 10/100/1000Base-T Ethernet unmanaged switch supporting 4 high power 802.3af/802.3at PoE+ ports with a total PoE budget of 60W. Each PoE+ port can be controlled manually to support either 10/100/1000Mbps at the standard Ethernet distance of 100m or set to 10Mbps to support range extension to a maximum of 180m (range dependent on cable quality). The compact size of the SG4P1TE makes it ideal for users with limited space. It is an excellent solution for network devices that require high-power such as indoor and outdoor surveillance equipment and access points.

Key Features and Benefits:

  • Compliant with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE 802.3af, IEEE 802.3at
  • Support Link-on cable length power saving and link-down power saving
  • N-way auto-negotiation
  • Alert system notification when PoE Power passes 50w and is close to the power budget
  • Dip switch to place selceted port into Extended range mode at 10mbps
  • Fanless Design
  • 5 port Gigabit with 4 port PoE+ Range Extend Unmanaged Switch
  • Compliant with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE 802.3af, IEEE 802.3at
  • PoE power budget 60W
  • Support Link-on cable length power saving and link-down power saving
  • N-way auto-negotiation
  • Alert system notification when PoE Power passes 50w and is close to the power budget
  • Dip switch to place selceted port into Extended range mode at 10mbps
  • Fanless Design

Technical Specifications

Management & Protocols
ManageableNo
Network & Communication
Layer Supported2
Power Description
Power SourcePower Adapter
Redundant Power Supply SupportedNo
Media & Performance
Network Technology1000Base-T
Ethernet TechnologyGigabit Ethernet
Media Type SupportedTwisted Pair
Miscellaneous
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Physical Characteristics
Form FactorDesktop
Length4.76" (120.90 mm)
Height1.02" (25.91 mm)
Width2.95" (74.93 mm)
Interfaces/Ports
ModularNo
Uplink PortYes
Stack PortNo
Total Number of Network Ports5
Port/Expansion Slot Details4 x Gigabit Ethernet Network
1 x Gigabit Ethernet Uplink
General Information
Product TypeEthernet Switch
Manufacturer Part NumberSG4P1TE
Manufacturer Website Addresshttp://www.amermounts.com
ManufacturerAmer Networks, Inc
Product ModelSG4P1TE
Product Name5 port Gigabit with 4 port PoE+ Range Extend Unmanaged Switch
Brand NameAmer

Product compare

Product warranty

Standard manufacturer warranty as applicable

Return policy

15 days return in original condition.
