About the product
Versatile PoE Port
Featuring 8* 10/100/1000Mbps PoE ports which support IEEE802.3af/at standard with 2 Gigabit RJ45 and 1* 1.25Gbps SFP Uplink ports. The PoE switch provides maximun power budget of 96W and 30W for single PoE ports sepectively, allowing users to have several different Networking products configured.
1 Gigabit SFP Uplink Port
With 1 SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network's backbone, providing more than enough bandwidth and stability for ultra high speed data transferring. The SFP can transmit the data with maximum 100Km distance with more economic solution.
Surge Protection Design
Reaching 6KV surge protection, the PoE ports capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering more reliable performance even in some harsh environments.

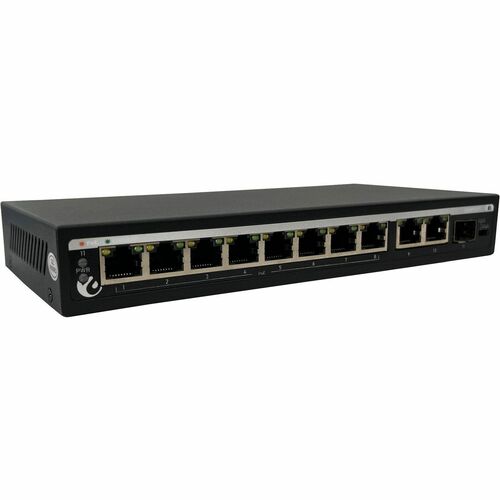

- Ports: Provide 8*10/100/1000Mbps PoE ports and 2 *Gigabit RJ45 and 1 Gigabit SFP Uplink
- PoE Standard: IEEE802.3af/at Power over Ethernet (PoE) Compliant
- Total Power: Total power budget of 96W and 30W for all singe PoE ports
- Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX
- Wide Application: Designed for WiFi AP and IP Security camera VoIP etc
- Surge protection: Protect the device from lighting surges and others electrical hazards
- Considerate Design: Exquisite compact size with fanless design
- Easy to use: Plug and play, No configuration required
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| Technical Information | |
| Features | Fanless |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1.0 |
| Media & Performance | |
| Network Technology | 1000Base-X |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Physical Characteristics | |
| Weight (Approximate) | 2.87 lb (1300 g) |
| Form Factor | Compact |
| Height | 1.18" (30 mm) |
| Width | 8.27" (210 mm) |
| Depth | 3.86" (98 mm) |
| Miscellaneous | |
| Application/Usage | IP Camera |
| IP Phone | |
| Security Camera | |
| VoIP Phone | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | SG8P2GF |
| Manufacturer Website Address | http://www.amermounts.com |
| Manufacturer | Amer Networks, Inc |
| Product Model | SG8P2GF |
| Product Name | SG8P2GF Ethernet Switch |
| Brand Name | Amer |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Expansion Slot |
| 2 x Gigabit Ethernet PoE | |
| 8 x Gigabit Ethernet Network Port | |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 96 W |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3z |
| IEEE 802.3x | |
| IEEE 802.3u | |
| IEEE 802.3i | |
| IEEE 802.3az | |
| IEEE 802.3at | |
| IEEE 802.3af | |
| IEEE 802.3ab |
