About the product

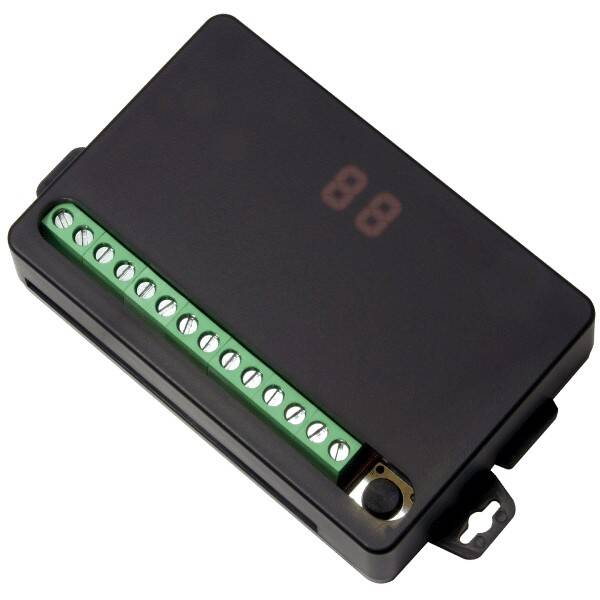

The Seco-Larm ENFORCER 4-channel RF receiver is a completely flexible and compact way to control a wide variety of devices with independently controlled output modes. Control gates, garage doors, lighting systems, fans and heating systems, and more with a range up to 500 metres away. Compatible with all ENFORCER 315MHz transmitters. With 60 transmitter button codes per channel, you can fine-tune the operation of your wireless system. Fitted in a sleek semi-transparent case with an alphanumeric display, you can assign and learn transmitters, clear memory, check RF reception and alter relay output modes directly. Pushbutton programming eliminates the need to cut jumpers.
SK-910RD4 Specs:
- Operating frequency: 315MHz
- Memory capacity: 60 per channel
- Operating voltage: 10~24 VAC/VDC
- Operating current: 16mA@12VDC, 12mA@24VDC
- Active: 60mA@12VDC, 50mA@24VDC (both per channel)
- Relay output:
- Type: Independent, sequence, access control
- Modes: 1~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity)
- Relay contacts:
- Number: 4
- Rating: Form C 10A@14VDC
- Connectors: Screw terminals, +, -, with NO/NC/COM per relay
- Digital display: 2-digit, 7-segment LED
- Operating humidity: 5~95%, non-condensing
- Operating temperature: 32°~167° F (0°~75° C)
- Dimensions: 4-3/16?x7/8?x2-3/8’’ (107x23x60 mm)
Technical Specifications
The Seco-Larm ENFORCER 4-channel RF receiver is a completely flexible and compact way to control a wide variety of devices with independently controlled output modes. Control gates, garage doors, lighting systems, fans and heating systems, and more with a range up to 500 metres away. Compatible with all ENFORCER 315MHz transmitters. With 60 transmitter button codes per channel, you can fine-tune the operation of your wireless system. Fitted in a sleek semi-transparent case with an alphanumeric display, you can assign and learn transmitters, clear memory, check RF reception and alter relay output modes directly. Pushbutton programming eliminates the need to cut jumpers.
SK-910RD4 Specs:
- Operating frequency: 315MHz
- Memory capacity: 60 per channel
- Operating voltage: 10~24 VAC/VDC
- Operating current: 16mA@12VDC, 12mA@24VDC
- Active: 60mA@12VDC, 50mA@24VDC (both per channel)
- Relay output:
- Type: Independent, sequence, access control
- Modes: 1~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity)
- Relay contacts:
- Number: 4
- Rating: Form C 10A@14VDC
- Connectors: Screw terminals, +, -, with NO/NC/COM per relay
- Digital display: 2-digit, 7-segment LED
- Operating humidity: 5~95%, non-condensing
- Operating temperature: 32°~167° F (0°~75° C)
- Dimensions: 4-3/16?x7/8?x2-3/8’’ (107x23x60 mm)
