About the product
Product overview

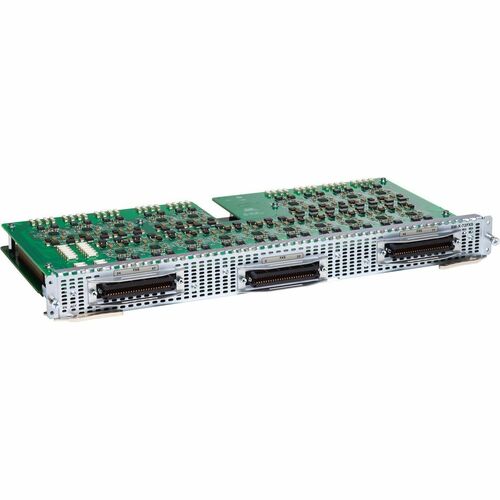

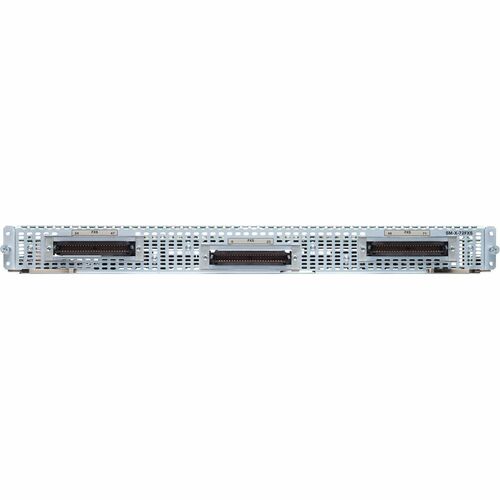

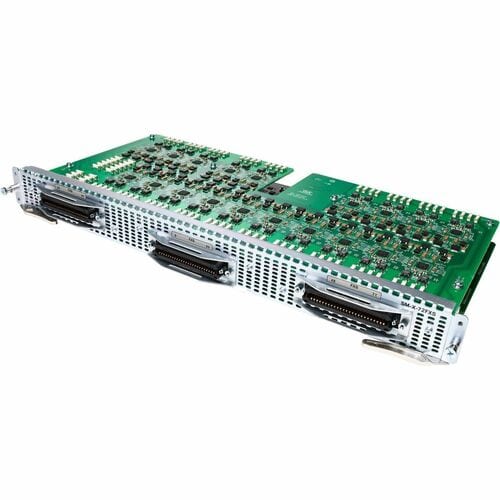

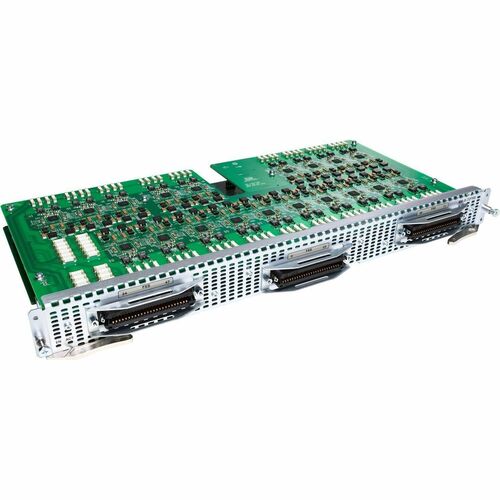

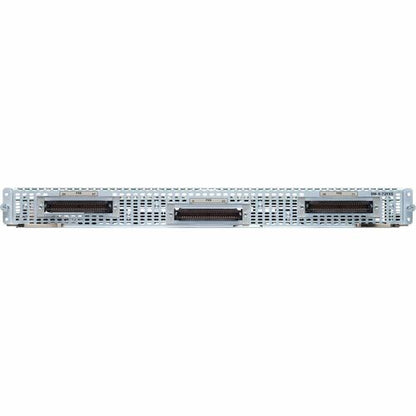

The Cisco High-Density Analog Voice and Fax Service Modules provide enterprises, managed services providers, and service providers the ability to directly connect public-switched telephone networks (PSTNs) and existing telephony equipment to Cisco 4000 Series Integrated Services Routers (ISRs). These fixed-port (FXS and FXO) modules provide Dual-Tone Multifrequency (DTMF) detection, voice compression and decompression, call progress tone generation, Voice Activity Detection (VAD), echo cancellation, and adaptive jitter buffering.
Product details
The FXO port is used to connect to PBX or key systems, or to provide off-premises connections to the PSTN. It supports battery reversal detection and caller ID. The FXO port is also used to connect to analog Centralized Automatic Message Accounting (CAMA) trunks to provide dedicated E-911 service (in North America only).
Technical Specifications
| Miscellaneous | |
| Compatibility | Cisco 4000 Series Integrated Services Routers
|
| Technical Information | |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Connector Type | FXS |
| Total Number of Ports | 72 |
| Physical Characteristics | |
| Weight (Approximate) | 4.94 lb (2240.75 g) |
| Height | 1.58" (40.13 mm) |
| Width | 15.57" (395.48 mm) |
| Depth | 7.57" (192.28 mm) |
| Product Color | Silver |
| General Information | |
| Product Type | Service Module |
| Manufacturer Part Number | SM-X-72FXS-RF |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | Service Module |
| Brand Name | Cisco |
| Product Condition | Refurbished |
