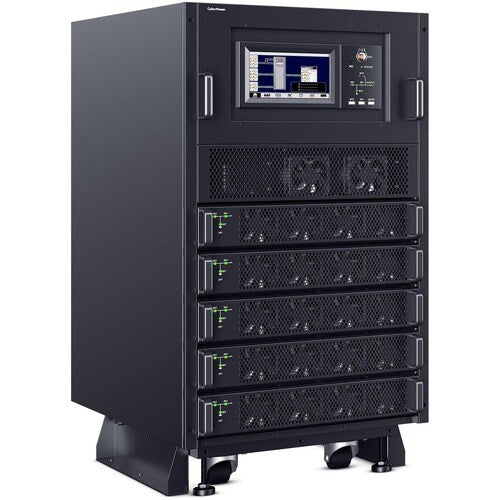

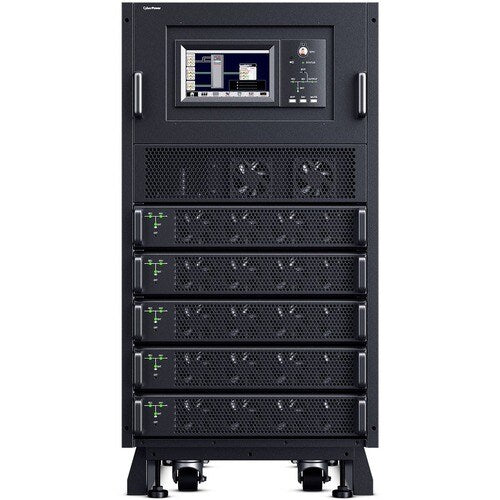

Cyber Power CyberPower SM040KAMFA 3-Phase Modular Smart App Online UPS

Name: Cyber Power CyberPower SM040KAMFA 3-Phase Modular Smart App Online UPS
Brand: Cyber Power
SKU: RSC364148
Price: 15525.70 CAD
Availability: OutOfStock

$15,525.70 CAD

~~$17,388.78 CAD~~ $15,525.70 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Cyber Power CyberPower SM040KAMFA 3-Phase Modular Smart App Online UPS System - 19U Modular - AVR - 120 V AC, 230 V AC Input - 120 V AC, 127 V AC, 208 V AC, 220 V AC Output - 1 x Hardwired - Serial Port

VPN:SM040KAMFA SKU:RSC364148 UPC:

Please see below description

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Cyber Power CyberPower SM040KAMFA 3-Phase Modular Smart App Online UPS

About the product

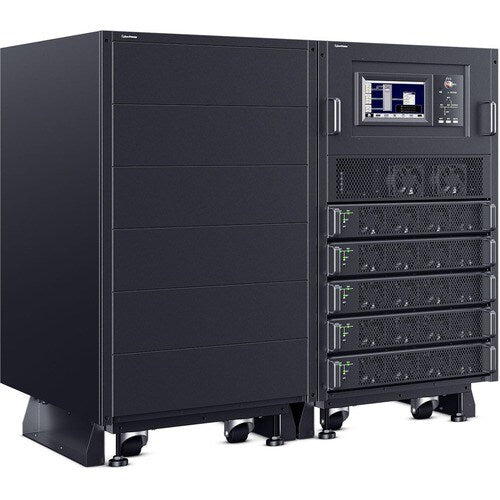

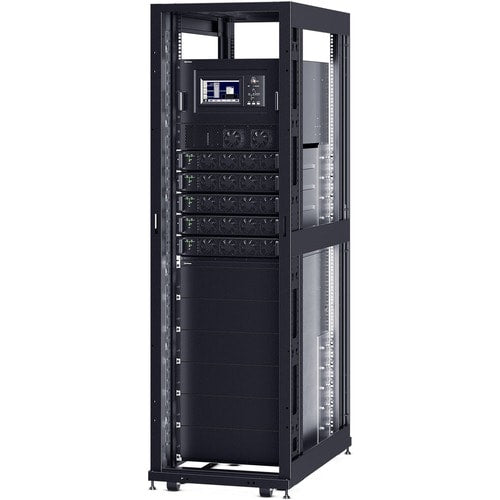

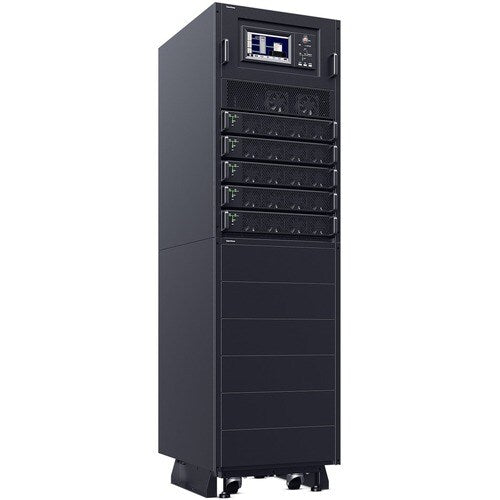

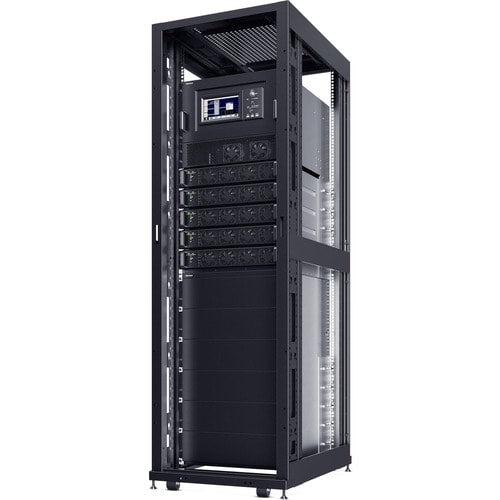

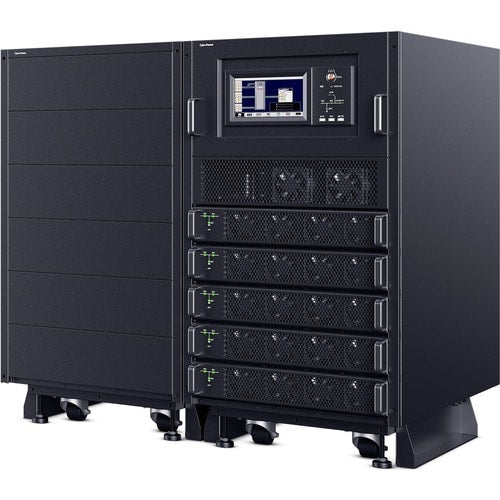

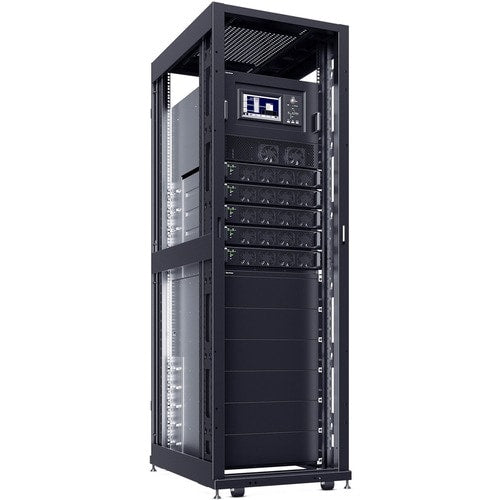

The CyberPower SM040KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility, space savings, and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy, the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack. The high-density, scalable 10kVA/10kW power modules are 2U in height, saving space while providing more options for capacity expansion.

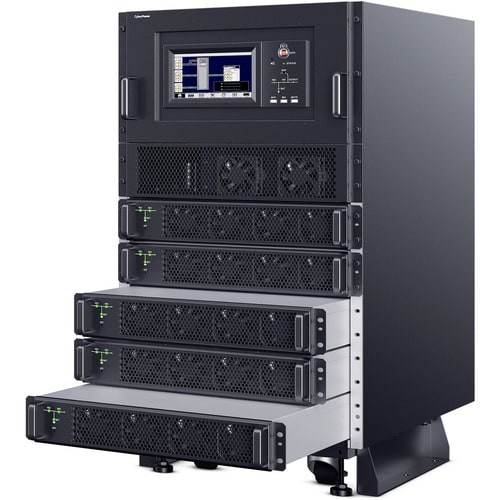

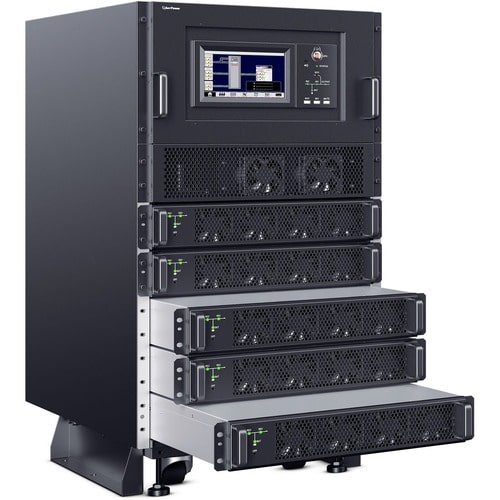

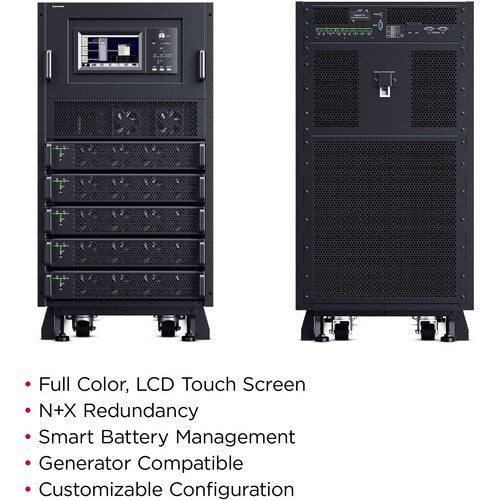

The SM040KAMFA features double-conversion topology for seamless power protection and a pre-installed RMCARD205 for remote management. The user-friendly 7" color touchscreen displays key status indicators at-a-glance. Three-stage Smart Battery Management (SBM) equalizes battery voltages and reduces excessive heat to extend battery life. Plus, hot-swappable power modules, battery and, bypass allow for rapid replacement and minimal impact to system operation. Ideal for high-end data centers, the SM040KAMFA 3-Phase Modular UPS System assures reliable, high-quality AC power and includes a One-Year Limited Warranty.

Technical Specifications

Controls/Indicators
Status Indicators	LCD: Multifunction LCD LED Indicators: Rectifier
Management
Network Management	SNMP/HTTP Remote Monitoring
Battery Information
Battery Characteristics	Hot-swappable
Replaceable Battery	Yes
DC System Voltage	120 V DC
Number of External Battery Cabinets	12
Environmental Conditions
Thermal Dissipation	11430.20 BTU/h
Maximum Operating Temperature	104°F (40°C)
Maximum Operating Elevation	10000 ft (3048000 mm)
Sound Emission (A-Weighted)	56 dB(A)
Interfaces/Ports
Serial Port	Yes
Parallel Port	Yes
EPO Port	Yes
USB (HID Compliant) Port	Yes
Miscellaneous
Additional Information	Dual Power Inputs: Yes Hot Swappable Bypass Module: Yes - Qualified Personnel Only Hot Swappable Power Module: Yes - Qualified Personnel Only Module Maximum Capacity: 5 Parallel Expansion (Max. Units): 2 Power Module Redundancy Capability: Yes Battery Bus Voltage: Nominal: ±120VDC, one-side range: 120VDC - 132VDC Battery Cabinet: Modular External Battery Charger Voltage Tolerance: ?1% Float Hot Swappable: Yes Hot Swappable Battery Module: Yes - Qualified Personnel Only Recharge Power: Default 10% x UPS Power Recharge Power (Selectable): 1 % - 20 % Replacement Battery Cartridge Quantity: 12 Ripple Current: ?5% C10 Ripple Voltage: ?1% VDC Float Temperature Compensation (Per Cell): -3 mV/°C Power Module - Rack Units: 19U Backfeed Protection: Yes Bypass frequency tolerance (Default): ±10% Bypass frequency tolerance (Selectable): ±2.5%, ±5%, ±10%, ±20% Bypass Input Voltage Range: -20 % - 15 % Bypass Input Voltage Range (Selectable): Lower limit: -10%, -20%, -30%, -40% Bypass Overload Protection: 110% - 130% Load for 5 Min Bypass Rated Current: 111A@ 208V Bypass to Inverter Switch Time: Synchronized switch: ?1ms Current rating of bypass neutral cable (A): 1.7 x Input Rated Current Input Power Factor: 0.99 Synchronization-Window: Rated frequency: ±2Hz Synchronization-Window (Selectable): ±0.5Hz - ±5Hz THDI (%): < 4% (Full Linear Load) Automatic Voltage Regulation: ±1 (Balanced Load) Bypass: Internal Bypass (Automatic and Manual) Crest Factor: 3:1 Efficiency: 92.5% (Battery Mode) Harmonic Distortion: < 1.5% at Linear Load Maintenance Bypass: Yes Max Change Rate of Synch Frequency: 1 Hz/s Max Change Rate of Synch Frequency (Selectable): 0.1 - 5 Hz/s Neutral Current Capability: 170 % Non-Linear Load Capability: 100 % Output Frequency: 50 - 60 Hz (auto-sensing/configurable) Output Power Factor: 1 Output Voltage: 208/120V 220/127V Output Voltage Range: 187 VAC - 260 VAC Overload Protection: 105 - 110% Load for 60 min Short Circuit Protection: 300% - 200ms Synchronization Window (Rated ): ±2Hz Synchronization Window (Selectable): ±1Hz - ±5Hz Transient Voltage Response: ±5% Dry Contacts: Yes Material of Construction: Metal Mounting Hardware: Yes Ingress Protection: IP20 Maximum Air Exchange: 3.02 m3 /min Operating Elevation Note: At ?1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m Operating Relative Humidity: 0 - 95 % (non-condensing) Operating Temperature Note: Battery life is halved for every 10°C increase above 20°C Storage Battery Temperature Note: Optimum battery storage between -15°C and 20°C Storage Temperature: -4 - 158 °F (-20 - 70 °C)
Package Contents	SM040KAMFA 3-Phase Modular Smart App Online UPS System Mounting Hardware
Software Included	PowerPanel Business
Certifications & Standards	Safety: cTUVus
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Physical Characteristics
Weight (Approximate)	80.60 kg
Form Factor	Modular
Rack Height	19U

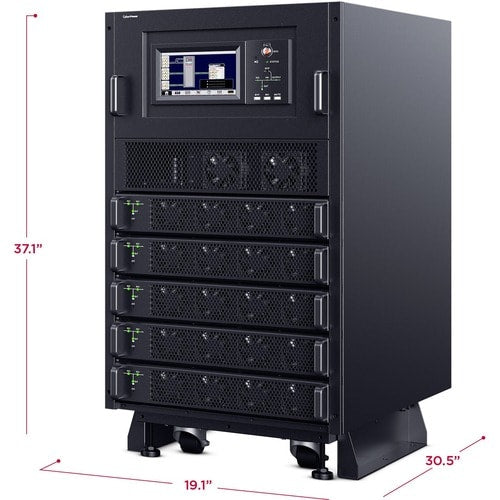

Height	37.10" (942.34 mm)
Width	19.10" (485.14 mm)
Depth	30.50" (774.70 mm)
Product Color	Black
General Information
Product Type	Double Conversion Online UPS
Manufacturer Part Number	SM040KAMFA
Manufacturer Website Address	https://www.cyberpowersystems.com/
Manufacturer	CyberPower Systems, Inc
Product Model	SM040KAMFA
Product Name	SM040KAMFA 3-Phase Modular Smart App Online UPS System
Product Series	Smart App Online UPS
Brand Name	CyberPower
Power Description
Input Voltage	120 V AC
	230 V AC
Output Voltage	120 V AC
	208 V AC
	127 V AC
	220 V AC
Waveform Type	Sine Wave
Input Voltage Range	187 V AC - 260 V AC
Output Frequency	60 Hz
Input Frequency	60 Hz
Load Capacity (VA)	40 kVA
Technical Information
Application/Usage	Data Center
Overload Protection	Yes
Protection Type	Backfeed
	Short Circuit
Plug/Connector Type	Hardwired
Phase	Three Phase
Receptacle Type	Hardwired
AVR	Yes
Energy Saving	Online ECO Mode Efficiency >97.5%
Transfer Time	0 ns
Receptacle Detail	1 x Hardwired
