About the product
Protects Mission-Critical Rack-Mounted Equipment
- Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
- Audible alarm signals loss of utility power, overload and low battery

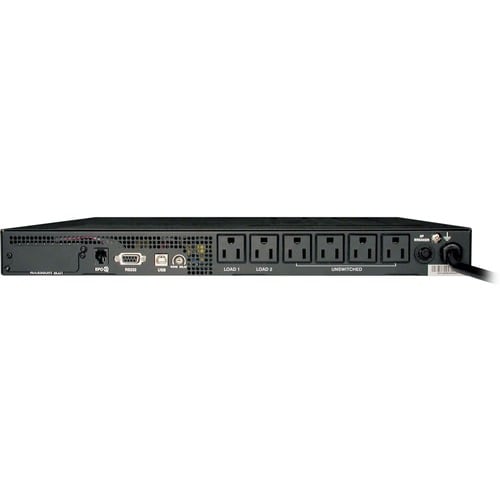

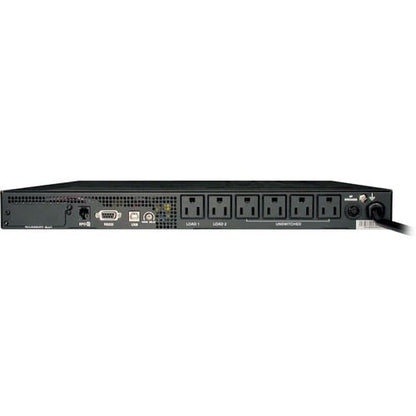

- 6 NEMA 5-15R outlets
- 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
- 450-joule surge suppression rating
- Supports half load up to 14 min. and full load up to 4 min.
- Internal batteries designed for hot-swap field replacement
- 2 load banks, each with one outlet controllable remotely to reboot equipment or shed nonessential loads
- Maintains 120V nominal output over input range of 83V-147V without using battery power
- Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
- 99% line mode efficiency saves money and energy and protects the environment
- Compatible with Tripp Lite UPS management cards, such as WEBCARDLX
- USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
- EPO port supports emergency shutdown in large facilities

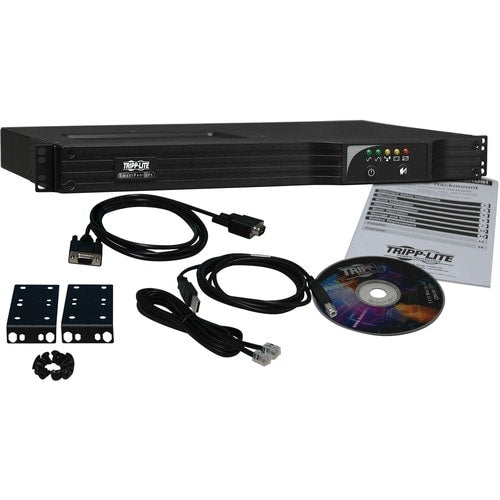

- Hardware included for mounting in 1U of EIA-standard 19 in. 2- or 4-post rack
- Optional 4POSTRAILKIT1U accessory available for extra support in 4-post installations
- Compatible with vertical mount cabinets
- Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Corrects under- and overvoltages from 83V to 147V
- 6 NEMA 5-15R outlets-2 switchable via network interface
- Network power management and control capability
- 99% efficiency rating saves energy and operating cost
- 14 min. runtime at half load; 4 min. at full load
- 2-year limited warranty, $250,000 Ultimate Lifetime Insurance
Technical Specifications
| Controls/Indicators | |
| Status Indicators |
|
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Battery Information | |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 14 Minute |
| Backup/Run Time (Full Load) | 4 Minute |
| Management | |
| Battery Management | User replaceable |
| Alarm | Low Battery |
| Overload | |
| Power Failure | |
| Physical Characteristics | |
| Weight (Approximate) | 32 lb (14514.96 g) |
| Form Factor | Rack/Tower |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 16.80" (426.72 mm) |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerAlert Monitoring |
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 9 A |
| Surge Energy Rating | 450 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 800 W |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SM1000RM1UTAA |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SM1000RM1UTAA |

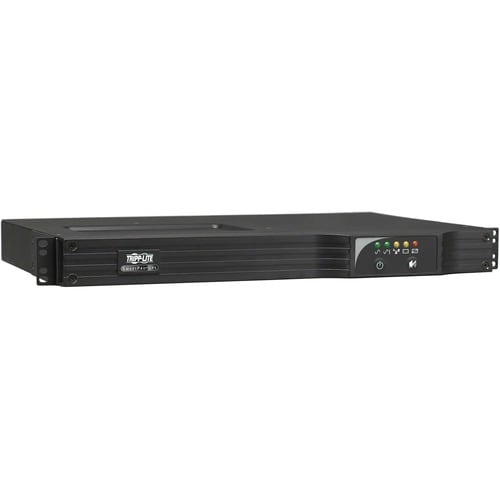

| Product Name | SmartPro SM1000RM1UTAA 1000VA Tower/Rack Mountable UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Emergency Power OFF | Yes |
| Protection Type | Black Out |
| Brownout | |
| EMI / RFI | |
| Over Voltage | |
| Surge | |
| Under Voltage | |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
