About the product

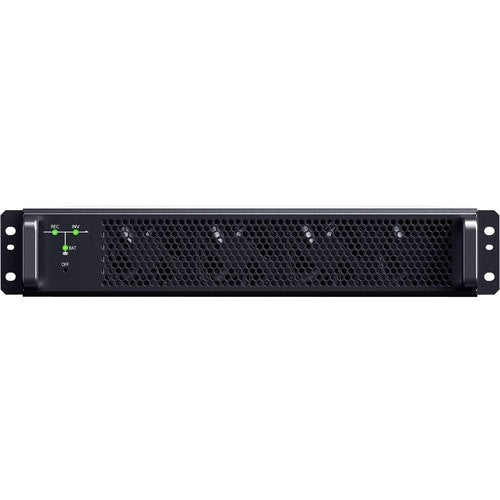

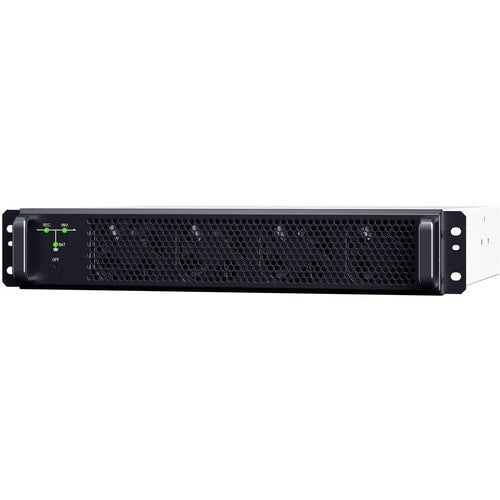

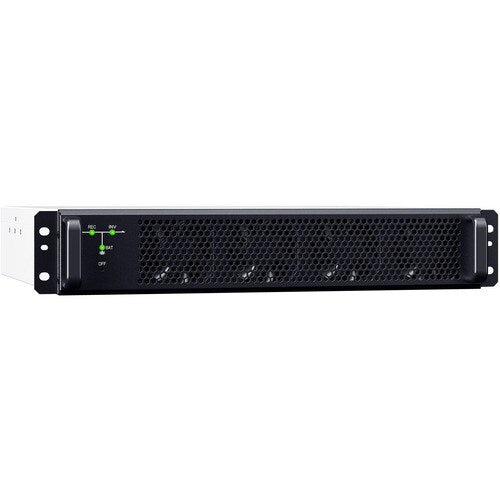

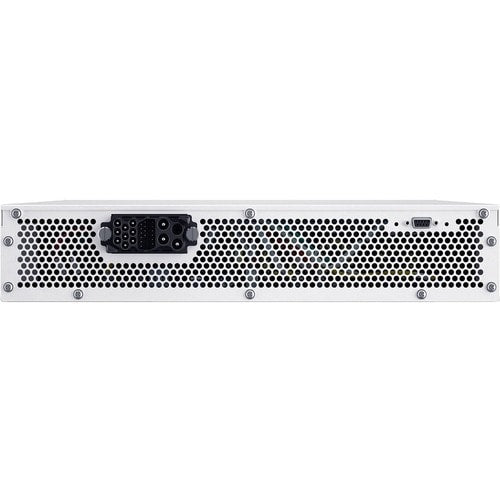

CyberPower 3-Phase Modular UPS SM010KAPMA Power Modules are ultra-robust units capable of handling brief overcurrents of up to 150%. Indicator lights show status of each Power Module and the high-density design puts 10KVA of power in just 2U of space. Includes a One-Year Limited Warranty. For CyberPower 3-Phase Modular UPS Smart App Online Series models SM020KAMFA, SM040KAMFA.
- Capacity: 10-20 kVA / 10-20 kW
- Redundancy: (N+1) capable
- Power Factor (PF): 1.0
- Topology: Double-Conversion
- Waveform: Sine Wave
- High Density: Yes - 2U
- Warranty: 1 year
Technical Specifications
| Battery Information | |
| Battery Characteristics | Hot-swappable |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Rectifier |
| Technical Information | |
| Overload Protection | Yes |
| Phase | Three Phase |
| Energy Saving | Online ECO Mode Efficiency >97.5% |
| Environmental Conditions | |
| Thermal Dissipation | 2797.83 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Sound Emission (A-Weighted) | 56 dB(A) |
| Miscellaneous | |
| Additional Information |
|
| Certifications & Standards | Safety: cTUVus |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 10 kVA |
| Load Capacity (Watt) | 10 kW |
| Physical Characteristics | |
| Weight (Approximate) | 36.20 lb (16420.04 g) |
| Form Factor | Modular |
| Rack Height | 2U |
| Height | 3.30" (83.82 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 23.20" (589.28 mm) |
| Product Color | Silver |
| Black | |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SM10KAPMA |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | SM10KAPMA |
| Product Name | SM10KAPMA 3-Phase Modular UPS Power Modules |
| Product Line | Smart App Online |
| Product Series | 3-Phase Power Modules |
| Brand Name | CyberPower |
