About the product

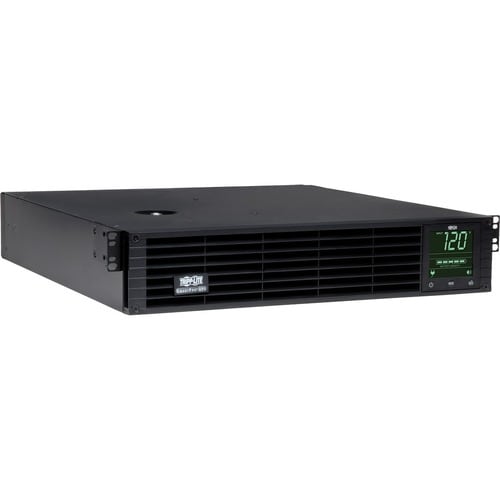

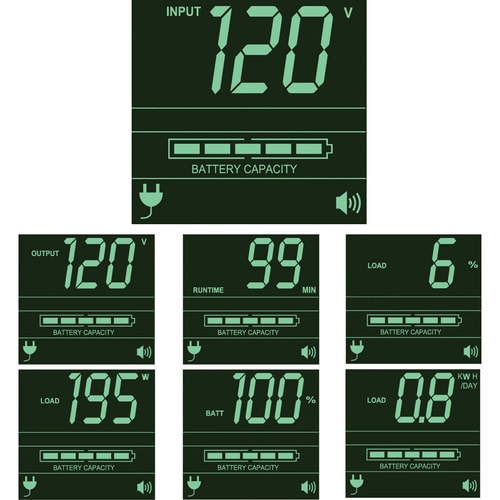

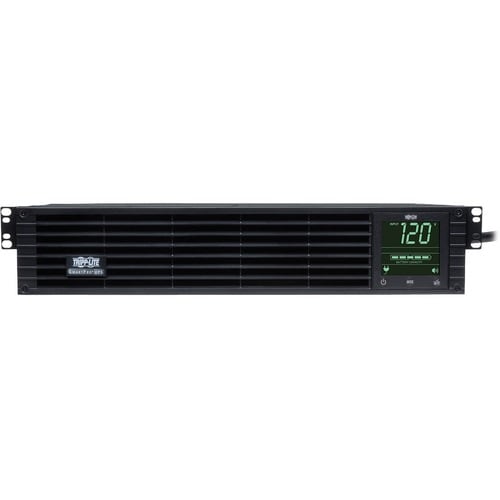

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and slot for network management card options. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring and auto shutdown software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
- Federal Trade Agreements Act / TAA compliant for GSA schedule purchases
- 3kVA / 3000VA / 2250W line interactive 2U rack/tower UPS, Sine Wave
- 120V output, Corrects brownouts and overvoltages from 83V to 145V
- 0.75 Power Factor, Interactive LCD interface, Extended runtime options to 1600W
- 98% line-mode efficiency, 2 switched load banks, 4 post mounting accessories
- USB, RS232, EPO and slot for SNMPWEBCARD option

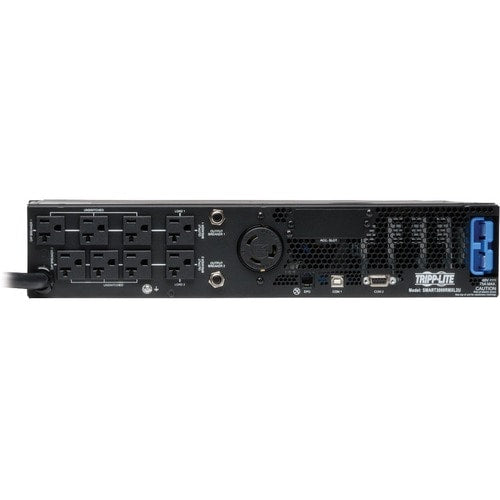

- 120V NEMA L5-30P input, 8 NEMA 5-15/20R & 1 L5-30R outlets
Technical Specifications
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Battery Information | |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Physical Characteristics | |
| Weight (Approximate) | 62.80 lb (28485.60 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 19.50" (495.30 mm) |
| Management | |
| Battery Management | User replaceable |
| Alarm | Overload |
| UPS StartUp | |
| Remote Shutdown | |
| Power Failure | |
| Low Battery | |
| Fault | |
| Miscellaneous | |

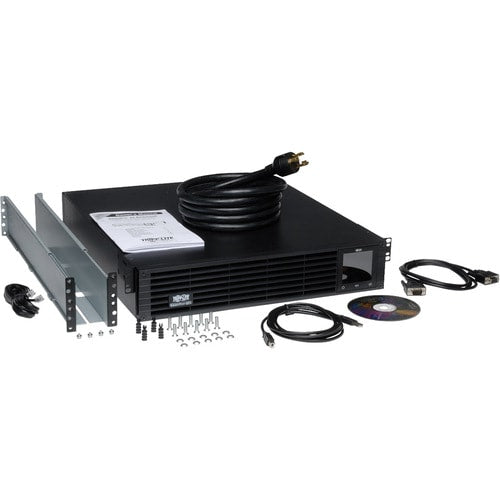

| Package Contents |
|
| Software Included | PowerAlert Monitoring |
| Certifications & Standards |
|
| Country of Origin | Taiwan |

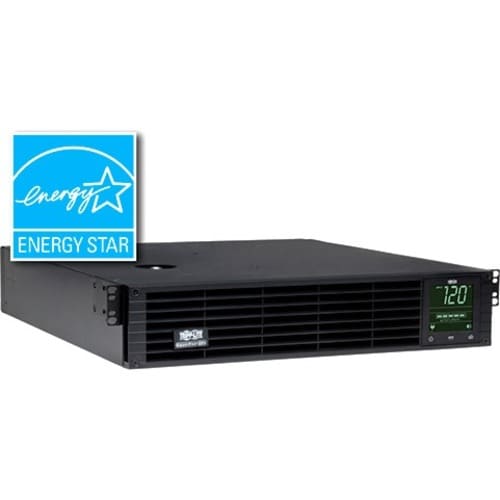

| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SM3000RM2UTAA |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SM3000RM2UTAA |
| Product Name | SmartPro SM3000RM2UTAA 3000VA Tower/Rack Mountable UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 24 A |
| Surge Energy Rating | 570 J |
| Waveform Type | Pure Sine Wave |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.25 kW |
| Technical Information | |
| Emergency Power OFF | Yes |
| Protection Type | Brownout |
| Black Out | |
| EMI / RFI | |
| Over Voltage | |
| Surge | |
| Under Voltage | |

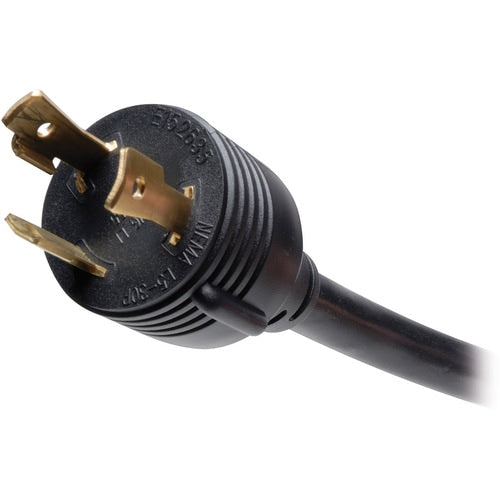

| Plug/Connector Type | NEMA L5-30P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA L5-30R |
| NEMA 5-15/20R | |
| Receptacle Detail | 8 x NEMA 5-15/20R |
| 1 x NEMA L5-30R |
