About the product

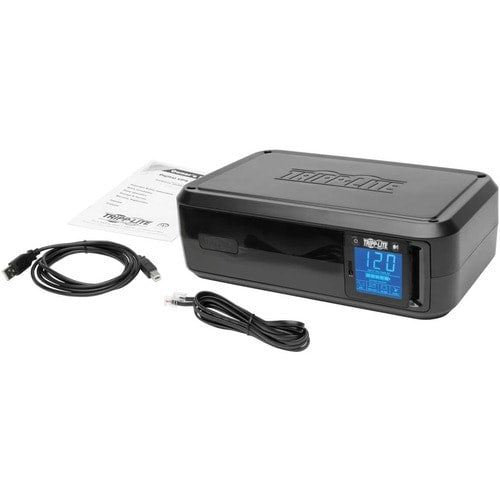

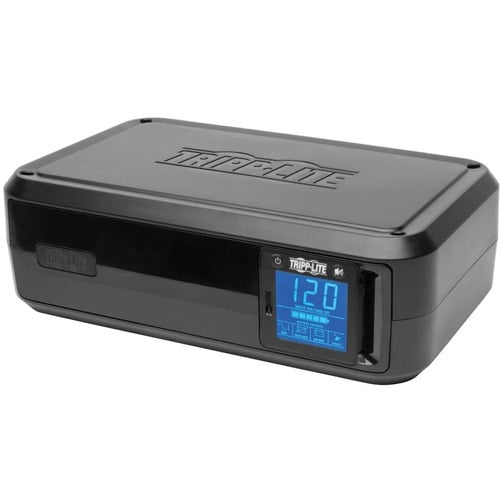

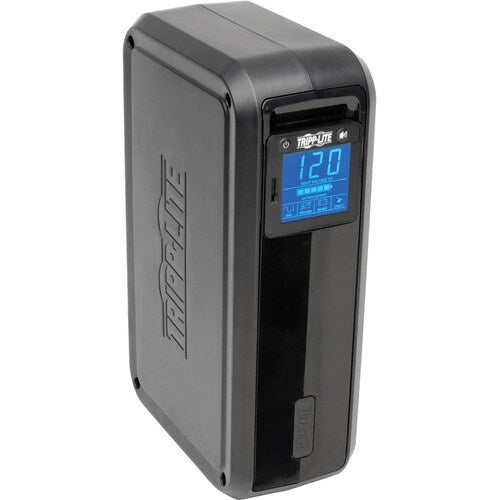

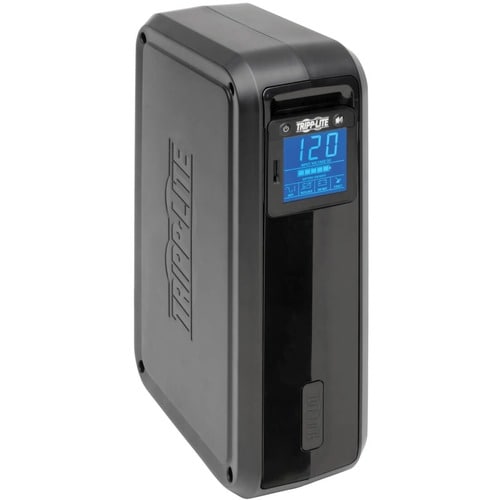

Line-Interactive Digital UPS System offers voltage regulation, surge suppression and battery support for personal computers, network workstations and more. Internal UPS circuits support entry-level PCs for 60 minutes or individual VCR/DVR for 3 hours during power failure. AVR circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Includes 4 battery-supported outlets, plus 4 surge suppression-only outlets. USB port enables optional unattended system shutdown without data loss; cable included. HID-compliant USB interface enables integration with built-in power management and auto shutdown of Windows, Mac OS X and Linux. Built-in single-line RJ-11 phone suppression jacks protect modem and satellite receiver with standard dialup/DSL phone connection. 2.2 GHz coaxial jacks protect against surges on CATV, satellite or broadcast antenna connections. 3 minute battery runtime with full load of 1000VA/500W and 10 minutes with half load of 500VA/250W.
- Supports a basic desktop PC up to 60 min. during power outage

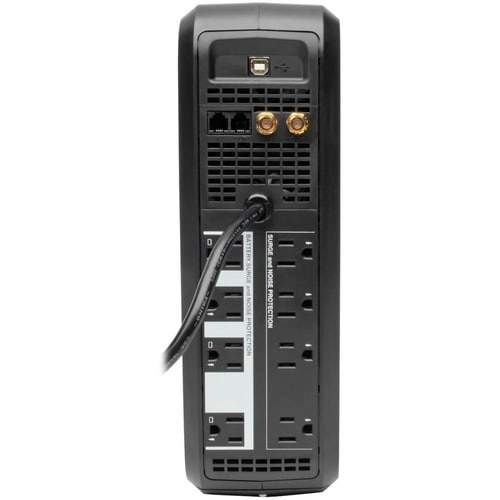

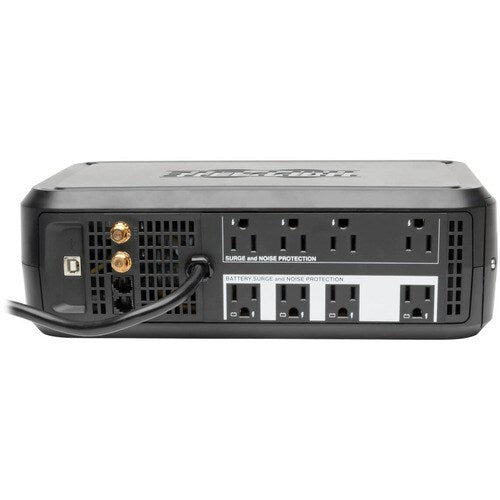

- Features 8 protected outlets-4 battery-protected, 4 surge-only
- Offers automatic voltage regulation (AVR)

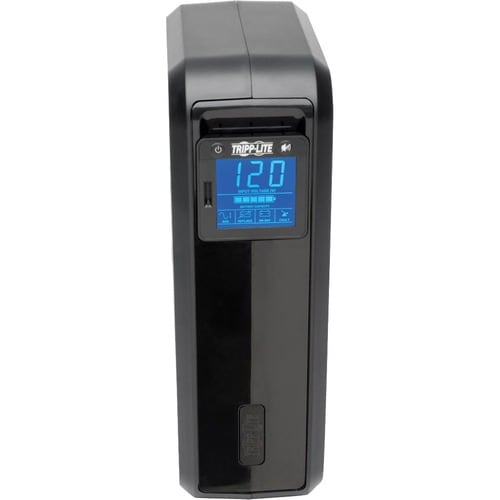

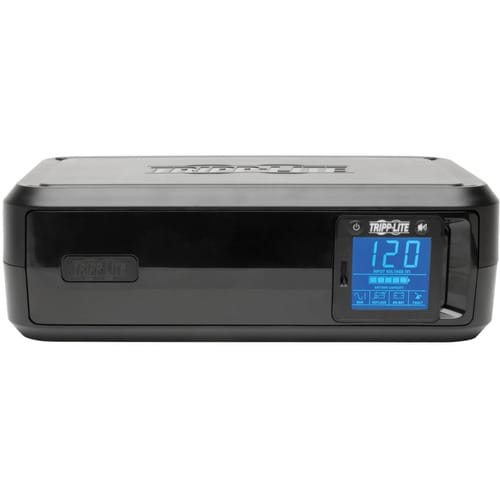

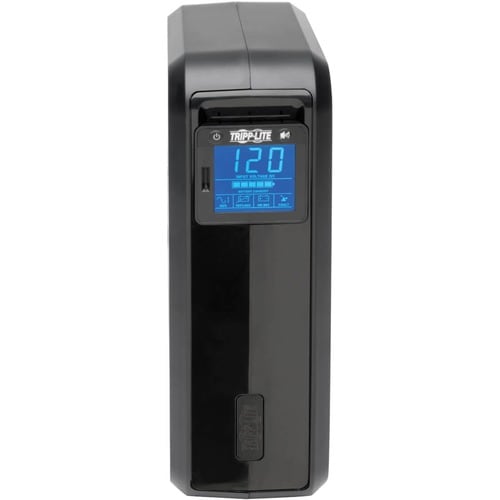

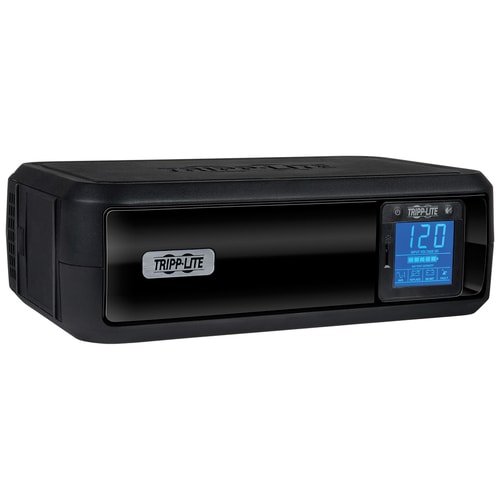

- LCD screen reports real-time UPS and power status
- Plugs into any NEMA 5-15R socket
Technical Specifications
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Interfaces/Ports | |
| USB | Yes |
| Warranty | |
| Additional Warranty Information | 2 year product warranty / $250,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only) |
| Battery Information | |
| Battery Life | 6 Year |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 1038 J |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 500 W |
| Technical Information | |
| Dataline Protection | RJ-11 |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Transfer Time | 4 ms |
| Receptacle Detail | 4 x NEMA 5-15R |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Recycled | No |
| Assembly Required | No |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART1000LCD |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Name | SmartPro 1000 VA Tower Digital UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 14.60 lb (6622.45 g) |
| Form Factor | Tower |
| Rack Height | 2U |
| Height | 10.43" (265 mm) |
| Width | 15.55" (395 mm) |
| Depth | 4.84" (123 mm) |
| Product Color | Black |
| Color Family | Black |
