Tripp Lite by Eaton SmartPro 2200VA UPS - Tower - 4 Hour Recharge - 11

Name: Tripp Lite by Eaton SmartPro 2200VA UPS - Tower - 4 Hour Recharge - 11
Brand: Tripp Lite
SKU: RSC285384
Price: 1852.67 CAD
Availability: InStock

$1,852.67 CAD

~~$2,223.20 CAD~~ $1,852.67 CAD

-16% OFF Ask for quote

Shipping calculated at checkout.

Tripp Lite by Eaton SmartPro 2200VA UPS - Tower - 4 Hour Recharge - 11 Minute Stand-by - 120 V AC Input - 120 V AC Output - Pulse-width Modulated Sine Wave - 6 x NEMA 5-15R Receptacle(s) - SNMP Manageable

VPN:SMART2200NET SKU:RSC285384 UPC:37332032041

2.2kVA / 2200VA line interactive, extended-run tower UPS
120V output, Corrects brownouts and overvoltages from 87V to 140V
3 DB9 communication ports (1 RS232 / 2 contact-closure)

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Tripp Lite by Eaton SmartPro 2200VA UPS - Tower - 4 Hour Recharge - 11

About the product

Tripp Lite's SMART 2200NET intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 27 minutes half load runtime and 11 minutes fully loaded. Runtime is expandable with optional BP24V28-2U (limit 1) and BP24V70-3U external battery packs. 2200VA/1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 6 protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure ports. PowerAlert UPS monitoring and unattended shutdown software is available via free download. Built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level, plus voltage regulation status. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges.

2.2kVA / 2200VA line interactive, extended-run tower UPS
120V output, Corrects brownouts and overvoltages from 87V to 140V
3 DB9 communication ports (1 RS232 / 2 contact-closure)

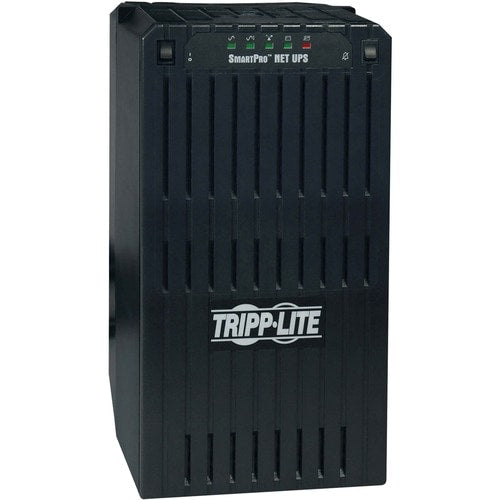

Front panel status LEDs with load and battery capacity display
2 independently switchable output load banks

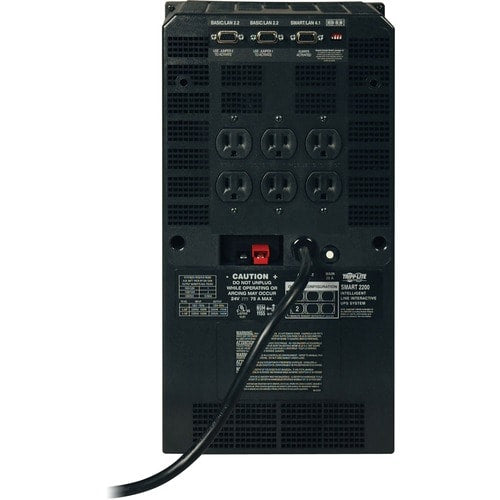

NEMA 5-15P input, 6 NEMA 5-15R outlets

Technical Specifications

Controls/Indicators
Status Indicators	Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
Environmental Conditions
Maximum Operating Temperature	122°F (50°C)
Interfaces/Ports
Total Number of Expansion Slots	3
Management
Network Management	SNMP Manageable
Alarm	On Battery
Battery Information
Battery Life	6 Year
Battery Chemistry	Lead Acid
Backup/Run Time (Half Load)	27 Minute
Backup/Run Time (Full Load)	11 Minute
Typical Battery Recharge Time	4 Hour
Technical Information
Plug/Connector Type	NEMA 5-15P
Cord Length	8 ft (2.44 m)
Receptacle Type	NEMA 5-15R
Transfer Time	4 ms
Receptacle Detail	6 x NEMA 5-15R
Power Description
Input Voltage	120 V AC
Output Voltage	120 V AC
Surge Energy Rating	720 J
Waveform Type	Pulse-width Modulated Sine Wave
Load Capacity (VA)	2.20 kVA
Load Capacity (Watt)	1.70 kW
General Information
Product Type	Line-interactive UPS
Manufacturer Part Number	SMART2200NET
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Manufacturer	Eaton Corporation
Product Name	SmartPro 2200VA UPS
Product Line	SmartPro
Brand Name	Tripp Lite by Eaton
Miscellaneous
Additional Information	SMART2200NET line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression 2200VA / 1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices Large internal batteries offer runtimes of 27 minutes at half load (1100VA / 850 watts) and 11 minutes at full load (2200VA / 1700 watts) Runtime is further expandable with optional external BP24V33 battery packs (output VA is de-rated as external battery packs are added, see specifications) Automatic Voltage Regulation (AVR) circuits maintain 120V nominal output over an input voltage range of 87-140V Includes 6 fully protected NEMA 5-15R outlets with 2 single outlet load banks that can be individually powered off and back on again via software interface PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user defined script commands Offers simultaneous monitoring of up to 3 directly connected devices through included DB9 contact closure and RS-232 enabled interfaces, or the monitoring of any number of additional servers over IP with included PowerAlert monitoring software In addition to the contact closure monitoring of on battery, low battery and power restored messaging, built-in RS-232 interface supports messaging of UPS and line power status, including AC line voltage, DC battery voltage and remaining battery capacity Supports activate self-test and UPS output power control for scheduled or immediate reboot of connected equipment Diagnostic LEDs (indicate 17 performance conditions) UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Business) Listed $250,000 Ultimate Lifetime Insurance (USA & Canada Only)
Package Contents	SMART2200NET UPS System PowerAlert Software CD 3 x 6-ft. network cables Warranty information Instruction manual
Software Included	PowerAlert Software
Certifications & Standards	UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
Country of Origin	China
Recycled	No
Assembly Required	No
Physical Characteristics
Weight (Approximate)	80 lb (36287.39 g)
Form Factor	Tower
Height	17" (431.80 mm)
Width	9" (228.60 mm)
Depth	12.50" (317.50 mm)
Product Color	Gray
Color Family	Gray
