About the product
Tripp Lite's SMART 2200VS intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches. Large capacity 2200 VA/ 1600 watt rated UPS system offers 7 minutes runtime at full load and 19 minutes at half load during power failures. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 9 outlets, 3 pairs of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.
- 2.2kVA / 2200VA line interactive tower UPS system
- 120V nominal output during brownouts to 79V and overvoltages to 147V

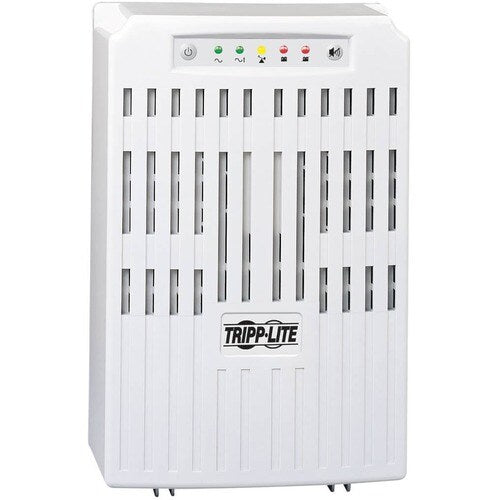

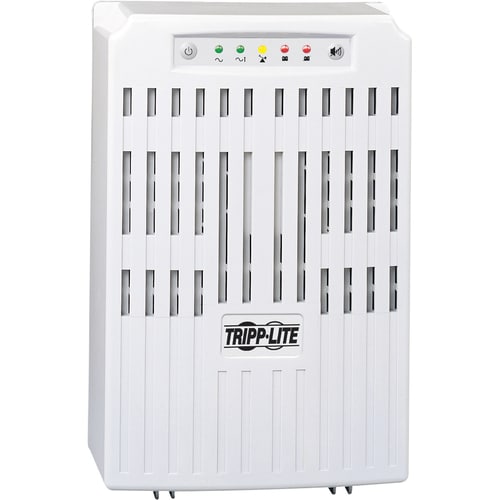

- Front panel status LEDs with load and battery capacity level display
- USB, RS232, EPO and optional SNMP/Web card are available for simultaneous use

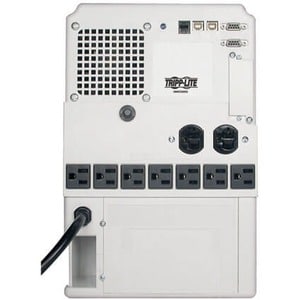

- NEMA 5-20P input; 2 NEMA 5-15/20R & 7 5-15R outlets
Technical Specifications
| Controls/Indicators | |
| Status Indicators | Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Interfaces/Ports | |
| USB | Yes |
| Total Number of Expansion Slots | 1 |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | Low Battery |
| Overload | |
| On Battery | |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Country of Origin | China |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.60 kW |
| Physical Characteristics | |
| Weight (Approximate) | 52.40 lb (23768.24 g) |
| Form Factor | Tower |
| Height | 14.25" (361.95 mm) |
| Width | 9.25" (234.95 mm) |
| Depth | 12" (304.80 mm) |
| Battery Information | |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 19 Minute |
| Backup/Run Time (Full Load) | 7 Minute |
| Typical Battery Recharge Time | 4 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART2200VS |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | SmartPro SMART2200VS UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Emergency Power OFF | Yes |
| Plug/Connector Type | NEMA 5-20P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA 5-15R |
| NEMA 5-20R | |
| Transfer Time | 4 ms |
| Receptacle Detail | 2 x NEMA 5-20R |
| 7 x NEMA 5-15R |
