About the product

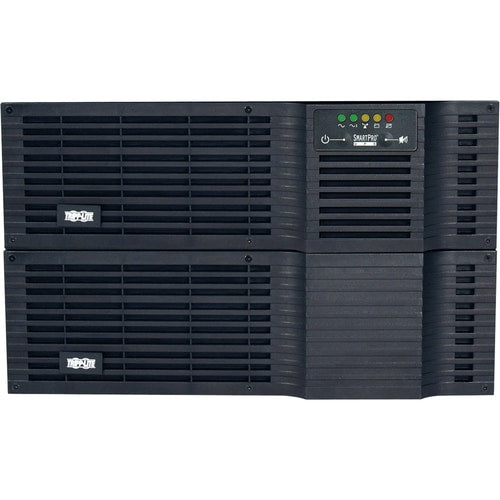

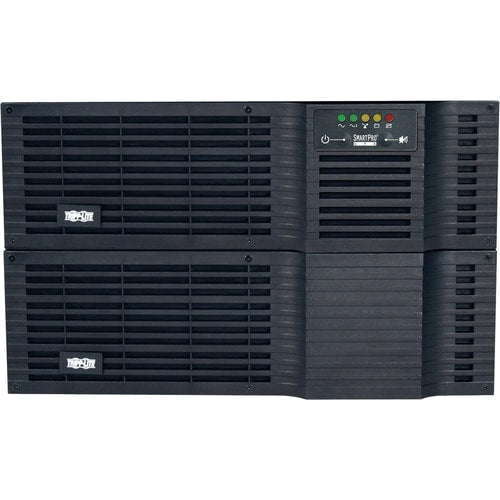

Tripp Lite's line-interactive SMART5000RT3U UPS System protects server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges in a compact tower/rackmount housing. Large capacity 5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and low-voltage equipment loads. True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets, 8 of which can be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical equipment. Includes slot for internal SNMP/web card, plus two DB9 and two USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. 2 Year Warranty standard. 3 Year Warranty with product registration.
- 5kVA / 5000VA / 4000W line interactive 6U rack/tower UPS; Sine wave output
- 208 & 120V output during brownouts to 151V and overvoltages to 260V
- USB, Serial, EPO & optional SNMP/Web card monitoring options
- Expandable runtime; 8 single-outlet switched output load banks

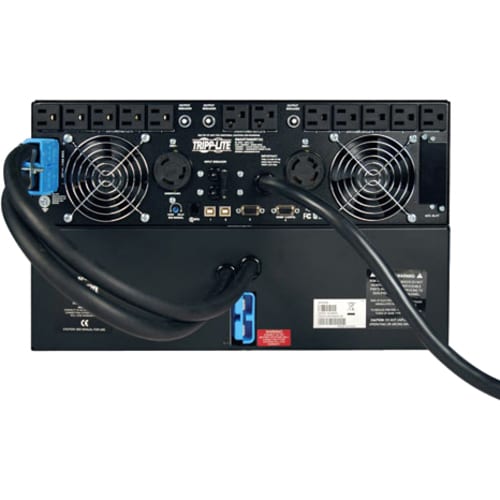

- NEMA L6-30P input; 10 5-15R, 2 5-15/20R, 1 L6-30R & 1 L14-30R outlets
Technical Specifications
| Controls/Indicators | |
| Status Indicators | 5 front panel LEDs - Green 5 front panel LEDs - Green POWER LED, Green VOLTAGE CORRECTION LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LED, red BATTERY WARNING LED |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Interfaces/Ports | |
| USB | Yes |
| Total Number of Expansion Slots | 1 |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | Low Battery |
| Overload | |
| On Battery | |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Country of Origin | China |
| Physical Characteristics | |
| Weight (Approximate) | 58.50 lb (26535.15 g) |
| Rack Height | 6U |
| Height | 3.50" (88.90 mm) |
| Width | 17.25" (438.15 mm) |
| Depth | 16.75" (425.45 mm) |
| Power Description | |
| Input Voltage | 220 V AC |
| Output Voltage | 208 V AC |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 4 kW |
| Battery Information | |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 38 Minute |
| Backup/Run Time (Full Load) | 16 Minute |
| Typical Battery Recharge Time | 4 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART5000RT3U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SMART5000RT3U |
| Product Name | SMART5000RT3U 5000 VA Rack/Tower Line Interactive UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Emergency Power OFF | Yes |
| Plug/Connector Type | NEMA L6-30P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA 5-20R |
| NEMA L14-30R | |
| NEMA L6-30R | |
| NEMA 5-15R | |
| Transfer Time | 4 ms |
| Receptacle Detail | 1 x NEMA L6-30R |
| 2 x NEMA 5-20R | |
| 1 x NEMA L14-30R | |
| 10 x NEMA 5-15R |
