About the product
Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.
- 5kVA / 5000VA line interactive 3U rack/tower UPS; Sine wave output
- 208 & 120V output during brownouts to 167 and overvoltages to 260V
- USB, Serial, EPO & optional SNMP/Web card monitoring options
- 3U all-in-one chassis; 8 single-outlet switched load banks; 97% efficiency

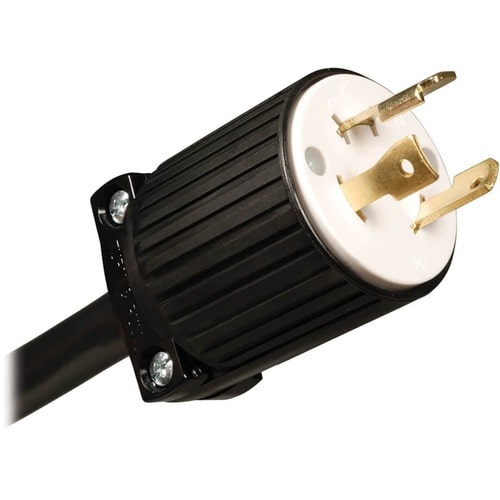

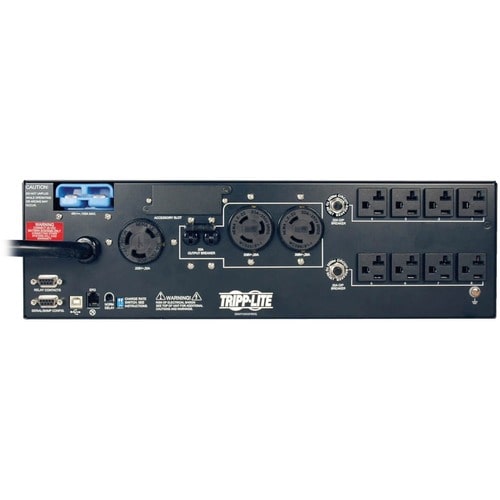

- NEMA L6-30P input; 8 NEMA 5-15/20R, 2 L6-20R & 1 L6-30R outlets
Technical Specifications
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| USB | Yes |
| Modem (RJ-11) | Yes |
| Serial Port | Yes |
| Total Number of Expansion Slots | 1 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Input Current | 27 A |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 3.75 kW |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 20 Minute |
| Backup/Run Time (Full Load) | 8.50 Minute |
| Battery Characteristics | Maintenance-free |
| Typical Battery Recharge Time | 4 Hour |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerAlert UPS Monitoring Software |
| Certifications & Standards |
|
| Country of Origin | China |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 143.30 lb (64999.79 g) |
| Form Factor | Tower |
| Rack Height | 3U |
| Height | 5.25" (133.35 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 25" (635 mm) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART5000XFMRXL |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SMART5000XFMRXL |
| Product Name | SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Emergency Power OFF | Yes |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA 5-15/20R |
| NEMA L6-20R | |
| NEMA L6-30R | |
| Transfer Time | 4 ms |
| Receptacle Detail | 2 x NEMA L6-20R |
| 8 x NEMA 5-15/20R | |
| 1 x NEMA L6-30R |
