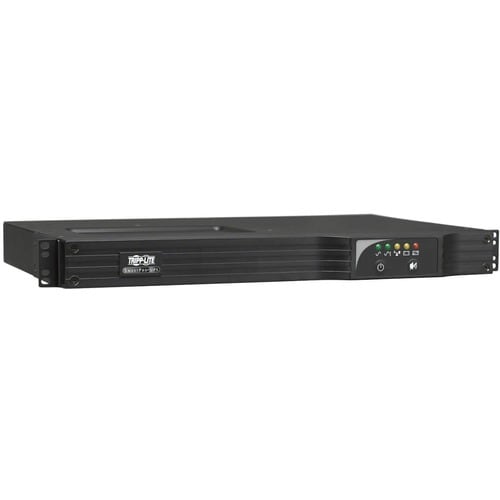

Tripp Lite SmartPro 750RM1U UPS - 750VA/450W - 5 Minute Full Load - 6 x NEMA 5-15R

VPN:SMART750RM1U SKU:RSC357567 UPC:37332118813

.75kVA / 750VA / 600W line interactive 1U rackmount UPS, Sine wave output
120V output, Corrects brownouts and overvoltages from 83V to 147V
0.8 Power Factor, Front panel status LEDs

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Tripp Lite SmartPro 750RM1U UPS - 750VA/450W - 5 Minute Full Load - 6 x NEMA 5-15R

About the product

Tripp Lite SMART750RM1U 750VA / .75kVA / 600 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Simultaneous-use network management interfaces include USB, RS-232 and optional SNMP/Web accessory card. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.

.75kVA / 750VA / 600W line interactive 1U rackmount UPS, Sine wave output
120V output, Corrects brownouts and overvoltages from 83V to 147V
0.8 Power Factor, Front panel status LEDs
Mounting brackets support 2 and 4 post installation
98% line-mode efficiency, 2 switched load banks
USB, RS232, EPO and slot for SNMPWEBCARD option

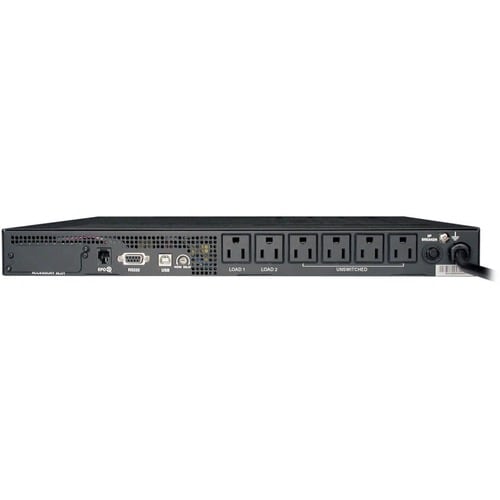

120V NEMA 5-15P input, 6 NEMA 5-15R outlets

Technical Specifications

Controls/Indicators

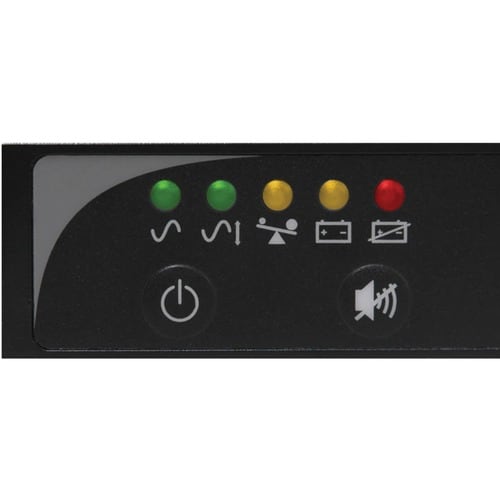

Status Indicators	5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Interfaces/Ports
USB	Yes
Total Number of Expansion Slots	1
Management
Network Management	SNMP Manageable
Alarm	Low Battery
	Overload
	On Battery
Miscellaneous
Additional Information	SMART750RM1U line interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression 750VA / 450 watt power handling capability with full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic devices Supports 1U rackmount installation in 2 or 4 post rack enclosures, upright tower placement also supported Maintains regulated 120V nominal output during brownouts and overvoltages from 83 to 147V Includes 6 UPS-supported outlets arranged in 2 individually controllable load banks (2 outlets per bank) that can be powered off and back on again via software interface PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise management software is also available for select opportunies Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected devices Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW) Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter Emergency Power Off (EPO) interface with cable Multi-function audible alarms and set of 5 front panel LEDs Network-grade AC surge suppression Attractive all-black color scheme UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary Two year warranty with $250,000 connected equipment insurance (USA & Canada only)
Package Contents	SMART750RM1U UPS System Mounting hardware Cabling for USB & DB9 monitoring and EPO switching PowerAlert unattended shutdown and UPS/Power monitoring software Warranty information and instruction manual
Certifications & Standards	UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
Country of Origin	China
TAA Compliant	Yes
Physical Characteristics
Weight (Approximate)	30 lb (13607.77 g)
Rack Height	1U
Height	1.75" (44.45 mm)
Width	17.50" (444.50 mm)
Depth	16.75" (425.45 mm)
Power Description
Input Voltage	120 V AC
Output Voltage	120 V AC
Waveform Type	Sine Wave
Load Capacity (VA)	750 VA
Load Capacity (Watt)	600 W
Technical Information
Emergency Power OFF	Yes
Plug/Connector Type	NEMA 5-15P
Cord Length	10 ft (3.05 m)
Receptacle Type	NEMA 5-15R
Receptacle Detail	6 x NEMA 5-15R
Battery Information
Battery Life	6 Year
Battery Chemistry	Lead Acid
Hot Swappable	Yes
Backup/Run Time (Half Load)	13.20 Minute
Backup/Run Time (Full Load)	4.90 Minute
Typical Battery Recharge Time	4 Hour
General Information
Product Type	Line-interactive UPS
Manufacturer Part Number	SMART750RM1U
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Manufacturer	Eaton Corporation
Product Name	SmartPro 750RM1U UPS
Product Line	SmartPro
Brand Name	Tripp Lite by Eaton
