About the product

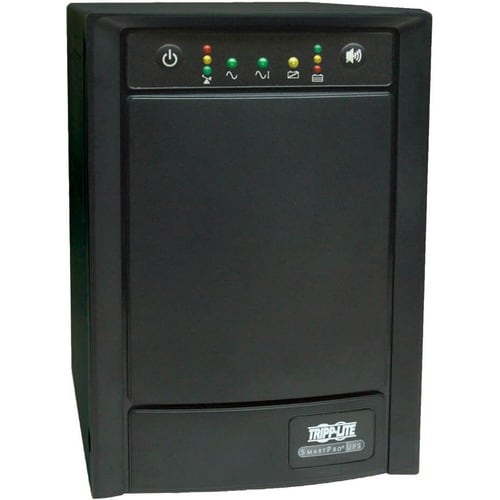

Tripp Lite's SMART750SLT intelligent, line-interactive sine wave UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 15 minutes half load runtime and 5 minutes fully loaded. 750VA/500 watt power handling capability and full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic applications. Includes 8 protected NEMA 5-15R output receptacles total, 4 of which offer surge suppression-only for less critical desktop accessories. Supports simultaneous remote monitoring of UPS and site power conditions via built-in network accessory card slot, USB and DB9 serial monitoring ports. Communications interfaces support messaging of UPS and line power status, plus output power control for delayed or immediate reboot of all connected devices at once. PowerAlert UPS monitoring software is available via free download. Built-in audible alarm and LEDs offer status notification for line power, battery power, battery charge level, load level, plus AVR boost and trim operational status information. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Also includes single line TEL/DSL or Ethernet line surge suppression. Attractive, all-black tower housing.
- 750VA line interactive tower UPS; Sine wave output
- 100/110/120V nominal output during brownouts and overvoltages
- USB, RS232 and optional SNMP/Web card are available for simultaneous use
- Detailed status LEDs; Single line TEL / DSL surge suppression

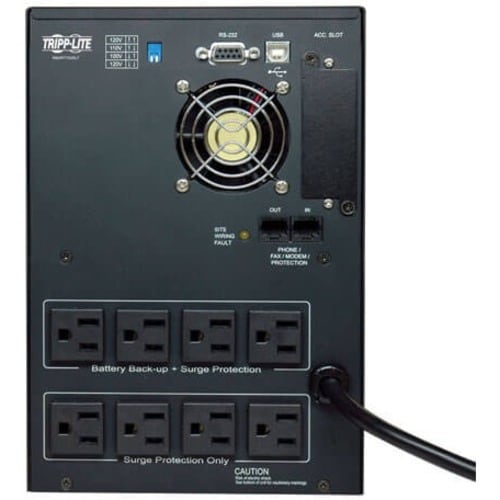

- NEMA 5-15P input; 8 NEMA 5-15R outlets
Technical Specifications
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Battery Information | |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 20 Minute |
| Backup/Run Time (Full Load) | 6.50 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerAlert Software |
| Certifications & Standards | UL1778 (USA), cUL (Canada), Class B (emissions), RoHS-Compliant, FCC Part 68 / Industry Canada (telecommunications) |
| Country of Origin | China |
| Physical Characteristics | |
| Weight (Approximate) | 34.10 lb (15467.50 g) |
| Form Factor | Tower |
| Height | 10.20" (259.08 mm) |
| Width | 6.80" (172.72 mm) |
| Depth | 13.25" (336.55 mm) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC |
| 100 V AC | |
| 120 V AC | |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 500 W |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMART750SLT |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SMART750SLT |
| Product Name | SmartPro SMART750SLT 750VA Tower UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Application/Usage | Network |
| Telecommunication | |
| Dataline Protection | RJ-45 |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| Transfer Time | 8 ms |
| Receptacle Detail | 8 x NEMA 5-15R |
