About the product

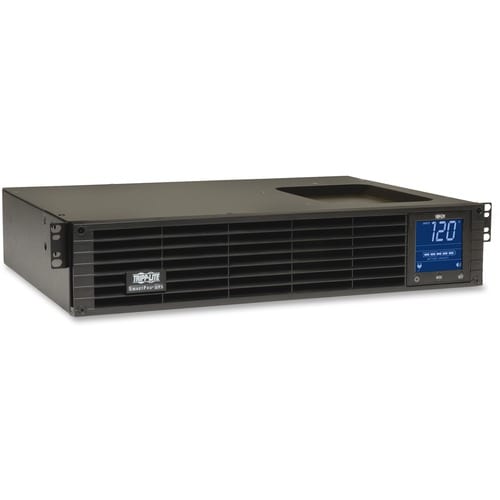

Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 94 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communication ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions.
- Corrects under- and overvoltages from 83V to 147V

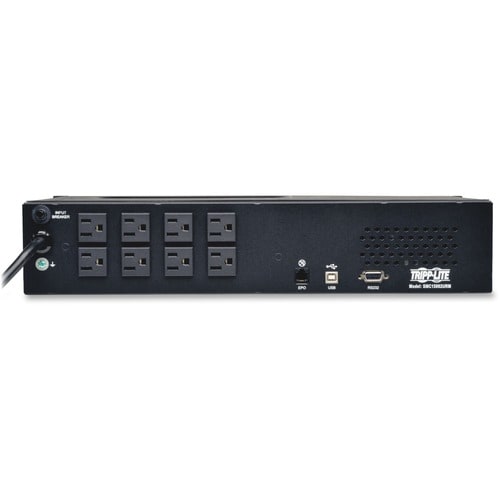

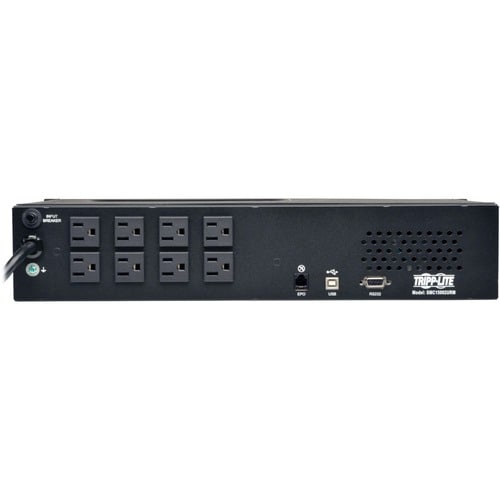

- 8 NEMA 5-15R outlets
- Monitoring of power conditions via POWERALERT12

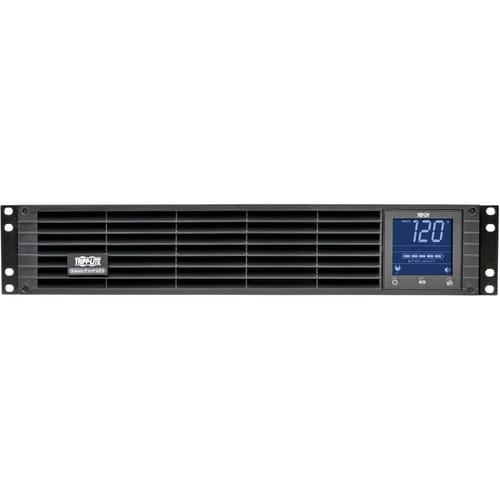

- Interactive LCD monitoring screen
- 17.7 min. runtime at half load; 6.5 min. at full load
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LEDs |
| Warranty | |
| Additional Warranty Information | 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty. $250,000 connected equipment insurance |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Battery Information | |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 17.70 Minute |
| Backup/Run Time (Full Load) | 6.50 Minute |
| Environmental Conditions | |
| Thermal Dissipation | 223 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Physical Characteristics | |
| Weight (Approximate) | 46.50 lb (21092.05 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.45" (87.63 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 13.45" (341.63 mm) |
| Management | |
| Battery Management | user-replaceable |
| Alarm | UPS StartUp |
| UPS Fault | |
| Remote Shutdown | |
| Power Failure | |
| Overload | |
| Low Battery | |
| Miscellaneous | |

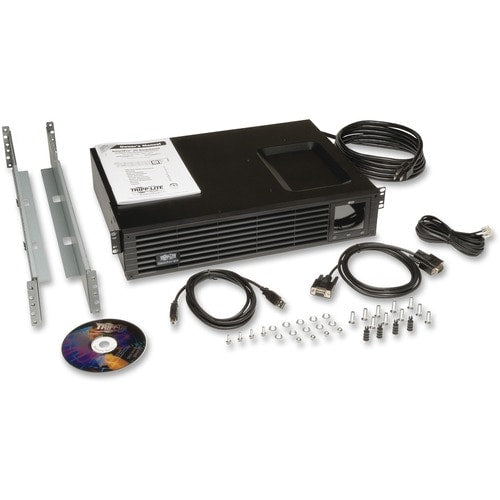

| Package Contents |
|
| Certifications & Standards | UL Listed Certification |
| Country of Origin | China |
| Recycled | No |
| Assembly Required | No |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMC15002URM |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Model | SMC15002URM |
| Product Name | Line-interactive UPS Power Supply |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 12 A |
| Surge Energy Rating | 570 J |
| Waveform Type | Sine Wave |
| Pure Sine Wave | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1 kW |
| Technical Information | |
| Emergency Power OFF | Yes |
| Protection Type | Brownout |
| EMI / RFI | |
| Over Voltage | |
| Under Voltage | |
| Surge | |
| Black Out | |

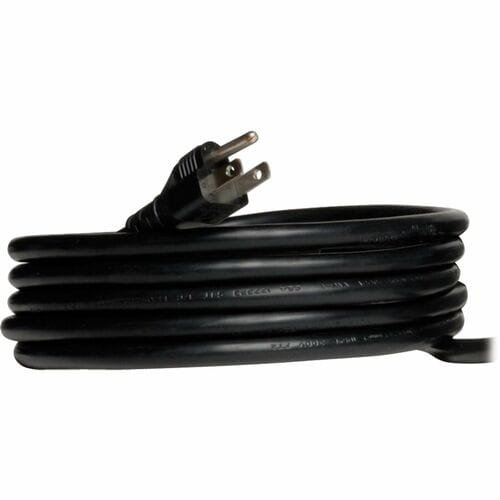

| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 9.8 ft (3 m) |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
