Startech.Com 15M (49.2Ft) Lc To Lc (Upc) Os2 Single Mode Duplex Fi

Startech.Com 15M (49.2Ft) Lc To Lc (Upc) Os2 Single Mode Duplex Fi

Regular price $43.88 CAD
Regular price $48.27 CAD Sale price $43.88 CAD
-9% OFF Ask for quote
Shipping calculated at checkout.

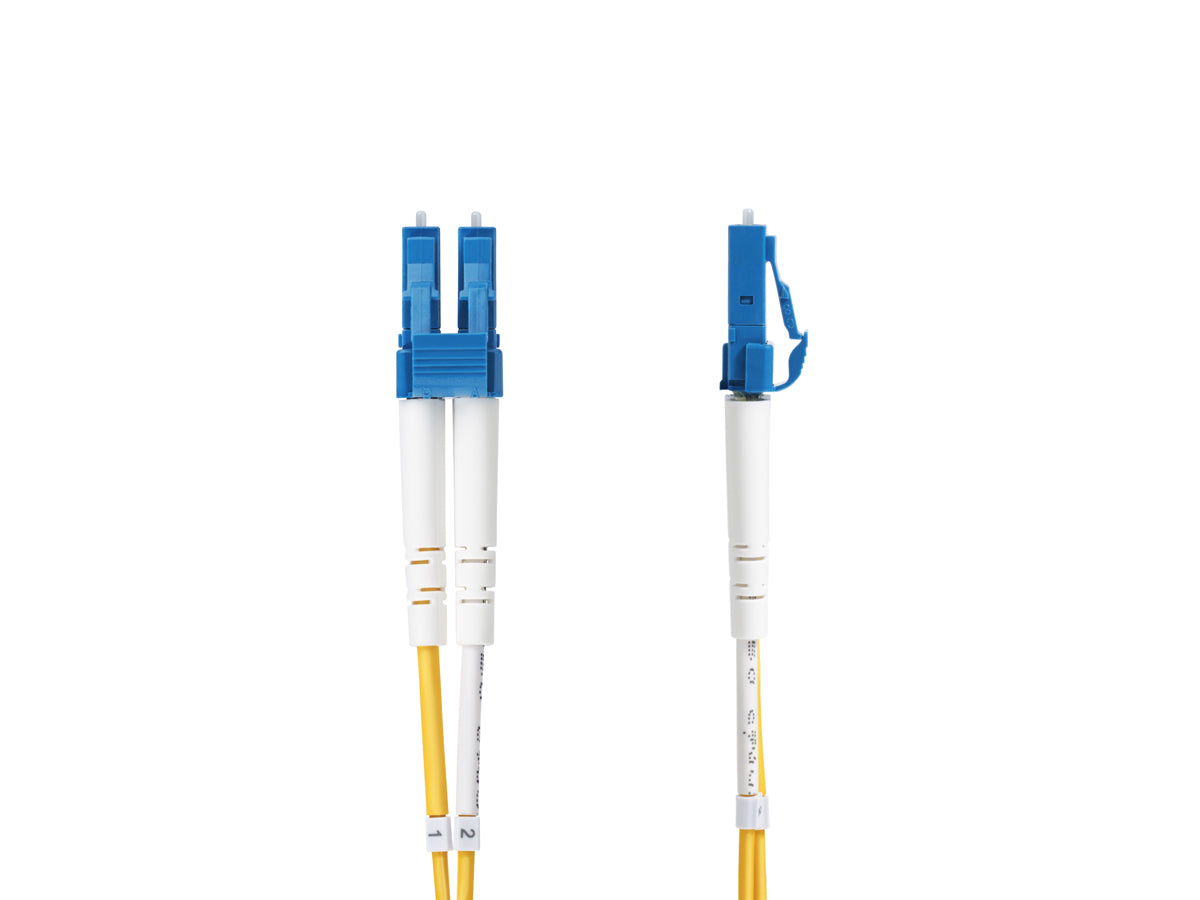

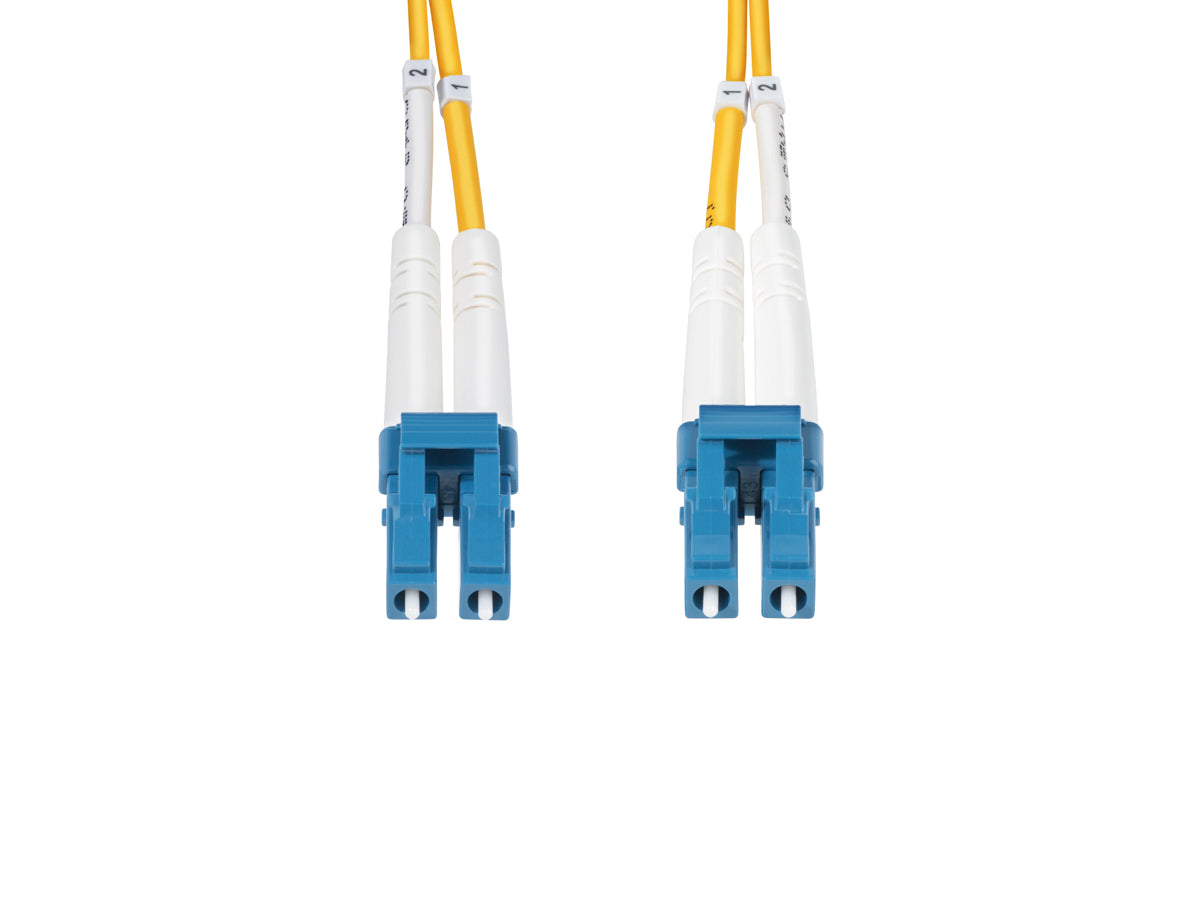

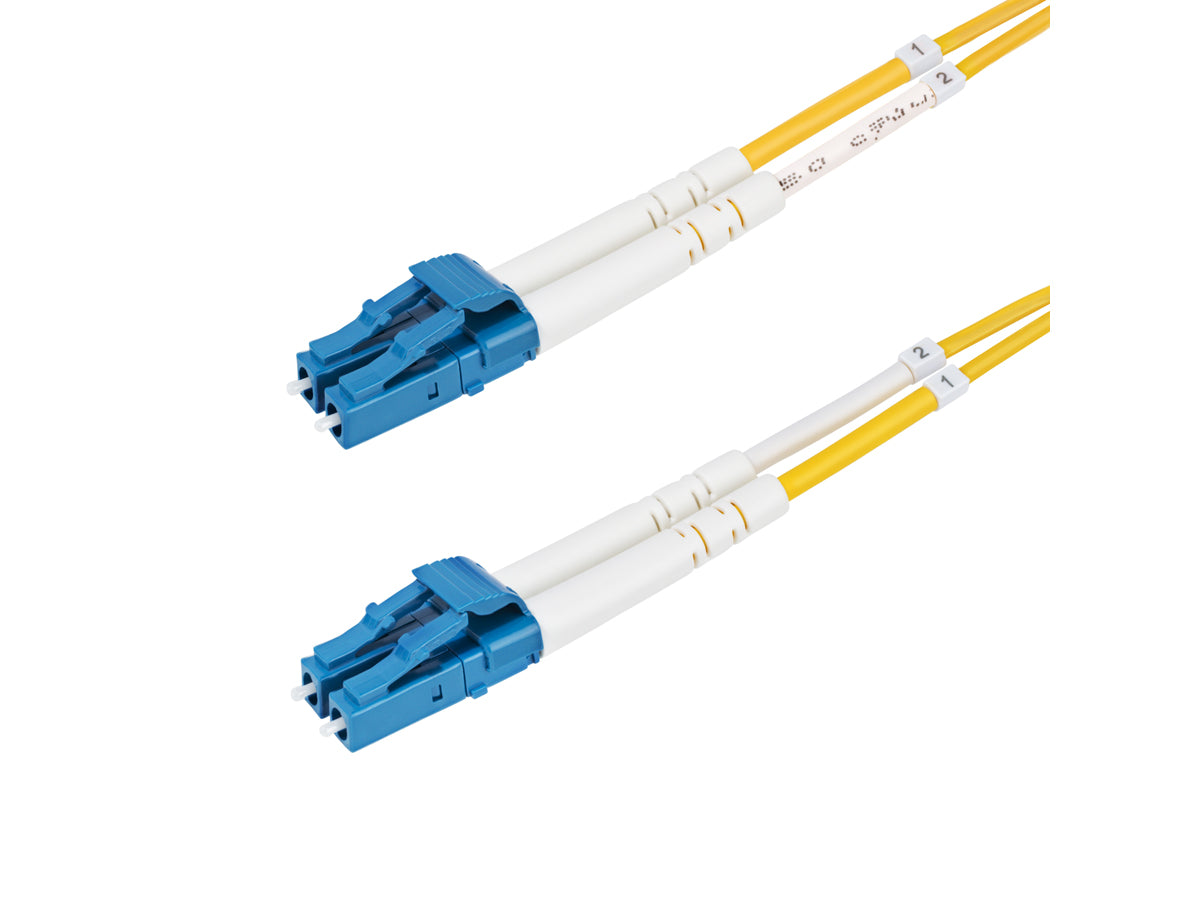

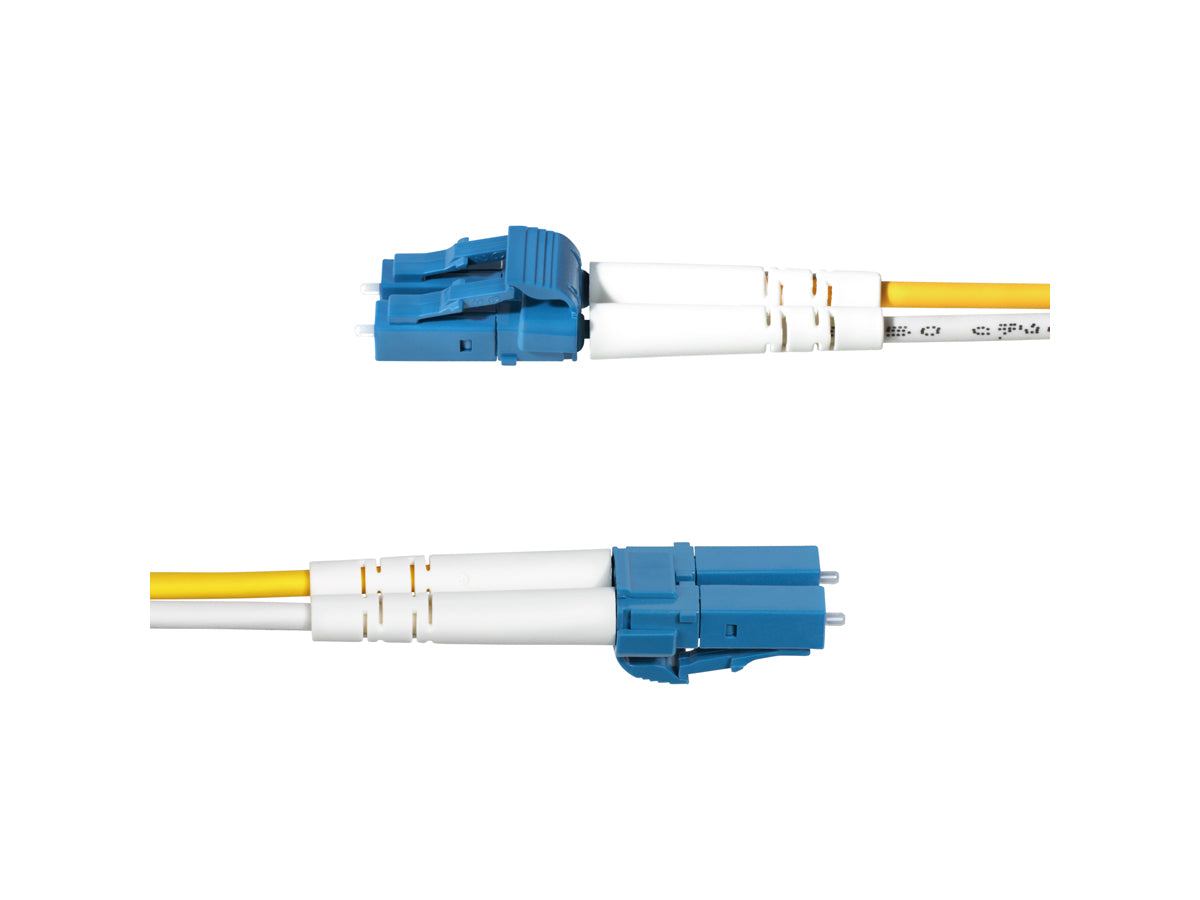

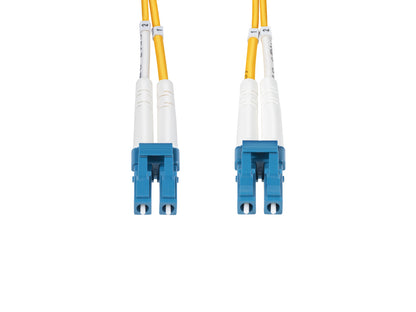

Startech.Com 15M (49.2Ft) Lc To Lc (Upc) Os2 Single Mode Duplex Fiber Optic Cable, 9/125µm, Laser Optimized, 10G, Bend Insensitive, Low Insertion Loss - Lszh Fiber Patch Cord (Smdos2Lclc15M) - Patch Cable - 15 M - Yellow

VPN:SMDOS2LCLC15M SKU:T592903 UPC:65030901772

Volume discount available - Ask for quote..

View full details

Recently Viewed

Startech.Com 15M (49.2Ft) Lc To Lc (Upc) Os2 Single Mode Duplex Fi

Product information summary

Startech.Com 15M (49.2Ft) Lc To Lc (Upc) Os2 Single Mode Duplex Fi

About the product

OS2 LC/LC Single Mode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, enhancing signal quality and performance capacity over OS1 cables. The bend-insensitive fiber and molded strain reliefs support cable runs requiring micro/macro bends while maintaining low attenuation. The OS2 patch cable is ideal for 1260-1625nm laser-optimized sources. Backward compatible with 9/125 fiber equipment, ensuring a reliable connection with legacy LANs. Housed in a Low-Smoke Zero-Halogen (LSZH) flame retardant jacket, this SM duplex fiber optic cable ensures minimal smoke, toxicity, and corrosion when exposed to extreme sources of heat or in the event of a fire. Capable of operating in a wide range of environments, including industrial settings, central offices, and schools, as well as residential settings where building codes are a consideration. Each OS2 fiber cable is also individually tested for for insertion loss and attenuation that meets or exceeds the ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards, for guaranteed compatibility and 100% reliability. This OS2 Fiber Patch Cable is backed for life, including free lifetime multi-lingual technical assistance.

Technical Specifications

Primary Information
Product Description: StarTech.com 15m (49.2ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, Laser Optimized, 10G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Patch Cord (SMDOS2LCLC15M) - patch cable - 15 m - yellow
Type: Patch cable - OS1/OS2
Technology: Duplex fiber optic
Type of Fiber Optics: Singlemode
Features: Halogen-free, passive adapter, bend insensitive, low insertion loss, wavelength of 1260-1625 nm, color coded connectors, Coarse Wavelength Division Multiplexing (CWDM) support, aramid fiber reinforced, bending radius 10mm, 0.3 dB insertion loss, 55 dB return loss, ceramic ferrule, up to 10 Gbps
Length: 15 m
Diameter: 0.1 in
Core / Cladding Diameter: 9 / 125 micron
Connector: 2 x LC/UPC single-mode - male
Connector (Second End): 2 x LC/UPC single-mode - male
Color: Yellow
Manufacturer Warranty: Limited lifetime warranty
General
Network Cable Type: Patch cable - OS1/OS2
Technology: Duplex fiber optic
Type of Fiber Optics: Singlemode
Jacket Material: Low Smoke Zero Halogen (LSZH)
Core / Cladding Diameter: 9 / 125 micron
Features: Halogen-free, passive adapter, bend insensitive, low insertion loss, wavelength of 1260-1625 nm, color coded connectors, Coarse Wavelength Division Multiplexing (CWDM) support, aramid fiber reinforced, bending radius 10mm, 0.3 dB insertion loss, 55 dB return loss, ceramic ferrule, up to 10 Gbps
Length: 15 m
Diameter: 0.1 in
Color: Yellow
Connectivity
Connector: 2 x LC/UPC single-mode - male
Connector (Second End): 2 x LC/UPC single-mode - male
Miscellaneous
Compliant Standards: EMI, WEEE
Dimensions & Weight (Shipping)
Shipping Width: 7.9 in
Shipping Depth: 8.7 in
Shipping Height: 0.5 in
Shipping Weight: 3.93 oz
Manufacturer Warranty
Service & Support: Limited lifetime warranty
Environmental Parameters
Min Operating Temperature: -4 °F
Max Operating Temperature: 140 °F
