Tripp Lite SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS

Tripp Lite SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS

Regular price $742.97 CAD
Regular price $832.12 CAD Sale price $742.97 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.
Tripp Lite SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS - 1500VA/900W - 4.5 Minute Full Load - 8 x IEC 320 EN 60320 C13

VPN:SMX1500LCD SKU:RSC608034 UPC:37332126078

  • Corrects under- and overvoltages from 144V to 282V
  • 8 C13 outlets
  • Interactive LCD monitoring screen

Volume discount available - Ask for quote..

View full details

Recently Viewed

Tripp Lite SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS

Product information summary

Tripp Lite SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS

About the product

The SMX1500LCD SmartPro 230V 1.5kVA 900W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, point-of-sale applications, VoIP systems and small business networks, the SMX1500LCD switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

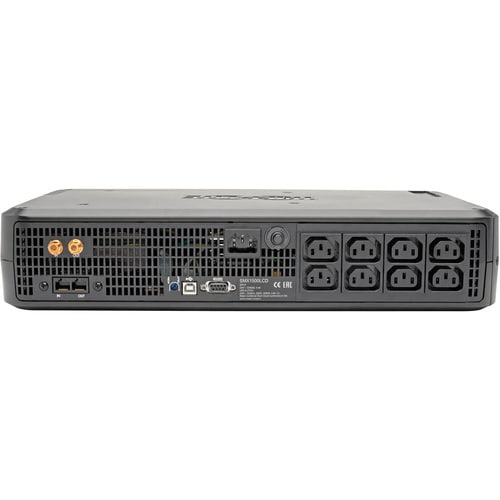

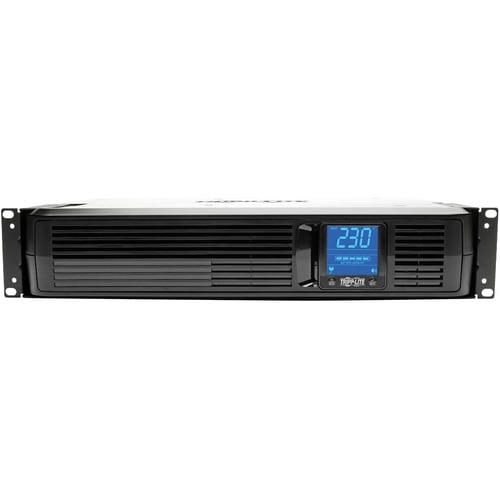

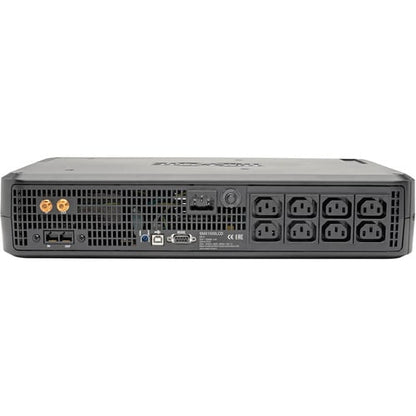

Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCD has a user-replaceable internal battery that provides 12 minutes of support at half load and 4.5 minutes at full load. It can also power an entry-level PC up to 60 minutes or a single DVR/VCR component up to three hours. A front-panel LCD screen lets you monitor operating data, such as voltage, battery and overload statuses.
Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 144V to 282V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. An 360-joule surge suppression rating protects your equipment from harmful power surges. USB communications port supports built-in power management and auto-shutdown features of Windows and Mac OS X or full featured monitoring and data-saving auto-shutdown options using Tripp Lite's free PowerAlert monitoring software.
  • Corrects under- and overvoltages from 144V to 282V
  • 8 C13 outlets
  • Interactive LCD monitoring screen
  • Monitoring of power conditions via POWERALERT12
  • 12 min. runtime at half load; 4.5 min. at full load

Technical Specifications

Interfaces/Ports
USBYes
Serial PortYes
Battery Information
Battery ChemistryLead Acid
Backup/Run Time (Half Load)13 Minute
Backup/Run Time (Full Load)4.50 Minute
Typical Battery Recharge Time8 Hour
Power Description
Input Voltage220 V AC
Output Voltage230 V AC
Load Capacity (VA)1.50 kVA
Load Capacity (Watt)900 W
Miscellaneous
Additional Information
  • Appearance: Attractive black color scheme

Output voltage regulation:

  • Battery Mode: PWM sine wave 230V +/-5%

Output frequency regulation:

  • Line Mode: Passes line frequency of 50/60Hz +/-10%
  • Battery Mode: Inverter output regulated to 50/60Hz +/-0.5Hz
Package Contents
  • SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS
  • SMX1500LCD Digital UPS System
  • USB cable, phone (RJ11) cable and coax cable
  • 2 C13-to-C14 jumper cables
  • 2 tower/rackmount brackets
  • Owner's manual with warranty information
Software IncludedPowerAlert Software
Certifications & Standards
  • CE /IEC 62040-1-1
  • 62040-1-2
  • FCC Class A (Emissions)
  • RoHS Compliant
  • GOST
  • SASO
Country of OriginChina
Technical Information
Dataline ProtectionRJ-11
Plug/Connector TypeIEC 320 EN 60320 C14
Receptacle TypeIEC 60320 C13
Transfer Time4 ms
Receptacle Detail8 x IEC 60320 C13
Physical Characteristics
Weight (Approximate)33.40 lb (15149.99 g)
Form FactorRack-mountable
Tower
Rack Height2U
Height3.50" (88.90 mm)
Width17.25" (438.15 mm)
Depth10.50" (266.70 mm)
General Information
Product TypeLine-interactive UPS
Manufacturer Part NumberSMX1500LCD
Manufacturer Website Addresshttp://www.eaton.com/EatonCom/Markets/NorthAmerica
ManufacturerEaton Corporation
Product ModelSMX1500LCD
Product NameSmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS
Product LineSmartPro
Brand NameTripp Lite by Eaton

Product compare

Product warranty

Standard manufacturer warranty as applicable

Return policy

15 days return in original condition.

Price guarantee

!00% we are always lower than market price.
