About the product
Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional network management card option. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

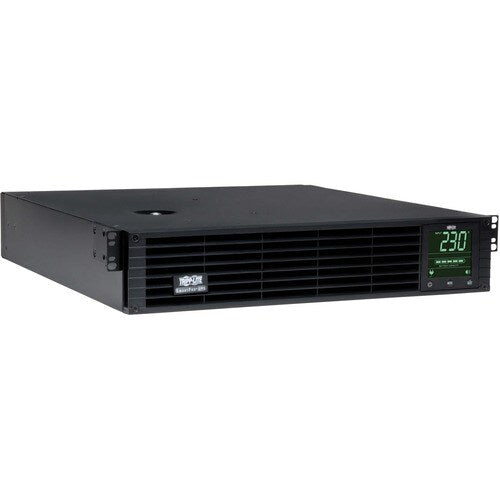

- 2.2kVA / 2200VA / 1920W line interactive 2U rack/tower UPS, Sine Wave
- 230V output, Corrects brownouts and overvoltages from 158V to 278V
- 0.9 Power Factor, Interactive LCD interface
- Extended runtime options up to 1600W

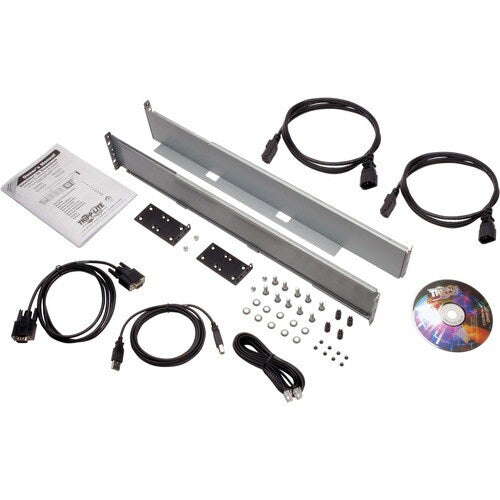

- 4 post compatible mounting accessories
- 98% line-mode efficiency, 2 switched load banks
- USB, RS232, EPO and slot for SNMPWEBCARD option

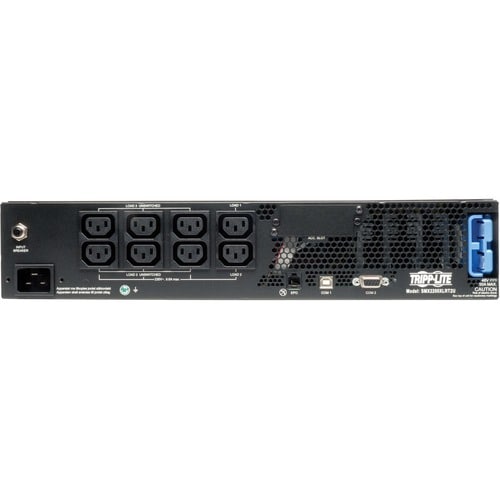

- 230V C20 inlet, 8 C13 outlets
Technical Specifications
| Controls/Indicators | |

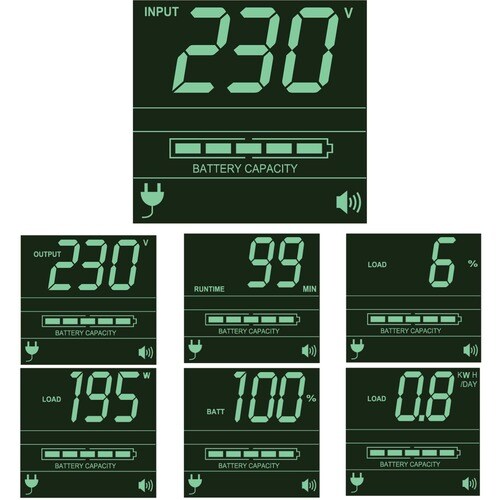

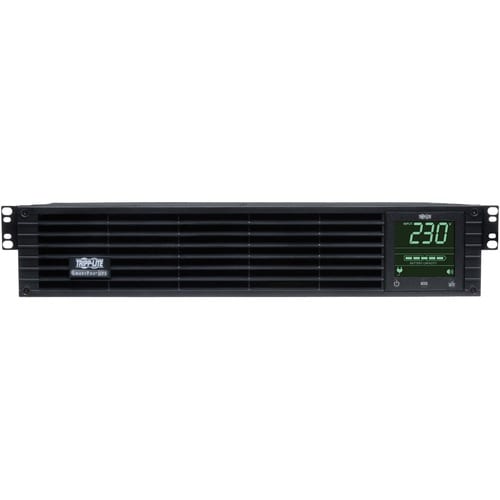

| Status Indicators | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options |
| Environmental Conditions | |
| Thermal Dissipation | 161 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 68.75 lb (31184.48 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 19.50" (495.30 mm) |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | UPS StartUp |
| UPS Fault | |
| Remote Shutdown | |
| Power Failure | |
| Overload | |
| Low Battery | |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 11.90 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Characteristics | Valve-regulated |
| Replaceable Battery | Yes |
| DC System Voltage | 48 V DC |
| Typical Battery Recharge Time | 4.50 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMX2200XLRT2U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SMX2200XLRT2U |
| Product Name | SmartPro SMX2200XLRT2U 2200VA Tower/Rack-mountable UPS |
| Product Line | SmartPro |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 230 V AC | |
| 220 V AC | |
| Input Current | 10.70 A |
| Surge Energy Rating | 350 J |
| Waveform Type | Pure Sine Wave |
| Output Frequency | 60 Hz |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Technical Information | |
| Application/Usage | Server |
| Network | |
| Telecommunication | |
| Emergency Power OFF | Yes |
| Protection Type | RFI |
| EMI | |
| Plug/Connector Type | IEC 60320 C20 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | Greater than 95% efficiency - GREEN UPS; Individually controllable load banks |
| Transfer Time | 6 ms |
| Receptacle Detail | 8 x IEC 60320 C13 |
