About the product

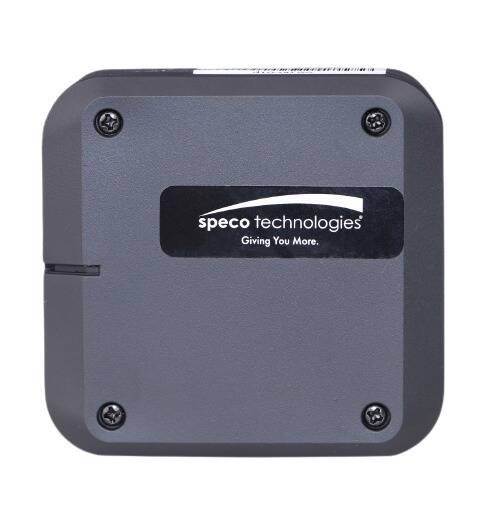

Speco SPE-A1 1 Door Access Controller Features
- Out of the box, a ready browser managed
- Embedded Linux operating system
- 2 Readers (In/Out)
- 2 Relays (Lock/Aux)
- 3 Inputs (REX, DPS, Aux) Global
- UL Listed- 294 Series 7
- 5-year warranty
- NDAA Compliant*
Speco SPE-A1 1 Door Access Controller Technical Specification
- Processor: Quad Core Cortex, 1.5 GHz
- Memory: 1GB DDR3 & 8GB eMMc
- Operating System: Embedded Linux
- Transactions: > 45 per second
- Power Requirements Regulated: 12VDC @ 2A, Class 2 (not supplied)
- Operating Temperature: 50°F to 95°F (10°C to 35°C)
- Enclosure Size (W x H x D): 3.2 x 3.0 x 1.3in (81 x 78 x 32mm)
- Standby Power Requirements: 350mA @ 12V
- Number of Doors: 2 Total, One In & One Reader
- Readers (Wiegand): 2 Total, One In & One Out Reader
- Reader Power:
- 300mA @ 12V Max per Reader
- 600mA @ 12V Max per System
- Request to Exit (REX): Input 1
- Door Position (status): Input 1
- Auxiliary Input: 1
- Tamper Digital Input 1
- Power Fault: Digital Input 1
- Door Lock Output: 1 Form C Relay, 24V @ 1.0A
- Auxiliary Output: 1 Form C Relay, 24V @ 1.0A
Technical Specifications
Speco SPE-A1 1 Door Access Controller Features
- Out of the box, a ready browser managed
- Embedded Linux operating system
- 2 Readers (In/Out)
- 2 Relays (Lock/Aux)
- 3 Inputs (REX, DPS, Aux) Global
- UL Listed- 294 Series 7
- 5-year warranty
- NDAA Compliant*
Speco SPE-A1 1 Door Access Controller Technical Specification
- Processor: Quad Core Cortex, 1.5 GHz
- Memory: 1GB DDR3 & 8GB eMMc
- Operating System: Embedded Linux
- Transactions: > 45 per second
- Power Requirements Regulated: 12VDC @ 2A, Class 2 (not supplied)
- Operating Temperature: 50°F to 95°F (10°C to 35°C)
- Enclosure Size (W x H x D): 3.2 x 3.0 x 1.3in (81 x 78 x 32mm)
- Standby Power Requirements: 350mA @ 12V
- Number of Doors: 2 Total, One In & One Reader
- Readers (Wiegand): 2 Total, One In & One Out Reader
- Reader Power:
- 300mA @ 12V Max per Reader
- 600mA @ 12V Max per System
- Request to Exit (REX): Input 1
- Door Position (status): Input 1
- Auxiliary Input: 1
- Tamper Digital Input 1
- Power Fault: Digital Input 1
- Door Lock Output: 1 Form C Relay, 24V @ 1.0A
- Auxiliary Output: 1 Form C Relay, 24V @ 1.0A
