About the product

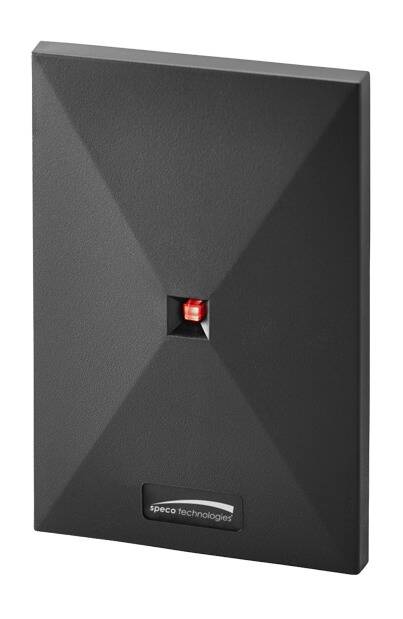

Speco SPE-AP500HA Single Gang Proximity Reader HID, AWID & 125kHz
Speco SPE-AP500HA Proximity Reader Features
- Up to 8 in of reading range
- Contactless Digital Radio Frequency Identification (RFID) technology
- Compliant with the Wiegand communication protocol
- IP67 compliant, weather resistant
- Tamper-resistant
- UL listed
- Lifetime warranty
- NDAA Compliant*
Speco SPE-AP500HA Proximity Reade Specification
- Technology: Proximity
- Frequency: 125 kHz
- Mounting: Metal or plastic US single-gang wall box, as well as flat surfaces
- Dimensions: 3” W × 4.6” H × 0.4” D (76 mm × 117 mm × 10 mm)
- Weight: 4oz (113g)
- Certifications: FCC, ICC, CE, C-Tick, UL Standard 294
- IP Code: IP67
- Voltage: +5-16 VDC
- Current Draw: 30mA typical, 75mA peak @ 12VDC
- Read Range: Up to 8 inches (202 mm)
- Cabling: 24 AWG minimum, multiconductor stranded with an overall foil shield
- Interface Wiegand: ABA Track II
- Operating Temperature: 40°F to 149°F (-40°C to 65°C)
- Color Options: Black and an ivory snap-on cover included standard
- Audio: Tone Beeper included standard
- Indoor & Outdoor: Installation Electronics sealed in weather- and tamper-resistant epoxy potting
- Warranty: Lifetime warranty
- LED: Four-state standard (red, green, amber, and off)
- Technologies Supported: Pyramid + certain HID® 125-kHz Proximity Protocols: + certain AWID® 125-kHz
- Proximity: Protocols
Technical Specifications
Speco SPE-AP500HA Single Gang Proximity Reader HID, AWID & 125kHz
Speco SPE-AP500HA Proximity Reader Features
- Up to 8 in of reading range
- Contactless Digital Radio Frequency Identification (RFID) technology
- Compliant with the Wiegand communication protocol
- IP67 compliant, weather resistant
- Tamper-resistant
- UL listed
- Lifetime warranty
- NDAA Compliant*
Speco SPE-AP500HA Proximity Reade Specification
- Technology: Proximity
- Frequency: 125 kHz
- Mounting: Metal or plastic US single-gang wall box, as well as flat surfaces
- Dimensions: 3” W × 4.6” H × 0.4” D (76 mm × 117 mm × 10 mm)
- Weight: 4oz (113g)
- Certifications: FCC, ICC, CE, C-Tick, UL Standard 294
- IP Code: IP67
- Voltage: +5-16 VDC
- Current Draw: 30mA typical, 75mA peak @ 12VDC
- Read Range: Up to 8 inches (202 mm)
- Cabling: 24 AWG minimum, multiconductor stranded with an overall foil shield
- Interface Wiegand: ABA Track II
- Operating Temperature: 40°F to 149°F (-40°C to 65°C)
- Color Options: Black and an ivory snap-on cover included standard
- Audio: Tone Beeper included standard
- Indoor & Outdoor: Installation Electronics sealed in weather- and tamper-resistant epoxy potting
- Warranty: Lifetime warranty
- LED: Four-state standard (red, green, amber, and off)
- Technologies Supported: Pyramid + certain HID® 125-kHz Proximity Protocols: + certain AWID® 125-kHz
- Proximity: Protocols
