About the product

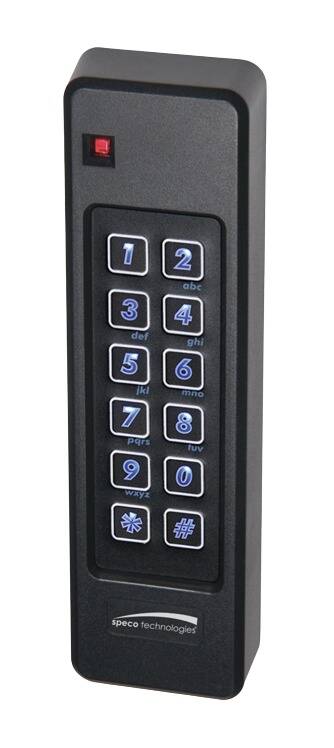

Speco SPE-AP620HA Mullion Keypad & Proximity Reader- HID, AWID, 125kHz
Speco SPE-AP620HA Keypad&Proximity Reader Features
- Up to 5 in of reading range
- Contactless Digital Radio Frequency Identification (RFID) technology
- Compliant with the Wiegand communication protocol
- IP67 compliant, weather resistant
- Tamper-resistant
- UL listed
- Lifetime warranty
- NDAA Compliant*
Speco SPE-AP620HA Keypad&Proximity Reader Specifications
- Technology: Proximity
- Frequency: 125 kHz
- Mounting: Mullions, including metal door and window frames, as well as flat surfaces
- Dimensions: 1.78” W × 6.1” H × 0.91” D (45 mm × 155 mm × 23 mm)
- Weight: 4oz (113g)
- Certifications: FCC, ICC, CE, C-Tick, UL Standard 294
- IP Code: IP67
- Voltage: +5-16 VDC
- Current Draw: 70mA typical, 110mA peak @ 12VDC
- Read Range: Up to 5 inches (126 mm)
- Cabling: 24 AWG minimum, multiconductor stranded with an overall foil shield
- Interface: Wiegand
- Operating Temperature: 40°F to 149°F (-40°C to 65°C)
- Color: Options Black snap-on cover included standard
- Audio: Tone Beeper included standard
- Indoor & Outdoor: Installation Electronics sealed in weather- and tamper-resistant epoxy potting
- Warranty: Lifetime warranty
- LED: Four-state standard (red, green, amber, and off)
- Keypad Output: Wiegand
- Technologies Supported: Pyramid + certain HID® 125-kHz Proximity Protocols: + certain AWID® 125-kHz
- Proximity: Protocols
Technical Specifications
Speco SPE-AP620HA Mullion Keypad & Proximity Reader- HID, AWID, 125kHz
Speco SPE-AP620HA Keypad&Proximity Reader Features
- Up to 5 in of reading range
- Contactless Digital Radio Frequency Identification (RFID) technology
- Compliant with the Wiegand communication protocol
- IP67 compliant, weather resistant
- Tamper-resistant
- UL listed
- Lifetime warranty
- NDAA Compliant*
Speco SPE-AP620HA Keypad&Proximity Reader Specifications
- Technology: Proximity
- Frequency: 125 kHz
- Mounting: Mullions, including metal door and window frames, as well as flat surfaces
- Dimensions: 1.78” W × 6.1” H × 0.91” D (45 mm × 155 mm × 23 mm)
- Weight: 4oz (113g)
- Certifications: FCC, ICC, CE, C-Tick, UL Standard 294
- IP Code: IP67
- Voltage: +5-16 VDC
- Current Draw: 70mA typical, 110mA peak @ 12VDC
- Read Range: Up to 5 inches (126 mm)
- Cabling: 24 AWG minimum, multiconductor stranded with an overall foil shield
- Interface: Wiegand
- Operating Temperature: 40°F to 149°F (-40°C to 65°C)
- Color: Options Black snap-on cover included standard
- Audio: Tone Beeper included standard
- Indoor & Outdoor: Installation Electronics sealed in weather- and tamper-resistant epoxy potting
- Warranty: Lifetime warranty
- LED: Four-state standard (red, green, amber, and off)
- Keypad Output: Wiegand
- Technologies Supported: Pyramid + certain HID® 125-kHz Proximity Protocols: + certain AWID® 125-kHz
- Proximity: Protocols
