About the product

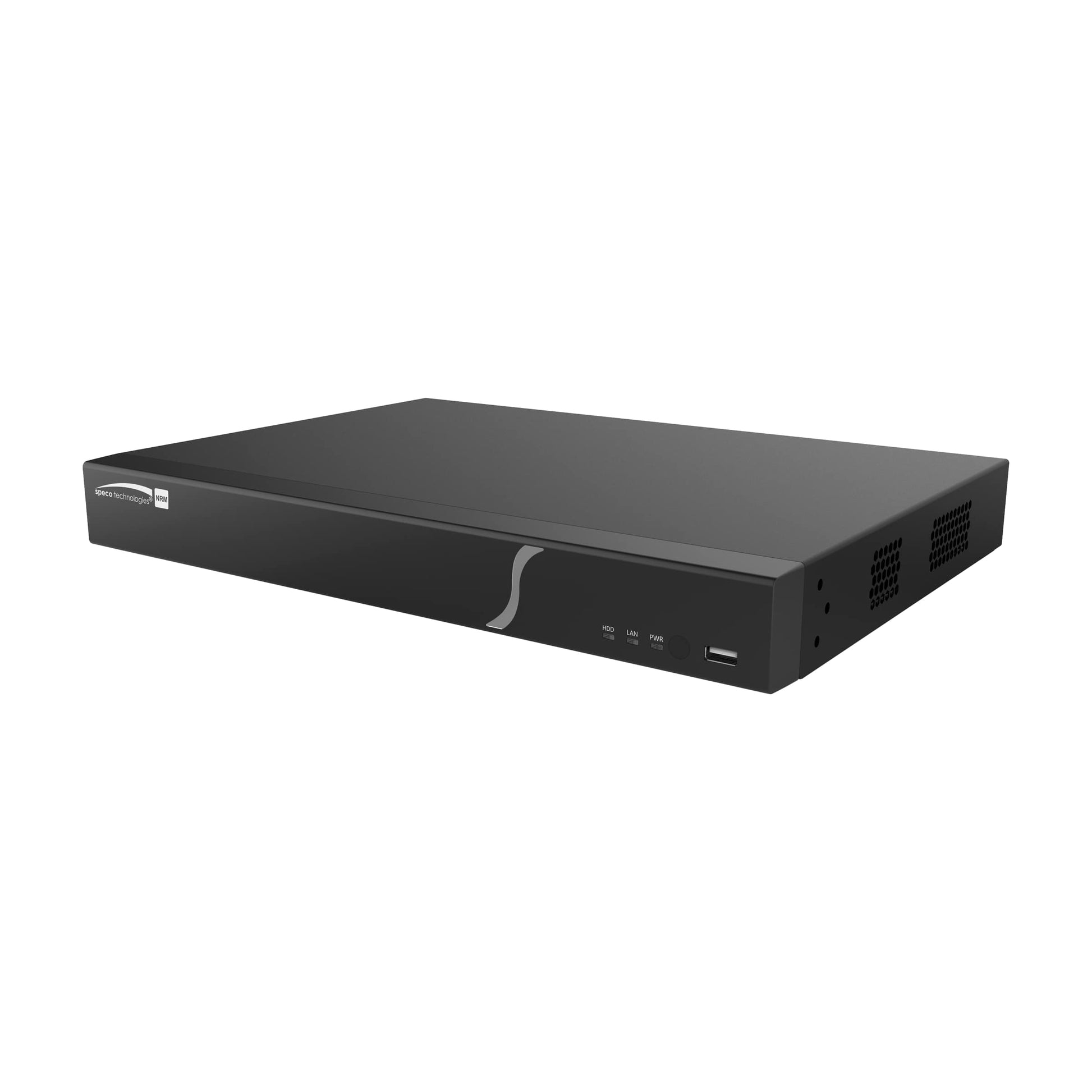

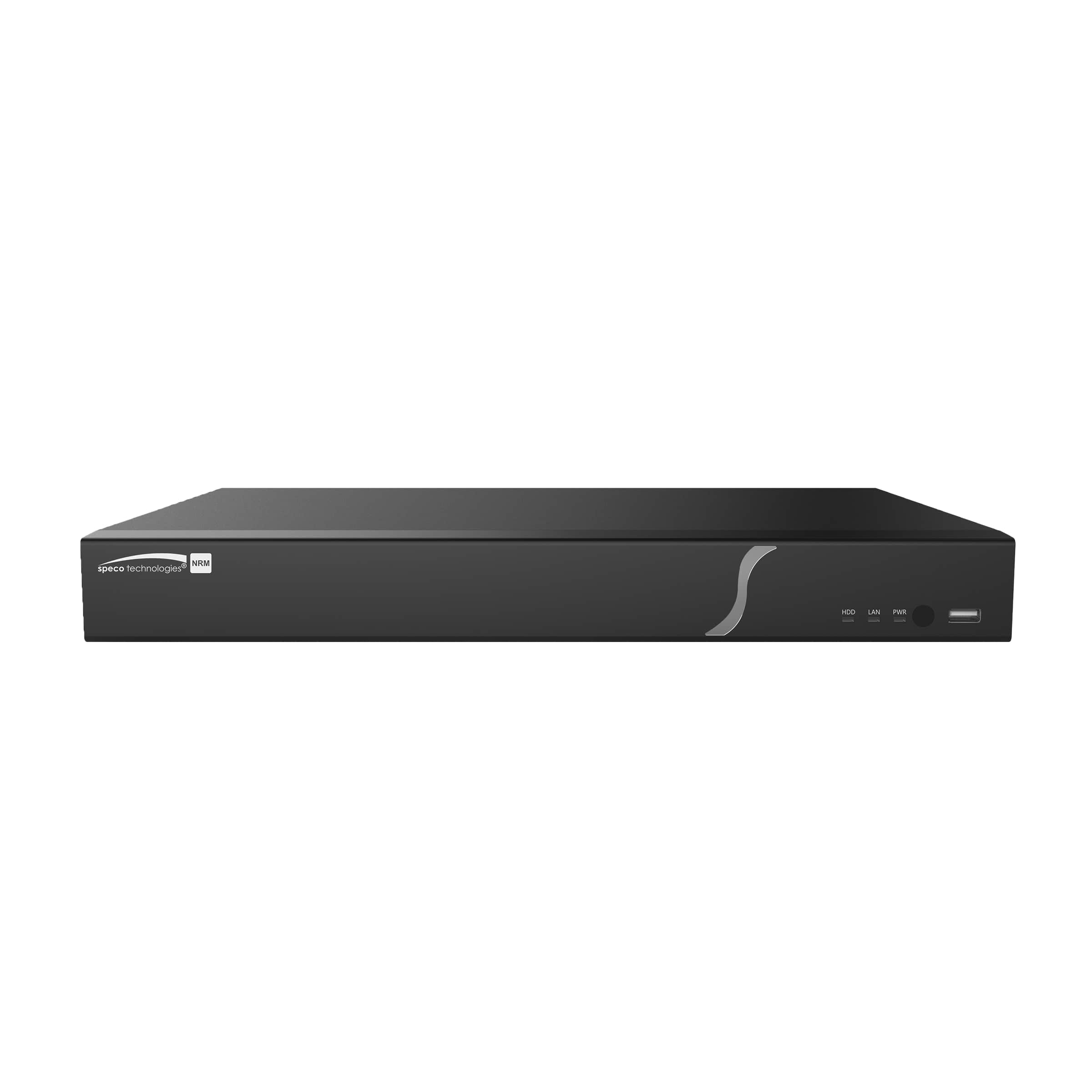

The Speco 4K H.265 NVR with Smart Analytics is a 4-port PoE-equipped NVR that supports recording up to 8MP/4K resolution at 30 fps along with a host of built-in analytics features like facial recognition, object and line-crossing zone detection, smart area search, and more (with applicable cameras). Built-in US-based DDNS and P2P services along with web browser integration allows for remote access and viewing from PC or mobile devices.
4K and VGA monitor output allows for high-resolution playback and flexible, custom surveillance and video playback settings. 1 available SATA port allows up to 16TB of storage; allowing for scalability from multi-camera, high-definition systems to more basic security backups and single-camera creative applications.
SPE-N4NRM Specs and Features:
- 4 available channels
- 4 PoE-equipped ports
- Power per PoE Port: 15.5W (802.3af)
- Total PoE Budget: 48W
- Up to 8 MP/4K @ 30 FPS recording resolution
- Facial recognition features are available with compatible camera hardware featuring Speco Facial Detection
- Object, line crossing, smart search and alerting available with compatible camera hardware featuring Speco Smart Analytics
- Additional Smart Analytics (with compatible camera hardware): People/Vehicle Detection, License Plate Recognition
- Video Input: H.264/H.265 Auto Detection (Max 8MP)
- Video Output: HDMI (Max. 4K) and VGA (Max. Full HD)
- Playback Resolutions: 1 x 8MP @ 30 FPS, 6 x 1080P @ 30 FPS
- Encoding Resolutions: 8MP/6MP/4MP/3MP/1080P/720P/960H/DI/CIF
- Recording Mode: Analytics/Continuous/Motion/Sensor/Schedule/Manual
- Pre-Recording: Max. 5 seconds
- Post Recording: Max. 10 minutes
- Search: EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log
- Smart Search: Highlighted color to display camera records in a certain period of time, different colors refer to different record events
- Backup Media: USB drive, Network
- Video Format: MP4, JPG, AVI, Proprietary NVR Formatting
- SATA Ports: 1
- Max HDD Capacity: 16 TB
- 2x USB 2.0 (Front & Rear)
- Alarm
- Mode: Manual, Sensor, Motion, Exception, Intelligence
- Input/ Output: IPC Alarm in / IPC Alarm out
- Linkage: Record/Snapshot/Preset/Email/Pop-up Window
- Network Bandwidth: 80 Mbps
- P2P/Dynamic DDS: Free US-Based Speco P2P and DDNS Service
- Network Protocols: TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Dimensions: 300mm x 249mm x 45mm (11.8” x 9.8” x 1.8”)
Technical Specifications
The Speco 4K H.265 NVR with Smart Analytics is a 4-port PoE-equipped NVR that supports recording up to 8MP/4K resolution at 30 fps along with a host of built-in analytics features like facial recognition, object and line-crossing zone detection, smart area search, and more (with applicable cameras). Built-in US-based DDNS and P2P services along with web browser integration allows for remote access and viewing from PC or mobile devices.
4K and VGA monitor output allows for high-resolution playback and flexible, custom surveillance and video playback settings. 1 available SATA port allows up to 16TB of storage; allowing for scalability from multi-camera, high-definition systems to more basic security backups and single-camera creative applications.
SPE-N4NRM Specs and Features:
- 4 available channels
- 4 PoE-equipped ports
- Power per PoE Port: 15.5W (802.3af)
- Total PoE Budget: 48W
- Up to 8 MP/4K @ 30 FPS recording resolution
- Facial recognition features are available with compatible camera hardware featuring Speco Facial Detection
- Object, line crossing, smart search and alerting available with compatible camera hardware featuring Speco Smart Analytics
- Additional Smart Analytics (with compatible camera hardware): People/Vehicle Detection, License Plate Recognition
- Video Input: H.264/H.265 Auto Detection (Max 8MP)
- Video Output: HDMI (Max. 4K) and VGA (Max. Full HD)
- Playback Resolutions: 1 x 8MP @ 30 FPS, 6 x 1080P @ 30 FPS
- Encoding Resolutions: 8MP/6MP/4MP/3MP/1080P/720P/960H/DI/CIF
- Recording Mode: Analytics/Continuous/Motion/Sensor/Schedule/Manual
- Pre-Recording: Max. 5 seconds
- Post Recording: Max. 10 minutes
- Search: EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log
- Smart Search: Highlighted color to display camera records in a certain period of time, different colors refer to different record events
- Backup Media: USB drive, Network
- Video Format: MP4, JPG, AVI, Proprietary NVR Formatting
- SATA Ports: 1
- Max HDD Capacity: 16 TB
- 2x USB 2.0 (Front & Rear)
- Alarm
- Mode: Manual, Sensor, Motion, Exception, Intelligence
- Input/ Output: IPC Alarm in / IPC Alarm out
- Linkage: Record/Snapshot/Preset/Email/Pop-up Window
- Network Bandwidth: 80 Mbps
- P2P/Dynamic DDS: Free US-Based Speco P2P and DDNS Service
- Network Protocols: TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Dimensions: 300mm x 249mm x 45mm (11.8” x 9.8” x 1.8”)
