About the product

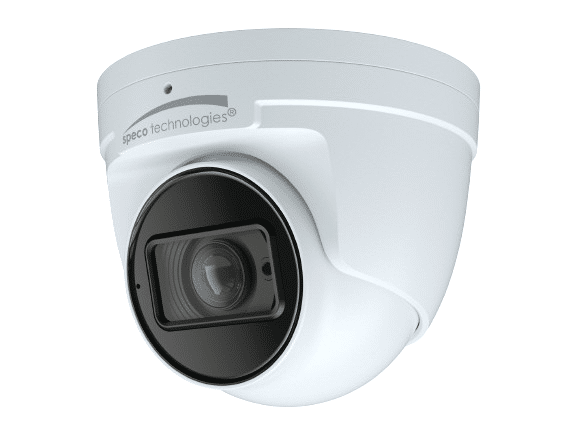

Speco 4MP H.265 AI IP Turret Camera,IR, 2.8-12mm Mot lens, JBox, White,NDAA Features:
- Supports up to 4MP @ 30fps
- Built-in standard PoE (IEEE 802.3af)
- H.265/H.264/MJPEG compression supported
- True Day/Night operation (IR cut filter)
- Adaptive IR LEDs reduce IR saturation
- IR range: Up to 165ft (depending on scene reflection)
- Micro SD slot up to 256GB (card not included)
- True WDR (wide dynamic range) operation
- IP67 compliant, weather resistant
- Junction box included (works with NPT/BSP specifications)
- Conformant with ONVIF Profile G/S/T
- 5-year warranty
- UL Listed*
*As of May 2023
Speco 4MP H.265 AI IP Turret Camera,IR, 2.8-12mm Mot lens, JBox, White,NDAA Specifications:
- Camera Specifications
- Image Sensor Progressive scan 1/3” CMOS, 4MP
- Maximum Resolution 2592 x 1520
- Field of View 100°~ 95.3°(H) , 54.5°~ 16.7°(V), 104.8°~ 33.1°(D)
- Minimum Illumination 0.003 lux @ F1.3, AGC ON, 0 lux (IR LED on)
- Day/Night Smart IR
- White Balance Auto, Indoor, Outdoor, Manual
- Compensation True WDR (120dB), BLC, HLC
- Electronic Shutter Speed 1/3 - 1/100000 sec.
- DNR 3D DNR
- Video Specifications
- Main Resolution 2592x1520 / 2560x1440 / 2304x1296 / 1920x1080 / 1280x720 @ 30fps
- Sub Stream 720P/ D1, CIF
- Third Stream D1/ CIF/ 480 X 240
- Compression H.265, H.264 (HP/MP/BP), MJPEG
- Video Settings Region of Interest, Privacy masking, Brightness, Contrast, Hue, Saturation, Denoise, Antiflicker, Day/Night mode, Infrared settings, Exposure, Gain, Corridor Pattern, Image flip/mirror
- Bitrate Control VBR, CBR (64Kbps ~ 10Mbps)
- Multiple Streaming 3 streams
- Network Specifications
- Protocols UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS
- DDNS support Speco DDNS (free of charge)
- Security User ID & Password protection, IP/Mac address filtering, digest authentication
- User Access Max. 10 simultaneous users, Actual number of users may vary depending on bandwidth
- Client Specifications
- Web Browser Support Google Chrome, Edge, Safari, Fire Fox, Windows (Internet Explorer 8 and up)
- PC Application SecureGuard® VMS, SecureGuard® CMS
- Mobile SecureGuard® Client, Speco Blue (iPhone® and Android™)
- Audio Specifications
- Audio Codec G.711A / G.711U
- Interfaces
- Ethernet 10/100 Mbps
- Power DC jack
- Microphone Input Mono 3.5mm + built-in mic
- Audio Output No
- Card Slot MicroSD, up to 256GB (not included)
- Alarm No
- Reset Yes
- System Specifications:
- PoE Standard (IEEE 802.3af)
- Analytics Motion, Exception, Line Crossing, Region Intrusion, Object Detection, Vehicle/People Detection, Face Detection, People/Vehicle Counting & Tampering Detection
- Alarm Triggers Analytics, SD card error
- Alarm Events FTP upload, email upload
- Image Settings Watermark, IP address filtering, video mask, password protection
- Operating & Unit Specifications
- Power PoE, 12VDC (power supply not included)
- Power Consumption < 7.5W
- Operating Temperature -40°F ~ 140°F
- Operating Humidity Less than 95 % (non-condensing)
- Unit Dimensions 3.7” (?) x 3.25” (H)
- Unit Weight 1 lb.
- Certifications FCC, UL-listed
Technical Specifications
Speco 4MP H.265 AI IP Turret Camera,IR, 2.8-12mm Mot lens, JBox, White,NDAA Features:
- Supports up to 4MP @ 30fps
- Built-in standard PoE (IEEE 802.3af)
- H.265/H.264/MJPEG compression supported
- True Day/Night operation (IR cut filter)
- Adaptive IR LEDs reduce IR saturation
- IR range: Up to 165ft (depending on scene reflection)
- Micro SD slot up to 256GB (card not included)
- True WDR (wide dynamic range) operation
- IP67 compliant, weather resistant
- Junction box included (works with NPT/BSP specifications)
- Conformant with ONVIF Profile G/S/T
- 5-year warranty
- UL Listed*
*As of May 2023
Speco 4MP H.265 AI IP Turret Camera,IR, 2.8-12mm Mot lens, JBox, White,NDAA Specifications:
- Camera Specifications
- Image Sensor Progressive scan 1/3” CMOS, 4MP
- Maximum Resolution 2592 x 1520
- Field of View 100°~ 95.3°(H) , 54.5°~ 16.7°(V), 104.8°~ 33.1°(D)
- Minimum Illumination 0.003 lux @ F1.3, AGC ON, 0 lux (IR LED on)
- Day/Night Smart IR
- White Balance Auto, Indoor, Outdoor, Manual
- Compensation True WDR (120dB), BLC, HLC
- Electronic Shutter Speed 1/3 - 1/100000 sec.
- DNR 3D DNR
- Video Specifications
- Main Resolution 2592x1520 / 2560x1440 / 2304x1296 / 1920x1080 / 1280x720 @ 30fps
- Sub Stream 720P/ D1, CIF
- Third Stream D1/ CIF/ 480 X 240
- Compression H.265, H.264 (HP/MP/BP), MJPEG
- Video Settings Region of Interest, Privacy masking, Brightness, Contrast, Hue, Saturation, Denoise, Antiflicker, Day/Night mode, Infrared settings, Exposure, Gain, Corridor Pattern, Image flip/mirror
- Bitrate Control VBR, CBR (64Kbps ~ 10Mbps)
- Multiple Streaming 3 streams
- Network Specifications
- Protocols UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS
- DDNS support Speco DDNS (free of charge)
- Security User ID & Password protection, IP/Mac address filtering, digest authentication
- User Access Max. 10 simultaneous users, Actual number of users may vary depending on bandwidth
- Client Specifications
- Web Browser Support Google Chrome, Edge, Safari, Fire Fox, Windows (Internet Explorer 8 and up)
- PC Application SecureGuard® VMS, SecureGuard® CMS
- Mobile SecureGuard® Client, Speco Blue (iPhone® and Android™)
- Audio Specifications
- Audio Codec G.711A / G.711U
- Interfaces
- Ethernet 10/100 Mbps
- Power DC jack
- Microphone Input Mono 3.5mm + built-in mic
- Audio Output No
- Card Slot MicroSD, up to 256GB (not included)
- Alarm No
- Reset Yes
- System Specifications:
- PoE Standard (IEEE 802.3af)
- Analytics Motion, Exception, Line Crossing, Region Intrusion, Object Detection, Vehicle/People Detection, Face Detection, People/Vehicle Counting & Tampering Detection
- Alarm Triggers Analytics, SD card error
- Alarm Events FTP upload, email upload
- Image Settings Watermark, IP address filtering, video mask, password protection
- Operating & Unit Specifications
- Power PoE, 12VDC (power supply not included)
- Power Consumption < 7.5W
- Operating Temperature -40°F ~ 140°F
- Operating Humidity Less than 95 % (non-condensing)
- Unit Dimensions 3.7” (?) x 3.25” (H)
- Unit Weight 1 lb.
- Certifications FCC, UL-listed
