About the product

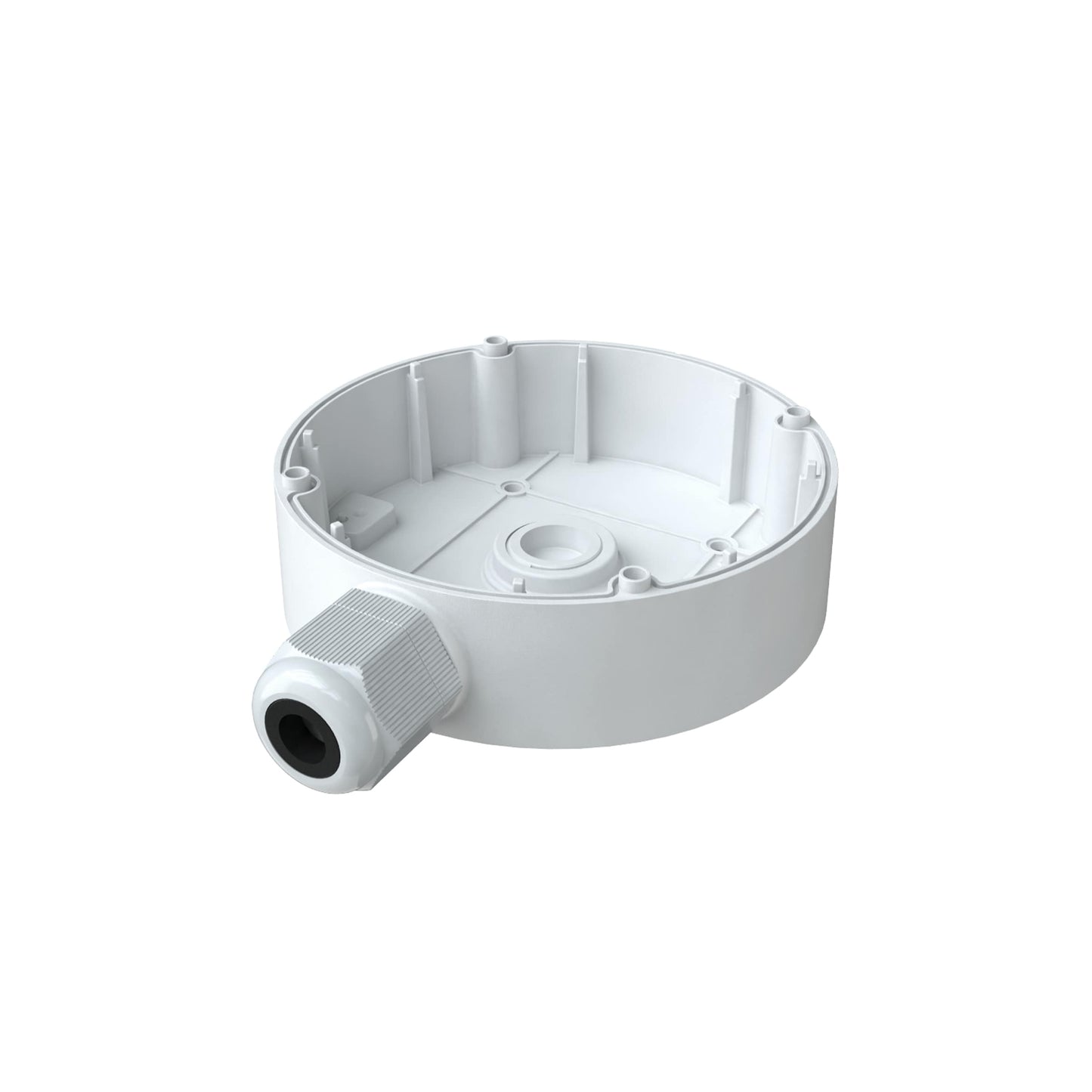

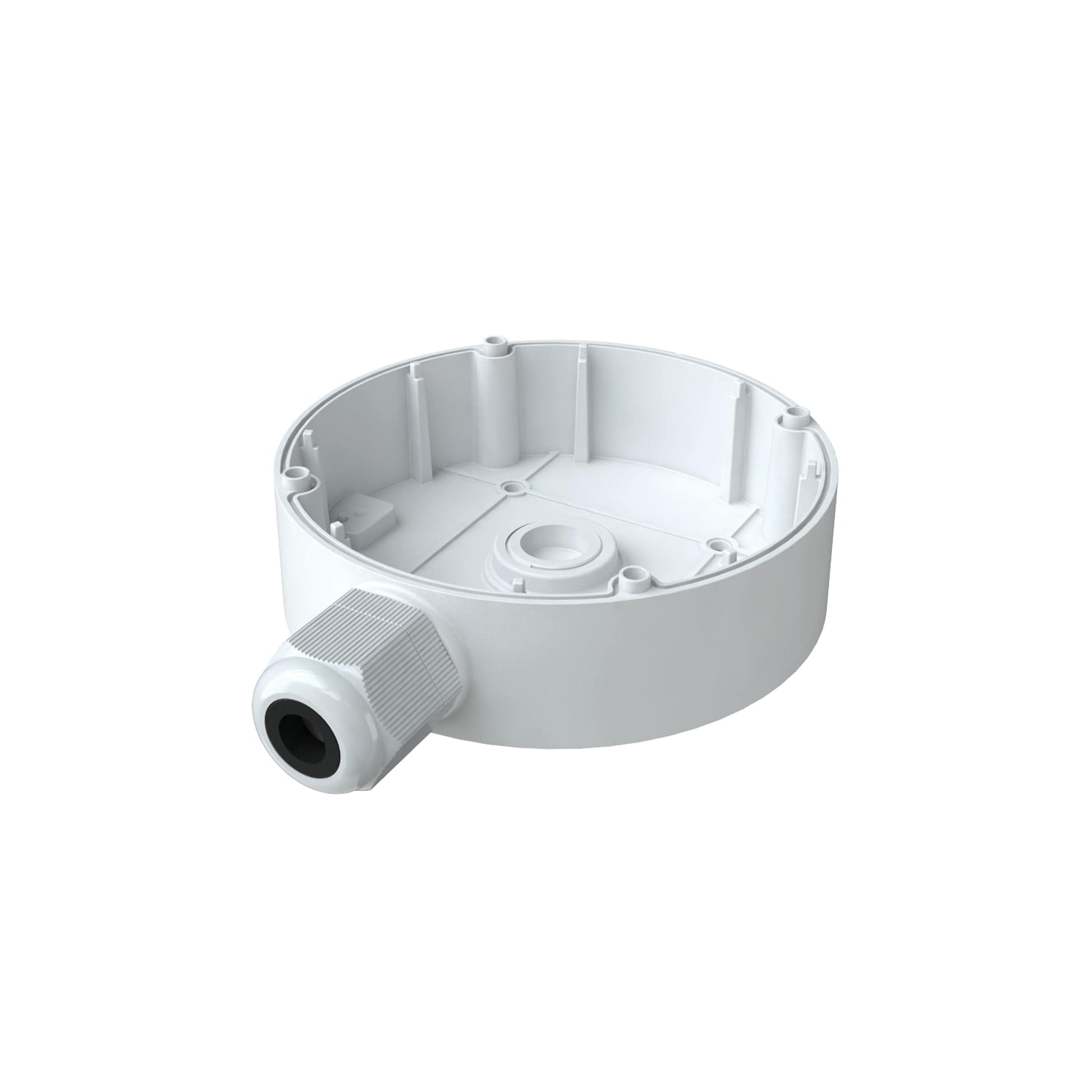

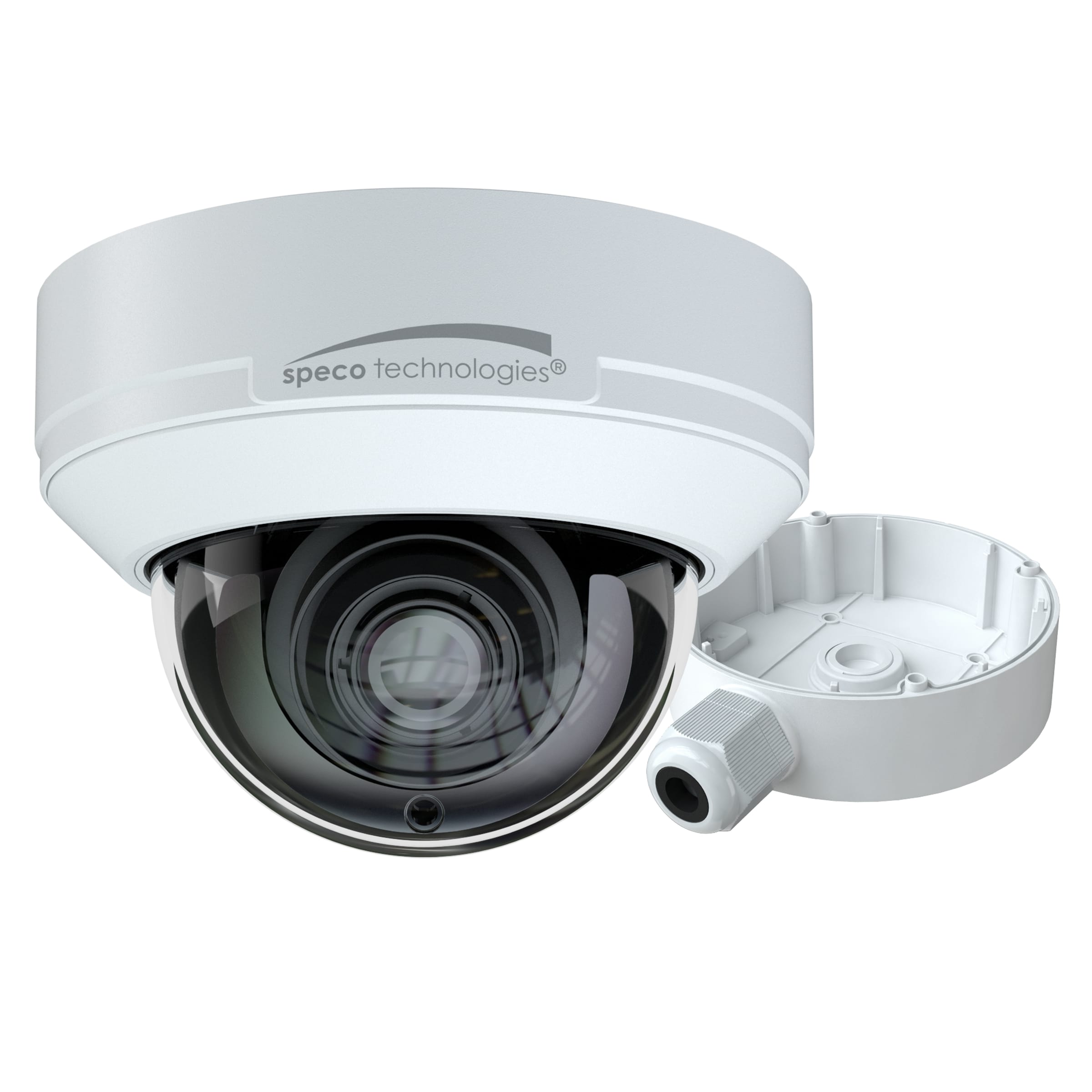

The Speco 2MP HD-TVI IR Dome Camera with Junction Box is a 2.8mm-12mm motorized lens dome camera that supports 1080p HD resolution and 2MP still resolution at frame rates up to 30 fps over coax cabling. Supports HD-TVI, CVI, AHD and 960H Analog connections. True WDR prevents bright lights from washing out the image, and analog IR provides night time recording up to 98 feet away. The IK10 compliant, vandal resistant hosing and IP67 weather resistant exterior allows for rugged, secure installations in high-traffic and weather-exposed areas, and OSD control allows hardware-level zooming and focus control for dedicated operators. 12VDC power supply not included. Junction box included. NDAA Compliant.
SPE-VLD9M Specs and Features
- Image Sensor: 1/2.8” CMOS, 2MP
- Minimum Illumination:
- Color: 0.001 lux @F1.2, (AGC ON)
- BW: 0 lux (IR ON)
- Image Size: 1920 x 1080
- Video Output: AHD/TVI/CVI/CVBS
- Electronic Shutter: 1/30s ~ 1/50000s
- IR Distance: 32.8ft ~ 98ft
- Frame Rate: 30fps
- Lens Mount: M12
- Lens Width: 2.8mm - 12mm (zoom)
- S/N Ratio: ? 52dB (AGC OFF)
- Function Control: OSD (COC Control)
- Day & Night: Yes, Smart IR
- WDR: Yes
- DNR: 3D DNR
- AGC: Yes
- Auto White Balance: Yes
- Compensation: BLC
- Angle Adjustment: Pan (0° ~ 355°); Tilt (0° ~ 67°); Rotation (0° ~ 355°)
- Power: 12VDC (power supply not included)
- Power Consumption:
- IR OFF: < 1.5W
- IR ON: < 4.5W
- IP67 Weatherproof Housing
- IK10 Vandal Resistance
- Operating Temperature: -22°F ~ 122°F
- Operating Humidity: 10% ~ 90% RH
- Unit Dimensions: 5.55” (Dia.) x 3.94” (L)
- Unit Weight: 1.81 lbs.
- Package Includes: 1x SPE-VLD9M, 1x Junction Box, mounting hardware, instructions
- 5-year Manufacturer’s Warranty
Technical Specifications
The Speco 2MP HD-TVI IR Dome Camera with Junction Box is a 2.8mm-12mm motorized lens dome camera that supports 1080p HD resolution and 2MP still resolution at frame rates up to 30 fps over coax cabling. Supports HD-TVI, CVI, AHD and 960H Analog connections. True WDR prevents bright lights from washing out the image, and analog IR provides night time recording up to 98 feet away. The IK10 compliant, vandal resistant hosing and IP67 weather resistant exterior allows for rugged, secure installations in high-traffic and weather-exposed areas, and OSD control allows hardware-level zooming and focus control for dedicated operators. 12VDC power supply not included. Junction box included. NDAA Compliant.
SPE-VLD9M Specs and Features
- Image Sensor: 1/2.8” CMOS, 2MP
- Minimum Illumination:
- Color: 0.001 lux @F1.2, (AGC ON)
- BW: 0 lux (IR ON)
- Image Size: 1920 x 1080
- Video Output: AHD/TVI/CVI/CVBS
- Electronic Shutter: 1/30s ~ 1/50000s
- IR Distance: 32.8ft ~ 98ft
- Frame Rate: 30fps
- Lens Mount: M12
- Lens Width: 2.8mm - 12mm (zoom)
- S/N Ratio: ? 52dB (AGC OFF)
- Function Control: OSD (COC Control)
- Day & Night: Yes, Smart IR
- WDR: Yes
- DNR: 3D DNR
- AGC: Yes
- Auto White Balance: Yes
- Compensation: BLC
- Angle Adjustment: Pan (0° ~ 355°); Tilt (0° ~ 67°); Rotation (0° ~ 355°)
- Power: 12VDC (power supply not included)
- Power Consumption:
- IR OFF: < 1.5W
- IR ON: < 4.5W
- IP67 Weatherproof Housing
- IK10 Vandal Resistance
- Operating Temperature: -22°F ~ 122°F
- Operating Humidity: 10% ~ 90% RH
- Unit Dimensions: 5.55” (Dia.) x 3.94” (L)
- Unit Weight: 1.81 lbs.
- Package Includes: 1x SPE-VLD9M, 1x Junction Box, mounting hardware, instructions
- 5-year Manufacturer’s Warranty
