About the product

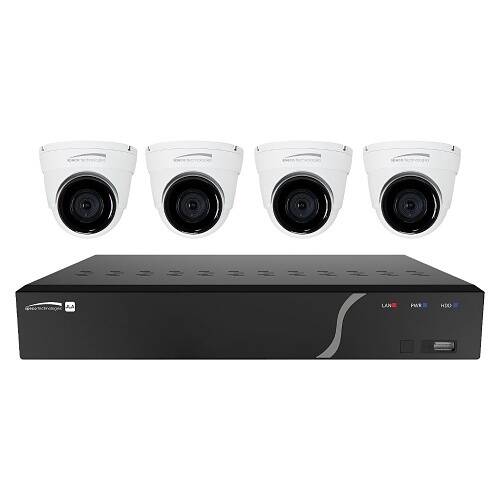

The Speco 4-Channel, 4TB NVR with 4 Digital Deterrent Turret Cameras includes everything you need to deploy a security system right out of the box. Digital Deterrent Technology also allows for up to 8 separate audio files to be triggered upon subject detection, adding an extra layer of security that can ward off would-be intruders (additional hardware required for audio playback, see SPE-WBM6TA).
True day/night operation and IP67 weather resistance ensures 24/7 recording and security for indoor or outdoor installation. Advanced analytics like line crossing, object detection, region intrusion and video blurring alerts reduce false alarms and enhance security.
Kit includes everything required to implement a security camera system immediately out of the box: Network Video Recorder with 4TB security-rated hard drive pre-installed, four O4VT2 2.8mm 5MP cameras, four 60ft Ethernet cables for camera connection, one 3ft Ethernet cable for NVR networking, Remote control (batteries included), USB mouse, 48V power adapter and HDMI cable.
SPE-ZIP44T4 Specs and Features
Camera Specifications (O4VT2)
- Image Sensor: Progressive scan 1/3” CMOS, 4MP
- Maximum Resolution: 2560 x 1440 (4MP)
- Field of View: 94° (H), 50° (V), 115°(D)
- Minimum Illumination: 0.005 lux @ F1.6, AGC ON; 0 lux with IR
- Image Settings: Region of interest, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Defog, Sharpen, Noise Reduction
- Day/Night: Smart IR up to 100’ (depending on scene reflection)
- Compensation: True WDR, BLC, HLC
- Electronic Shutter Speed: 1/2 - 1/100000 sec.
- DNR: 3D DNR
- Angle Adjustment: Pan 0°-360°, Tilt 0°-75°, Rotation 0°-360°
- Video Specifications:
- Main Resolution: 2560x1440 / 2304x1296 / 1920x1080 @ 30fps
- Sub stream: Resolution 720p (1-15fps), D1, CIF (1-30fps)
- Third Stream: D1, CIF, 480x240 (1-30fps)
- Compression: H.265, H.264
- Bitrate Control: VBR, CBR (64Kbps ~ 5Mbps)
- Multiple Streaming: 3 streams
- Network Specifications:
- Protocols: UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, 802.1x, UPnP, HTTP, HTTPS, QoS
- DDNS: Supports Speco DDNS (free of charge)
- Security: User ID & Password protection, IP/Mac address filtering, digest authentication
- User Access: Max. 4 simultaneous users, Actual number of users may vary adepending on bandwidth
- Audio Compression: G.711A / G.711U
- Interfaces:
- Ethernet: RJ45 Jack
- Power: DC Jack
- Audio In: 3.5mm input, Built-in mic
- Audio Out: No
- Card Slot: MicroSD, up to 256GB (not included)
- Alarm In/Out: No
- Reset: Yes
- System Specifications:
- PoE Standard: (IEEE 802.3af)
- Detection: Events Line crossing, object detection, region intrusion and video blurring detection
- Alert Triggers: Motion, Detection Events, SD card error
- Image Settings: Watermark, IP address filtering, video mask, password protection, Corridor mode
- Client Specifications
- Web Browser: Supports Chrome, Edge, Safari, Firefox, Internet Explorer
- PC Application: SecureGuard® VMS, SecureGuard® CMS
- Mobile: SecureGuard® Client, Speco Blue (iPhone® and Android™)
- Operating & Unit Specifications
- Power: PoE, 12VDC (power supply not included)
- Power Consumption: < 5W
- Operating Temperature: -40°F ~ 140°F
- Operating Humidity: Less than 95 % (non-condensing)
- Unit Dimensions: 4.2” (Dia.) x 3.75” (H)
- Unit Weight: 1.0 lb.
- Certifications: FCC
Technical Specifications
The Speco 4-Channel, 4TB NVR with 4 Digital Deterrent Turret Cameras includes everything you need to deploy a security system right out of the box. Digital Deterrent Technology also allows for up to 8 separate audio files to be triggered upon subject detection, adding an extra layer of security that can ward off would-be intruders (additional hardware required for audio playback, see SPE-WBM6TA).
True day/night operation and IP67 weather resistance ensures 24/7 recording and security for indoor or outdoor installation. Advanced analytics like line crossing, object detection, region intrusion and video blurring alerts reduce false alarms and enhance security.
Kit includes everything required to implement a security camera system immediately out of the box: Network Video Recorder with 4TB security-rated hard drive pre-installed, four O4VT2 2.8mm 5MP cameras, four 60ft Ethernet cables for camera connection, one 3ft Ethernet cable for NVR networking, Remote control (batteries included), USB mouse, 48V power adapter and HDMI cable.
SPE-ZIP44T4 Specs and Features
Camera Specifications (O4VT2)
- Image Sensor: Progressive scan 1/3” CMOS, 4MP
- Maximum Resolution: 2560 x 1440 (4MP)
- Field of View: 94° (H), 50° (V), 115°(D)
- Minimum Illumination: 0.005 lux @ F1.6, AGC ON; 0 lux with IR
- Image Settings: Region of interest, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Defog, Sharpen, Noise Reduction
- Day/Night: Smart IR up to 100’ (depending on scene reflection)
- Compensation: True WDR, BLC, HLC
- Electronic Shutter Speed: 1/2 - 1/100000 sec.
- DNR: 3D DNR
- Angle Adjustment: Pan 0°-360°, Tilt 0°-75°, Rotation 0°-360°
- Video Specifications:
- Main Resolution: 2560x1440 / 2304x1296 / 1920x1080 @ 30fps
- Sub stream: Resolution 720p (1-15fps), D1, CIF (1-30fps)
- Third Stream: D1, CIF, 480x240 (1-30fps)
- Compression: H.265, H.264
- Bitrate Control: VBR, CBR (64Kbps ~ 5Mbps)
- Multiple Streaming: 3 streams
- Network Specifications:
- Protocols: UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, 802.1x, UPnP, HTTP, HTTPS, QoS
- DDNS: Supports Speco DDNS (free of charge)
- Security: User ID & Password protection, IP/Mac address filtering, digest authentication
- User Access: Max. 4 simultaneous users, Actual number of users may vary adepending on bandwidth
- Audio Compression: G.711A / G.711U
- Interfaces:
- Ethernet: RJ45 Jack
- Power: DC Jack
- Audio In: 3.5mm input, Built-in mic
- Audio Out: No
- Card Slot: MicroSD, up to 256GB (not included)
- Alarm In/Out: No
- Reset: Yes
- System Specifications:
- PoE Standard: (IEEE 802.3af)
- Detection: Events Line crossing, object detection, region intrusion and video blurring detection
- Alert Triggers: Motion, Detection Events, SD card error
- Image Settings: Watermark, IP address filtering, video mask, password protection, Corridor mode
- Client Specifications
- Web Browser: Supports Chrome, Edge, Safari, Firefox, Internet Explorer
- PC Application: SecureGuard® VMS, SecureGuard® CMS
- Mobile: SecureGuard® Client, Speco Blue (iPhone® and Android™)
- Operating & Unit Specifications
- Power: PoE, 12VDC (power supply not included)
- Power Consumption: < 5W
- Operating Temperature: -40°F ~ 140°F
- Operating Humidity: Less than 95 % (non-condensing)
- Unit Dimensions: 4.2” (Dia.) x 3.75” (H)
- Unit Weight: 1.0 lb.
- Certifications: FCC
