About the product
The Speco 16-Channel Silver Series Surveillance Kit is an all-in-one NVR and 12-camera system with a built-in 4TB hard drive. Simplified QR-code based app setup makes remote app monitoring, live-viewing and notifications seamless for any level of end-user on PC, iOS and mobile apps. The included O5K2 Speco cameras provide 2.8mm ultra-wide-angle lenses for excellent perimeter monitoring; and with 5MP HD video, 100 ft. IR True Day/Night operation, and IP66 compliant weather resistant housing, the Silver Series is an excellent, no-hassle IP camera security system built for convenient and quick installation and implementation—even in challenging outdoor conditions.

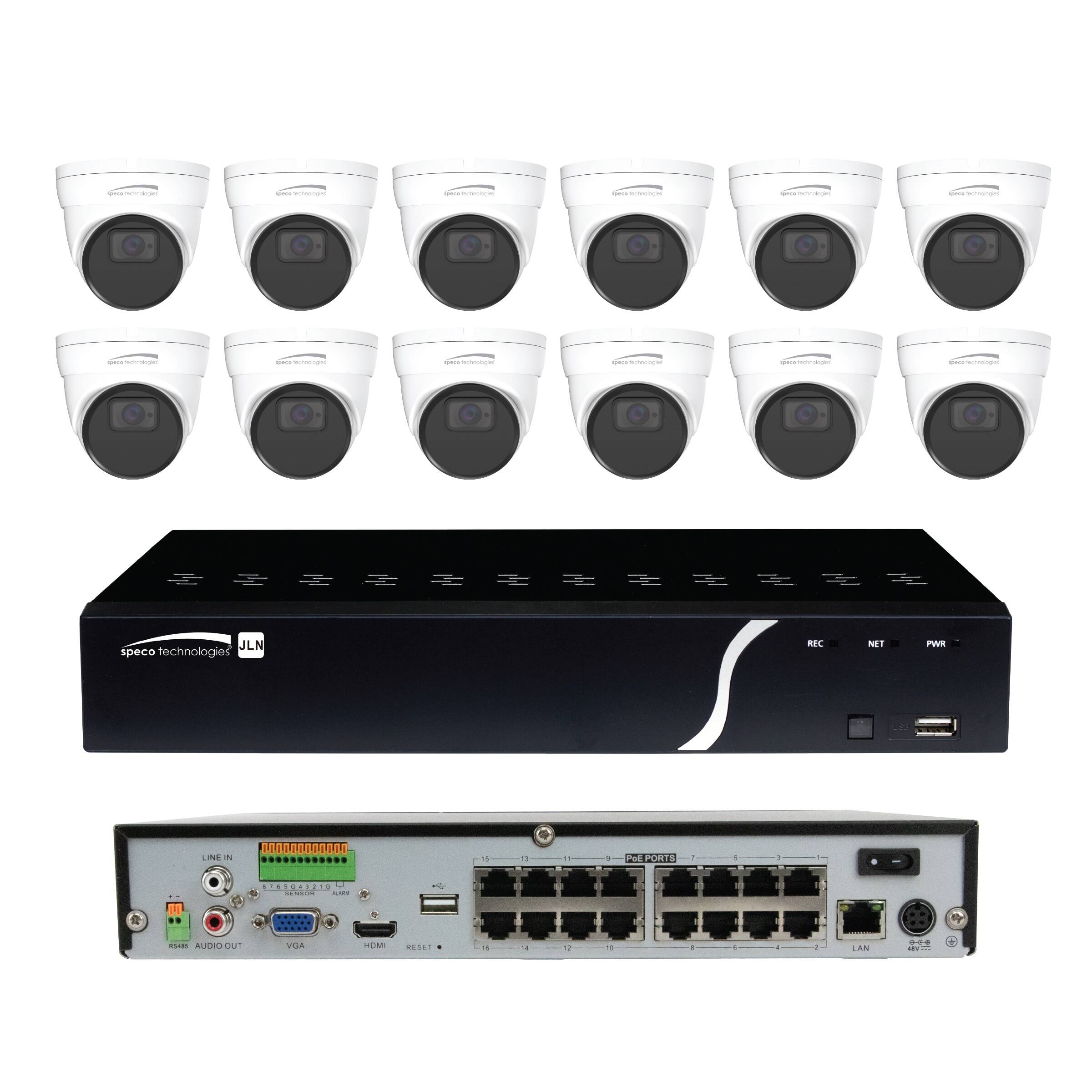

Kit includes everything required to implement a security camera system immediately out of the box: NVR with pre-installed 4TB hard drive, twelve 5MP cameras, twelve 60ft Ethernet cables for camera connection, one 3ft Ethernet cable for NVR networking, Remote control (batteries included), USB mouse, 48V power adapter and HDMI cable.
Please note: the included O5K2 5MP cameras only work with the Speco Silver Series Surveillance kits and cannot be used with other systems.
SPE-ZIPK16N1 Specs and Features:
- Recorder Specifications
- NDAA Compliant
- Max. Bit Rate:
- Input: 112Mbps
- Output: 96Mbps
- Max. Recording Resolution: 8MP
- PoE Ports: 16
- Monitor Output: 1 HDMI, 1 VGA
- Display Resolutions:
- VGA: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080
- HDMI: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440, 3840 x 2160/EDID
- USB Ports: 1 x USB 2.0 (Front), 1 x USB 2.0 (Rear)
- HDD Slots: 2 (Up to 10TB each)
- Ethernet: RJ-45 (100/1000M) port
- Remote Viewing: Speco Silver Viewer (Windows, Mac), Speco Silver App (iOS, Android)
- Power Supply: 48VDC, 1.5A (included)
- Dimensions: 11.8"" (W) x 2.1"" (H) x 8.9"" (D)
- Model: N16JLN
- Camera Specifications
- Image Sensor: 1/2.7"" 5MP CMOS
- Resolution: 2592 x 1944
- Minimum Illumination
- BW: 0 Lux (IR LED on)
- Color: 0.05 Lux @ F1.2 (AGC On)
- Day/Night: IR Cut Filter with Auto Switch
- Compensation: DWDR
- White Balance: Auto / Manual / Indoor
- Electronic Shutter Speed: 1/5 ~ 1/20000 sec
- DNR: 3D
- IR Range: 100 ft. (Depending on Scene Reflection)
- Compression: H.265, H.264
- Bitrate Control: VBR, CBR
- Multiple Streaming: 2 Streams
- Ethernet: 10/100 Mbps
- Power: PoE/12VDC (Power Supply Not Included)
- Power Consumption: 7W
- Operating Temperature: -22°F - 131°F
- Operating Humidity: 0% - 90% RH
- Unit Dimensions: 3.35"" (H) x 3.55"" (Dia.)
- Unit Weight: 1.5 lbs.
- Camera Model Number: O5K2 (*Only Works with Silver Series Kits)
Technical Specifications
The Speco 16-Channel Silver Series Surveillance Kit is an all-in-one NVR and 12-camera system with a built-in 4TB hard drive. Simplified QR-code based app setup makes remote app monitoring, live-viewing and notifications seamless for any level of end-user on PC, iOS and mobile apps. The included O5K2 Speco cameras provide 2.8mm ultra-wide-angle lenses for excellent perimeter monitoring; and with 5MP HD video, 100 ft. IR True Day/Night operation, and IP66 compliant weather resistant housing, the Silver Series is an excellent, no-hassle IP camera security system built for convenient and quick installation and implementation—even in challenging outdoor conditions.

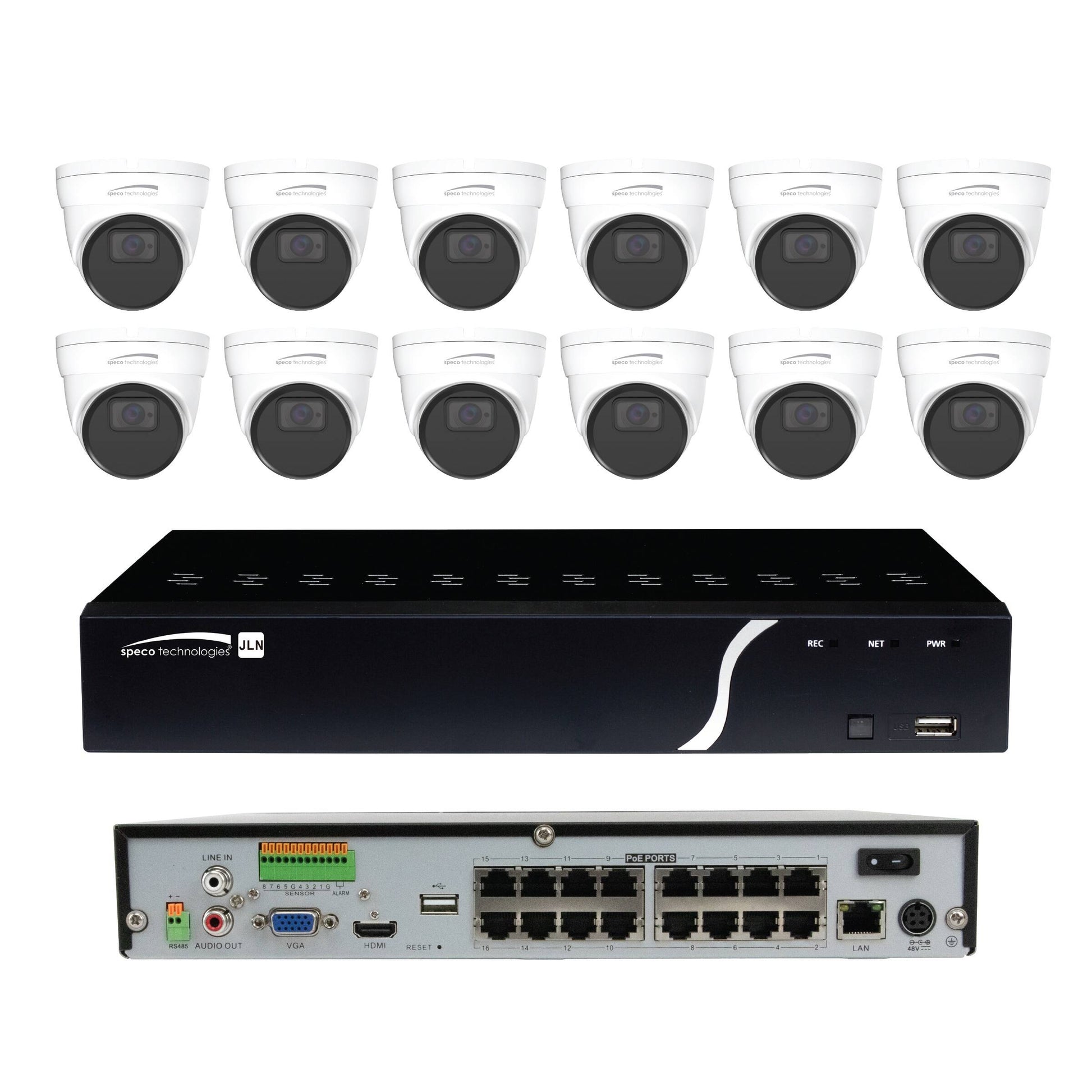

Kit includes everything required to implement a security camera system immediately out of the box: NVR with pre-installed 4TB hard drive, twelve 5MP cameras, twelve 60ft Ethernet cables for camera connection, one 3ft Ethernet cable for NVR networking, Remote control (batteries included), USB mouse, 48V power adapter and HDMI cable.
Please note: the included O5K2 5MP cameras only work with the Speco Silver Series Surveillance kits and cannot be used with other systems.
SPE-ZIPK16N1 Specs and Features:
- Recorder Specifications
- NDAA Compliant
- Max. Bit Rate:
- Input: 112Mbps
- Output: 96Mbps
- Max. Recording Resolution: 8MP
- PoE Ports: 16
- Monitor Output: 1 HDMI, 1 VGA
- Display Resolutions:
- VGA: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080
- HDMI: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440, 3840 x 2160/EDID
- USB Ports: 1 x USB 2.0 (Front), 1 x USB 2.0 (Rear)
- HDD Slots: 2 (Up to 10TB each)
- Ethernet: RJ-45 (100/1000M) port
- Remote Viewing: Speco Silver Viewer (Windows, Mac), Speco Silver App (iOS, Android)
- Power Supply: 48VDC, 1.5A (included)
- Dimensions: 11.8"" (W) x 2.1"" (H) x 8.9"" (D)
- Model: N16JLN

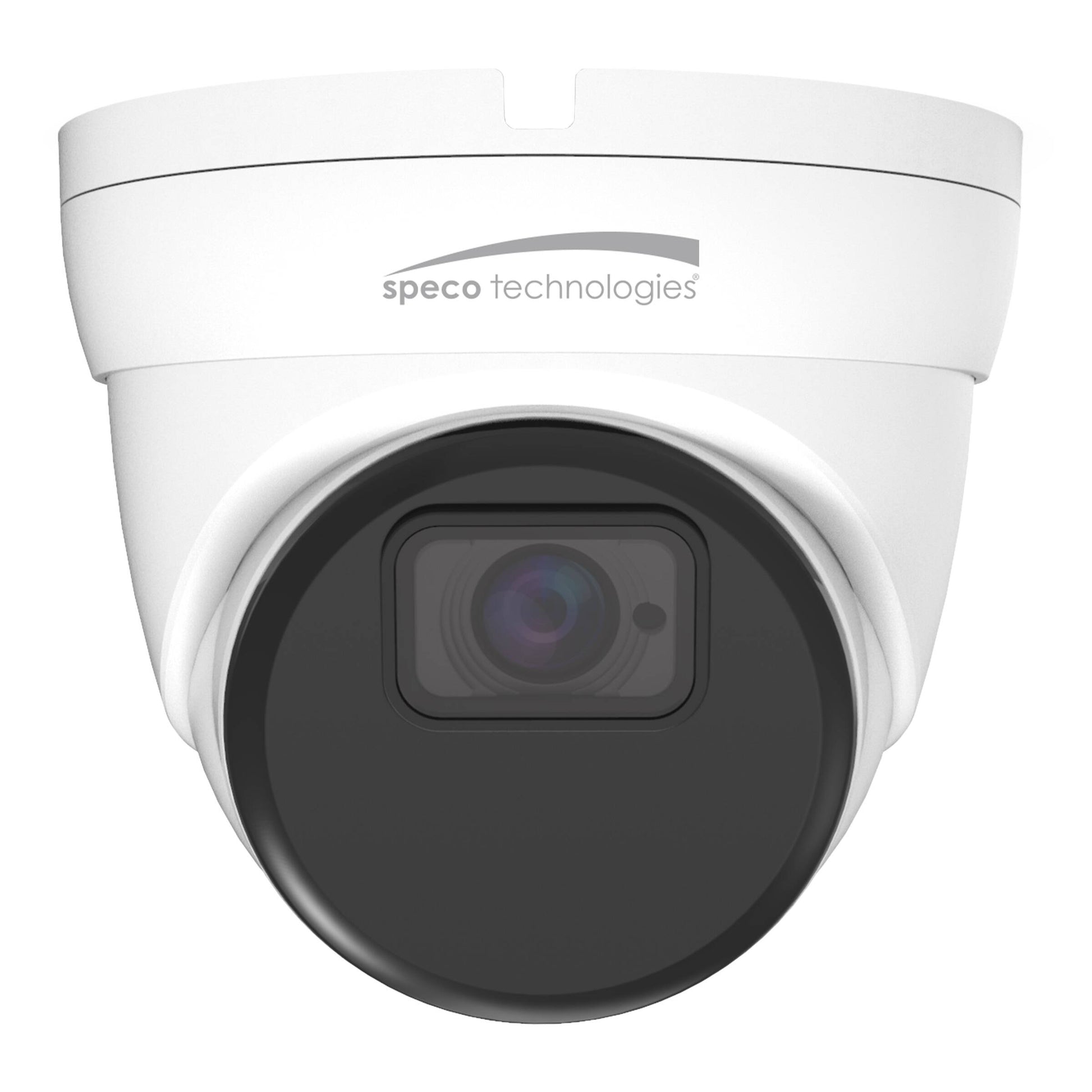

- Camera Specifications
- Image Sensor: 1/2.7"" 5MP CMOS
- Resolution: 2592 x 1944
- Minimum Illumination
- BW: 0 Lux (IR LED on)
- Color: 0.05 Lux @ F1.2 (AGC On)
- Day/Night: IR Cut Filter with Auto Switch
- Compensation: DWDR
- White Balance: Auto / Manual / Indoor
- Electronic Shutter Speed: 1/5 ~ 1/20000 sec
- DNR: 3D
- IR Range: 100 ft. (Depending on Scene Reflection)
- Compression: H.265, H.264
- Bitrate Control: VBR, CBR
- Multiple Streaming: 2 Streams
- Ethernet: 10/100 Mbps
- Power: PoE/12VDC (Power Supply Not Included)
- Power Consumption: 7W
- Operating Temperature: -22°F - 131°F
- Operating Humidity: 0% - 90% RH
- Unit Dimensions: 3.35"" (H) x 3.55"" (Dia.)
- Unit Weight: 1.5 lbs.
- Camera Model Number: O5K2 (*Only Works with Silver Series Kits)
