About the product

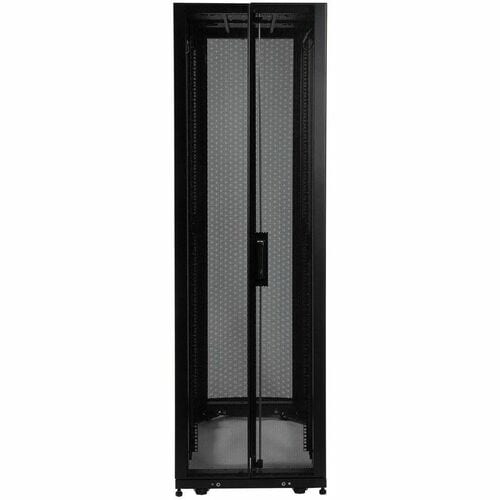

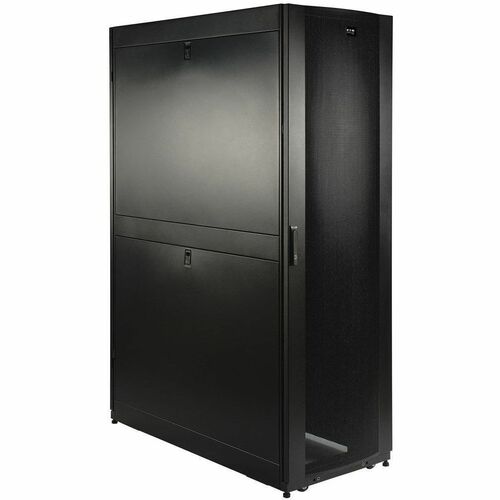

A DEEP version of our standard 42U SmartRack. The SR42UBCL enclosure is 1200mm deep (47.25") compared to the standard 1070mm deep (42"). This extra depth allows for high density equipment installations. It allows extra space for moving the cable management back as well as providing space for mounted equipment that has hot-swap, removable power supplies out the back of the enclosure. All features from the standard SmartRacks carry over to these wide racks to allow cross usage of accessories. Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance.
- 48" (1200mm) depth for mounting extra-deep equipment
- Standard 24" (600mm) width for optimizing floor space
- Ships fully assembled
- 3000 lb stationary / 2250 lb rolling load capacity
- Locking, removable, reversible front and rear doors; Locking, removable side panels keyed alike with doors
- Pre-installed casters and leveling feet; Rolls through standard 7 foot doorway
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Technical Specifications
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | Tripp Lite Airflow Optimization Accessories as well as Cable Management Accessories |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 315 lb (142881.60 g) |
| Rack Height | 42U |
| Height | 78.50" (1993.90 mm) |
| Width | 24" (609.60 mm) |
| Depth | 47.25" (1200.15 mm) |
| Static/Stationary Weight Capacity | 3000 lb (1360777.11 g) |
| Dynamic/Rolling Weight Capacity | 2250 lb (1020582.83 g) |
| General Information | |
| Product Type | Rack Cabinet |
| Manufacturer Part Number | SR42UBDP |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SR42UBDP |
| Product Name | SR42UBDP Rack Enclosure Server Cabinet DEEP 42U |
| Product Line | SmartRack |
| Brand Name | Tripp Lite by Eaton |
