About the product

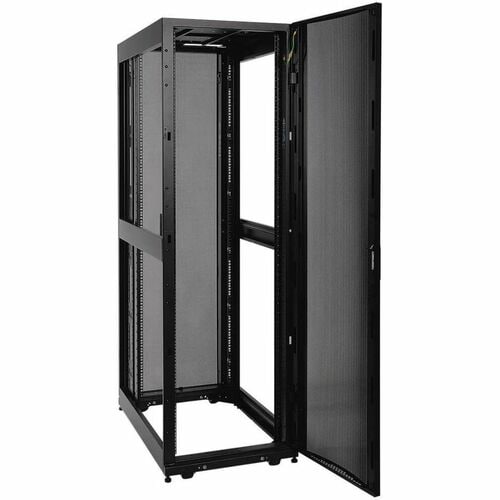

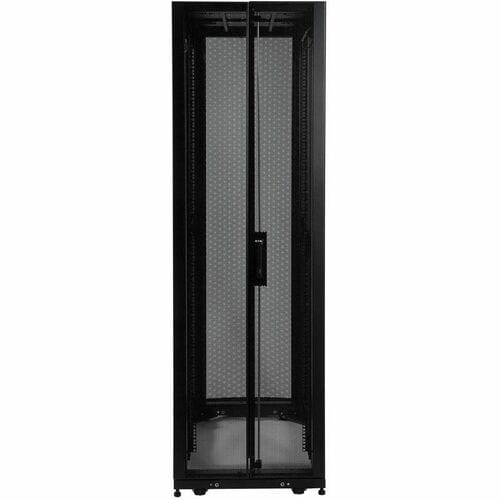

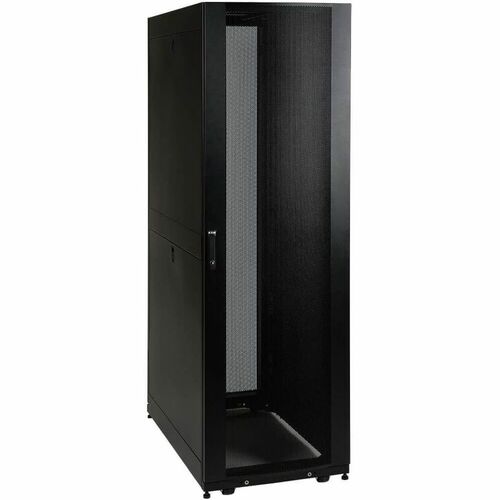

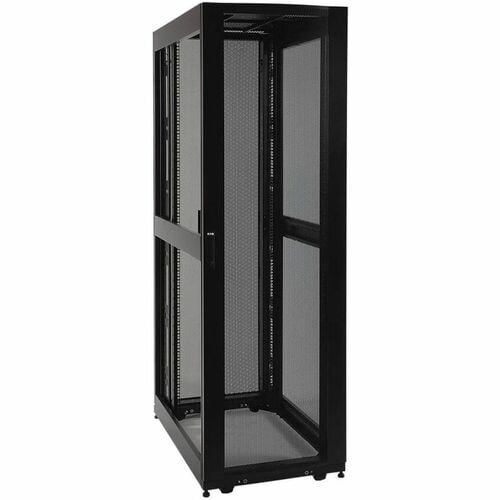

Tripp Lite's SR42UBSD SmartRack enclosures are designed for secure, high density server and networking applications in IT environments. Same features as our original depth enclosure except in a smaller footprint for tight areas. Vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-E compliant 19" equipment. Enclosures ship fully assembled for rapid deployment on heavy-duty casters. Toolless mounting slots and adjustable mounting rails. Lightweight modular doors and side panels provide safe, convenient service access. Integrated baying tabs facilitate combining enclosures in rows. SmartRack enclosures hold up to 3000 lbs and support cooling, cable management, power distribution and monitoring features. Perforated doors permit massive front to rear airflow. Enclosures are fully compatible with hot-aisle / cold-aisle data center configurations. Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance.
- Ideal for shallow depth A/V equipment or any venue with limited floorspace
- 32" (825mm) depth (with mounting depth increments of 4 to 27") and standard 24" (600mm) width
- Ships fully assembled
- 3000 lb stationary / 2250 lb rolling load capacity
- Locking, removable, reversible front and rear doors; Locking, removable side panels keyed alike with doors
Technical Specifications
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | Airflow optimization accessories as well as cable management accessories |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Rack Cabinet |
| Manufacturer Part Number | SR42UBSD |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SR42UBSD |
| Product Name | SmartRack SR42UBSD Premium Rack Cabinet |
| Product Line | SmartRack |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 260.15 lb (118000 g) |
| Units Per Pallet | 1 |
| Rack Width | 19" (482.60 mm) |
| Rack Height | 42U |
| Height | 78.50" (1993.90 mm) |
| Width | 23.63" (600.20 mm) |
| Depth | 32" (812.80 mm) |
| Static/Stationary Weight Capacity | 3000 lb (1360777.11 g) |
| Dynamic/Rolling Weight Capacity | 2250 lb (1020582.83 g) |
| Product Color | Black |
| Color Family | Black |
