About the product

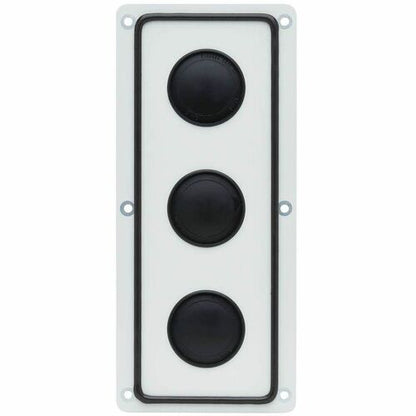

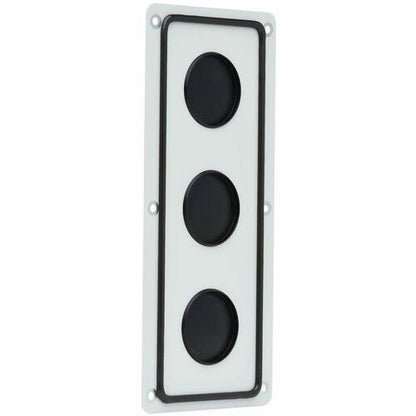

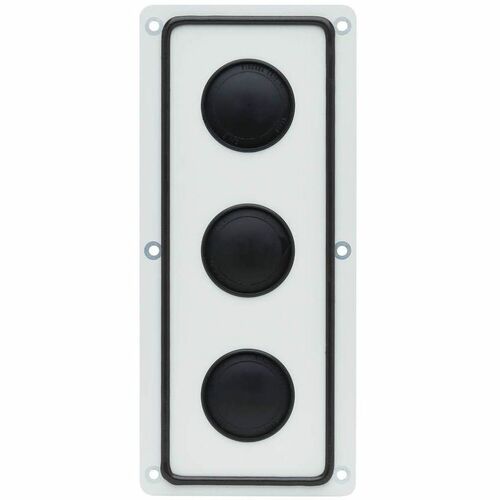

Gasketed Cable Entry Plate for NEMA-Rated Industrial Enclosures

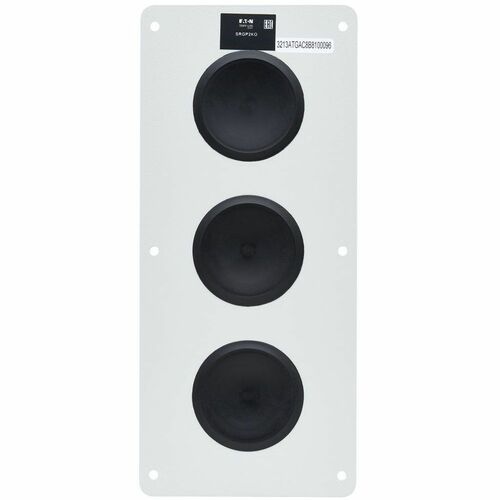

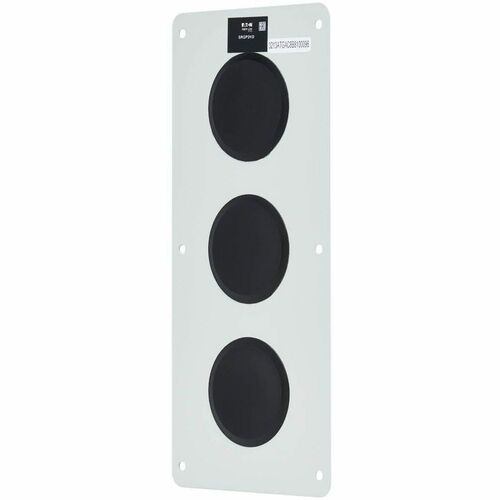

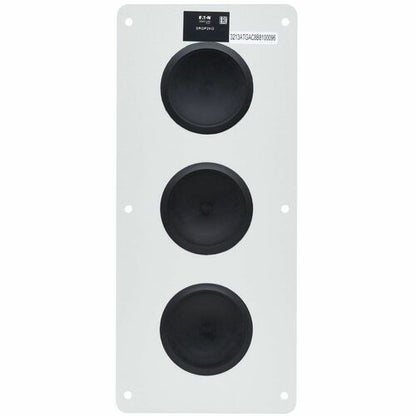

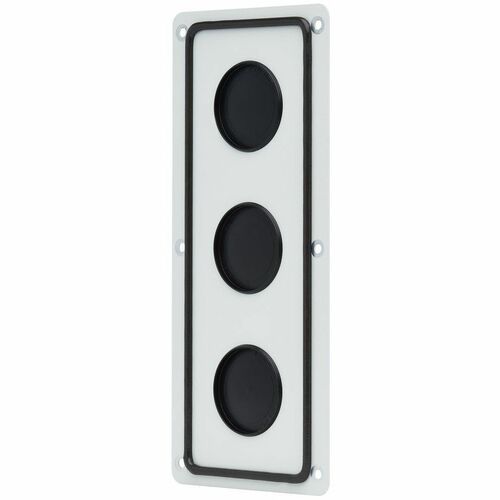

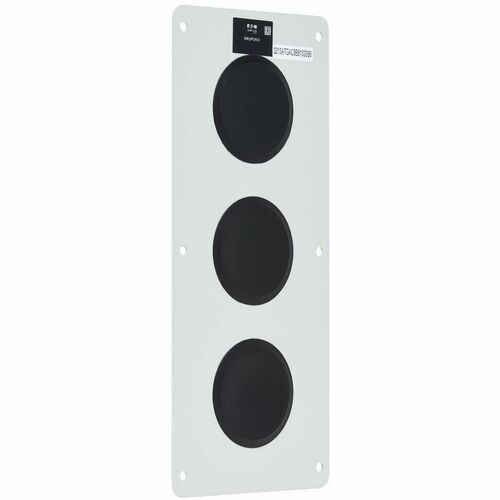

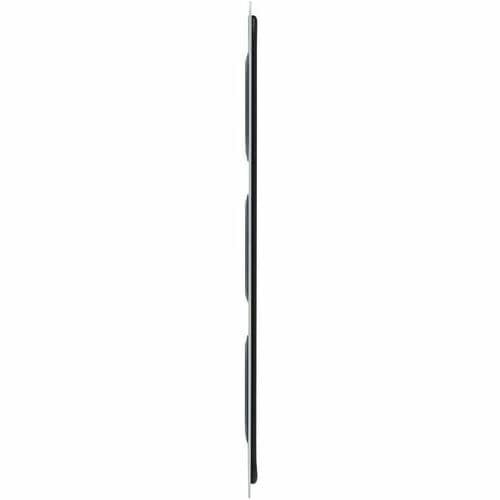

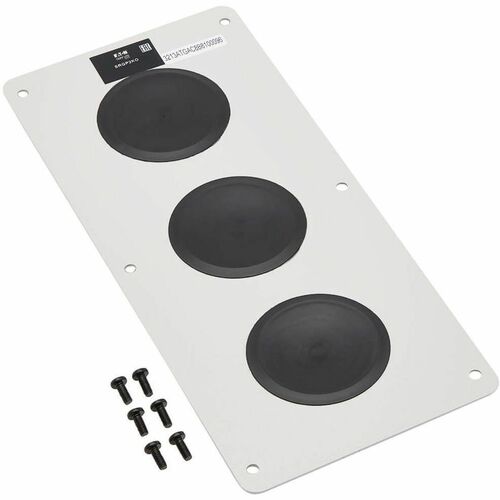

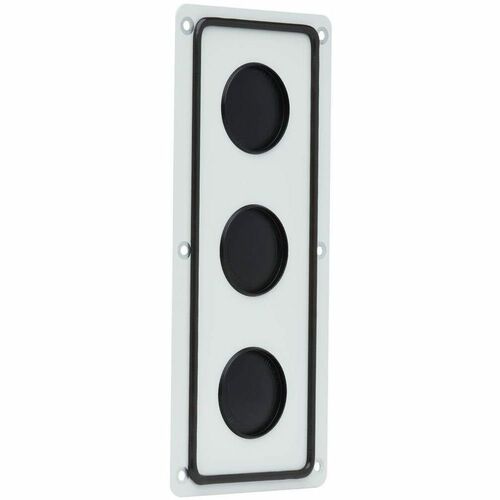

This metal-reinforced gland plate covers cable entry and exit cutouts on SmartRack® NEMA 3R and NEMA 4 industrial enclosures, including the SRN and SRIN series. The SRGP2KO is sized to correspond to the enclosures' cable cutouts, making it quick and easy to install. Three two-inch (50 mm) ports accept user-supplied cable fittings or conduit. LDPE escutcheons protect unused ports against dust and moisture to protect the enclosure's NEMA 3R or NEMA 4 rating.
Technical Specifications
| Product Information | |
| Cable Manager Type | Cable Gland Plate |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Tripplite SmartRack NEMA Industrial Enclosures:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 15.87 oz (450 g) |
| Height | 0.3" (7.62 mm) |
| Width | 13.4" (339.85 mm) |
| Depth | 5.9" (150.01 mm) |
| Product Material | Metal |
| Low Density Polyethylene (LDPE) | |
| General Information | |
| Product Type | Cable Organizer |
| Manufacturer Part Number | SRGP2KO |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SRGP2KO |
| Product Name | SmartRack Cable Gland Plate for NEMA-Rated Enclosure Cabinets, 3 Ports (2 in.) |
| Product Line | SmartRack |
| Brand Name | Tripp Lite by Eaton |
