About the product

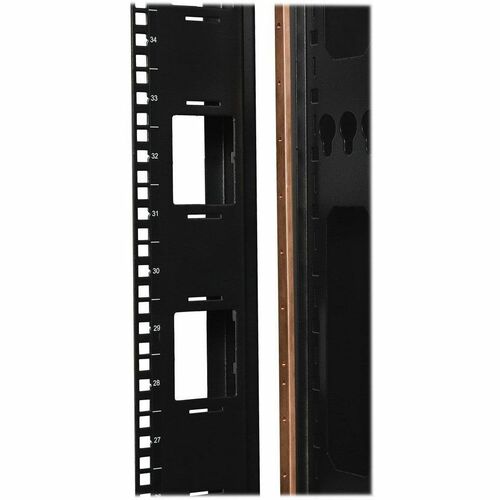

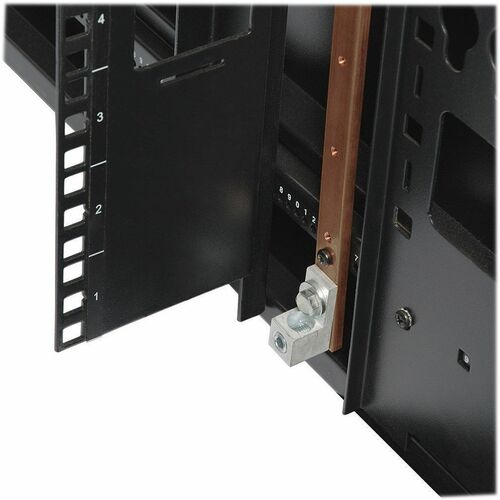

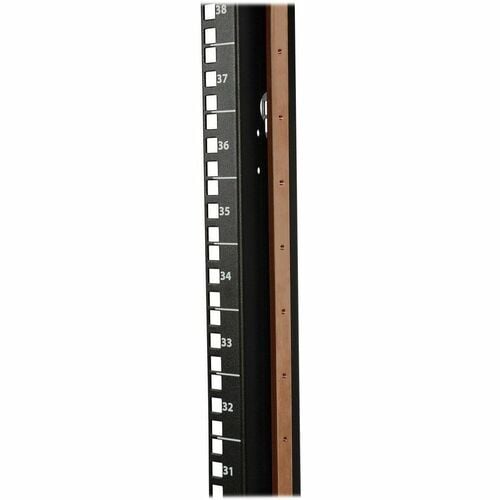

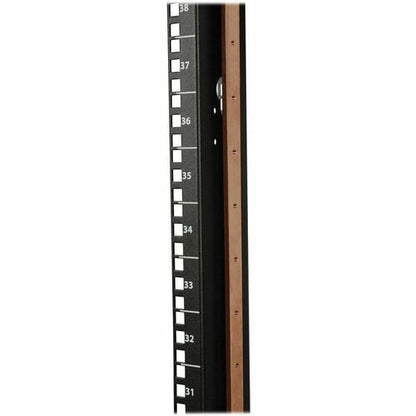

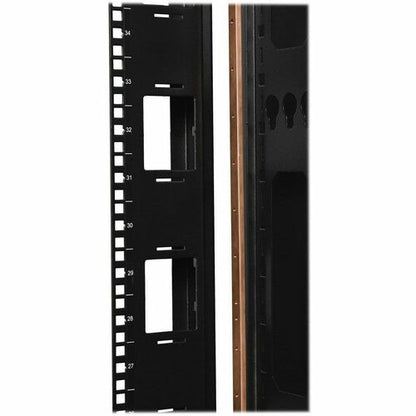

The SRGROUND is a full length (42U) bus grounding bar made from heavy-gauge solid copper that attaches to Rack Enclosure Cabinets or Open Frame Racks to provide convenient ground contact for standard rackmount equipment. Every U space has a drilled and tapped hole to allow a ground wire "jumper" to be installed. The jumper then bridges to the individual pieces of equipment, allowing a direct path to ground rather than going through surrounding equipment. The SRGROUND can mount in a Tripp Lite enclosure in two ways, it can be screwed into the Rack Enclosures (hardware included) or it can be installed using the tool less mounting buttons in the Open Frame Racks.
- Attach to rack enclosure cabinets or open frame racks to provide ground contact
- Heavy-gauge solid copper
- All hardware is included
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 4 lb (1814.37 g) |
| Height | 75.50" (1917.70 mm) |
| Width | 0.63" (15.88 mm) |
| Depth | 0.25" (6.35 mm) |
| Product Material | Copper |
| General Information | |
| Product Type | Busbar |
| Manufacturer Part Number | SRGROUND |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SRGROUND |
| Product Name | SRGROUND SmartRack Copper Bus Grounding Bar |
| Brand Name | Tripp Lite by Eaton |
