About the product
Provides Convenient Ground Contact for Your Rack-Mounted Equipment

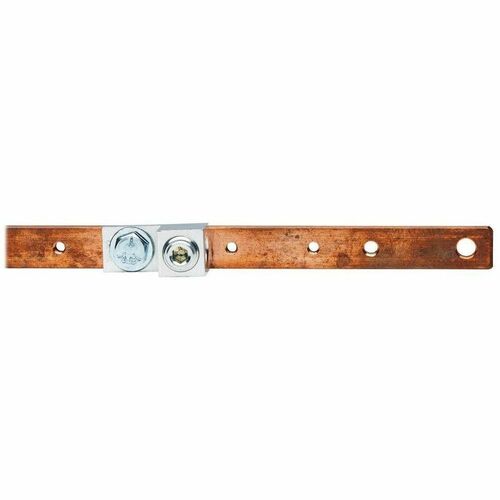

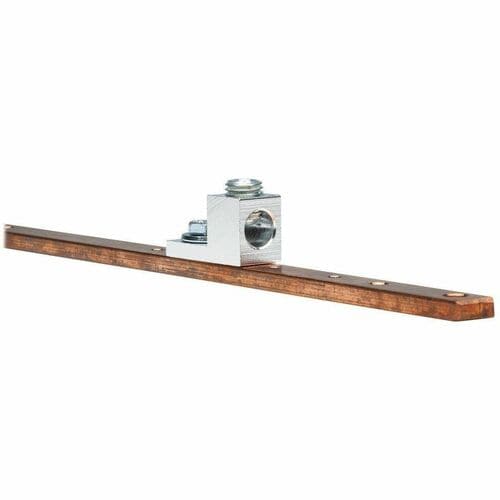

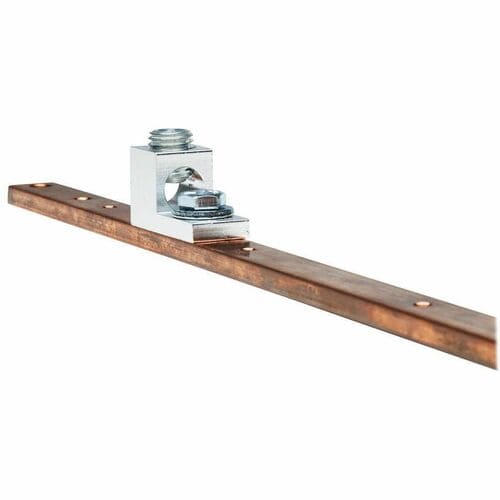

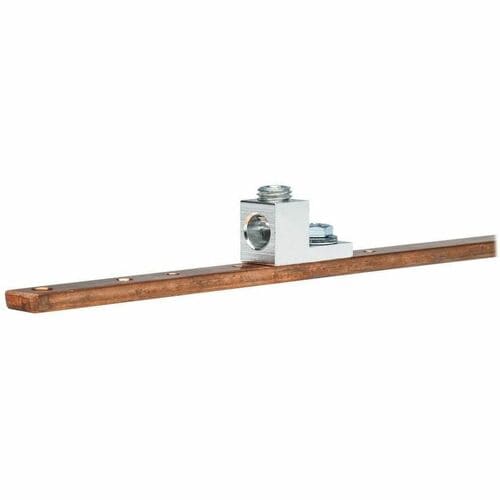

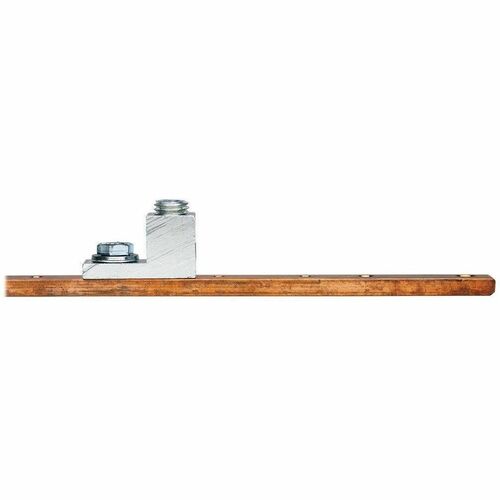

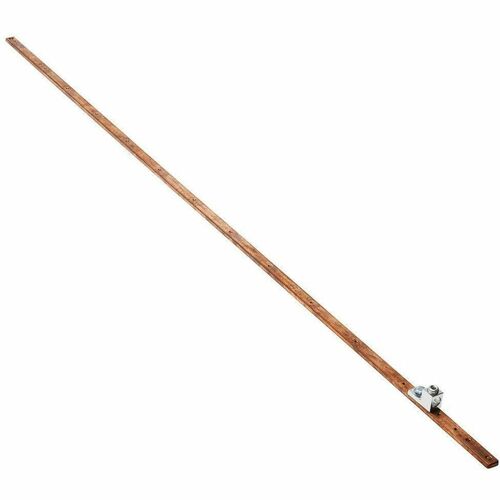

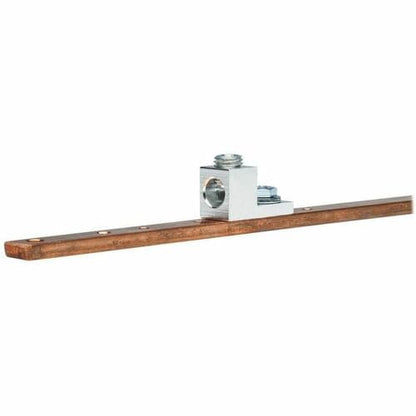

This SmartRack® grounding bar is a thin strip of heavy-gauge solid copper that attaches to any EIA-standard 24U or 25U rack enclosure or open frame rack. Every other U space has a drilled and tapped hole to allow a ground wire jumper to be installed, providing convenient ground contact for standard rack equipment. The jumper then bridges to individual rack components, with grounding straps, allowing a direct path to ground, rather than going through surrounding equipment.
Easy to Install with All Hardware Included

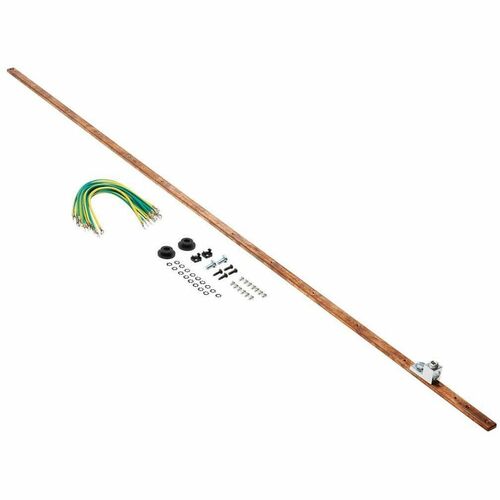

You can mount the SRGROUND25 in any EIA-standard 24U or 25U rack enclosure or open frame rack. Either screw it into a rack enclosure using the included mounting hardware, or install it in an open frame rack with the included toolless mounting buttons. This copper grounding bar is ideal for large data centers that contain ground-sensitive equipment.
Typical Applications
Provides convenient ground contact for standard rack-mount equipment in a 24U or 25U rack
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 3 lb (1360 g) |
| Height | 45.20" (1148.08 mm) |
| Width | 0.63" (15.88 mm) |
| Depth | 0.25" (6.35 mm) |
| Product Material | Copper |
| General Information | |
| Product Type | Grounding Bar |
| Manufacturer Part Number | SRGROUND25 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | Copper Bus Grounding Bar for 24U and 25U Racks |
| Brand Name | Tripp Lite by Eaton |
