Rack Equipments

Expected delivery 3 to 7 business days (exceptions applied)

Tripp Lite

Tripp Lite by Eaton SmartRack SRN3RR12U Rack Mount Enclosure - For Com

Tripp Lite by Eaton SmartRack SRN3RR12U Rack Mount Enclosure - For Com

Regular price $1,523.47 CAD
Regular price $1,706.29 CAD Sale price $1,523.47 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.
Tripp Lite by Eaton SmartRack SRN3RR12U Rack Mount Enclosure - For Computer, DVR, Switch, PDU, Patch Panel, Server, UPS - 12U Rack Height23" (584.20 mm) Rack Depth - Wall Mountable Enclosed Cabinet - Red - Metal, Steel - 200 lb (90718.47 g) Maximum Weight Capacity - 200 lb (90718.47 g) Static/Stationary Weight Capacity

VPN:SRN3RR12U SKU:RSC309403 UPC:37332278036

  • Rack Mount Enclosure allows you to effectively utilize most of the space available with maximum dependability
  • Computer application, usage for easy accessibility with items, valuables, equipment organizational, storage, placement convenience
  • Wall Mountable form factor for your convenience and simplicity of usage

Volume discount available - Ask for quote..

View full details

Recently Viewed

Tripp Lite by Eaton SmartRack SRN3RR12U Rack Mount Enclosure - For Com

Product information summary

Tripp Lite by Eaton SmartRack SRN3RR12U Rack Mount Enclosure - For Com

About the product

Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 23 in. Deep
This SmartRack® industrial enclosure is designed to house 12U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable red powder-coated finish, the SRN3RR12U has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications, especially security, fire, law enforcement and other first-responder applications.

NEMA 3R Enclosure Designed for Protection Against Harsh Elements
The SRN3RR12U protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.

Locks Securely to Help Prevent Theft, Damage and Tampering
The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The weather-sealed door allows easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.

Easy Enclosure and Equipment Installation

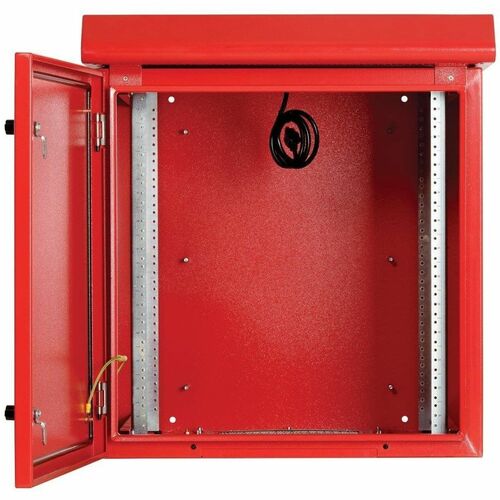

This 12U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 23 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer.

  • Rack Mount Enclosure allows you to effectively utilize most of the space available with maximum dependability
  • Computer application, usage for easy accessibility with items, valuables, equipment organizational, storage, placement convenience
  • Wall Mountable form factor for your convenience and simplicity of usage
  • Built with metal for added firmness and maximum reliability
  • Comes in red color to better suit your theme and style
  • Snow Resistant feature for better items, valuables, equipment organizational, storage, placement reliance

Technical Specifications

Power Description
Plug/Connector TypeNEMA 5-15P
Miscellaneous
Package Contents
  • SRN3RR12U Industrial Enclosure
  • 48 x 10-32 Screws
  • 20 x M6 Washers
  • 4 x LDPE Sheet Metal Plugs
  • 4 x M10 Foam Washers
  • 2 x Keys
  • Owner's Manual
Assembly RequiredNo
Environmentally FriendlyYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
General Information
Product TypeRack Mount Enclosure
Manufacturer Part NumberSRN3RR12U
Manufacturer Website Addresshttp://www.eaton.com/EatonCom/Markets/NorthAmerica
ManufacturerEaton Corporation
Product ModelSRN3RR12U
Product NameSmartRack SRN3RR12U Rack Mount Enclosure
Product LineSmartRack
Brand NameTripp Lite by Eaton
Physical Characteristics
Weight (Approximate)259.55 lb (117729.90 g)
Form FactorWall Mountable
Rack Height12U
Height28.49" (723.65 mm)
Width25.17" (639.32 mm)
Depth27.73" (704.34 mm)
Maximum Weight Capacity200 lb (90718.47 g)
Static/Stationary Weight Capacity200 lb (90718.47 g)
Rack Depth23" (584.20 mm)
Product ColorRed
Color FamilyRed
Product MaterialMetal
Steel
Technical Information
Application/UsageComputer
DVR
Patch Panel
PDU
Server
Switch
UPS
FeaturesMoisture Resistant
Lockable Door
Heavy Duty
Debris Resistant
Damage Resistant
Rain Resistant
Snow Resistant
Tamper Resistant
Cable Management
Adjustable Mounting Rails
Anti-theft
Rack TypeEnclosed Cabinet
