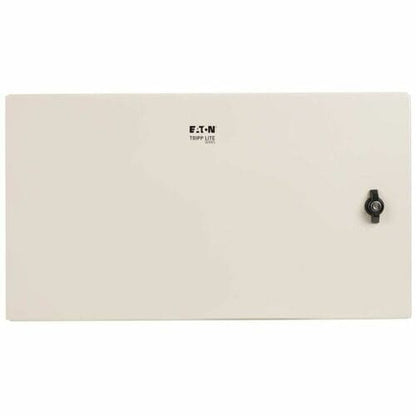

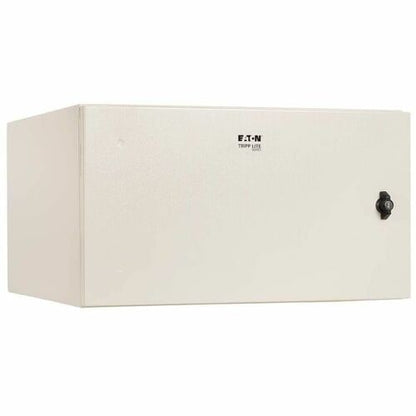

Tripp Lite by Eaton SRN4G6UDP Industrial Enclosure - For Computer, DVR
Tripp Lite by Eaton SRN4G6UDP Industrial Enclosure - For Computer, DVR
VPN:SRN4G6UDP SKU:RSC260860 UPC:37332273093
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details















Recently Viewed
Tripp Lite by Eaton SRN4G6UDP Industrial Enclosure - For Computer, DVR
Product information summary

About the product
Locking metal enclosure protects your rack-mount equipment against theft, damage, tampering, and excess moisture and debris.
Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 20.5 in. Deep

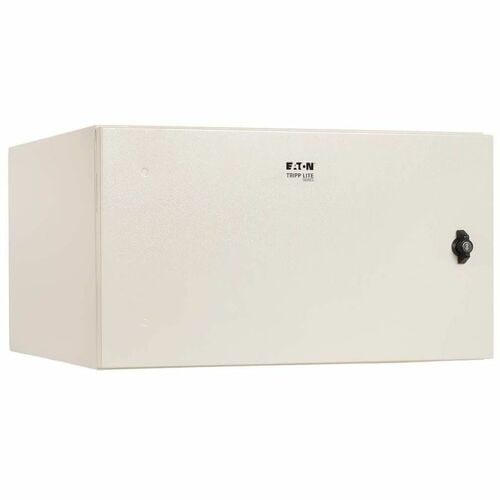

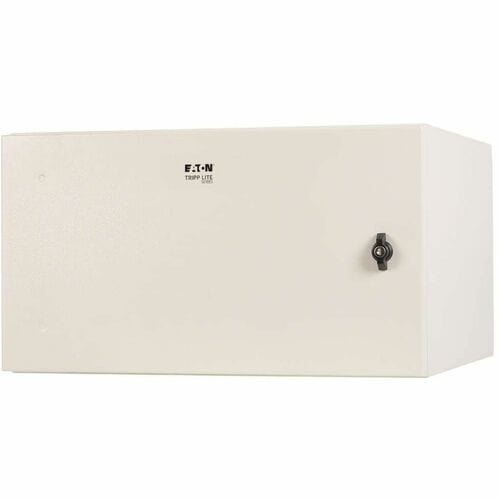

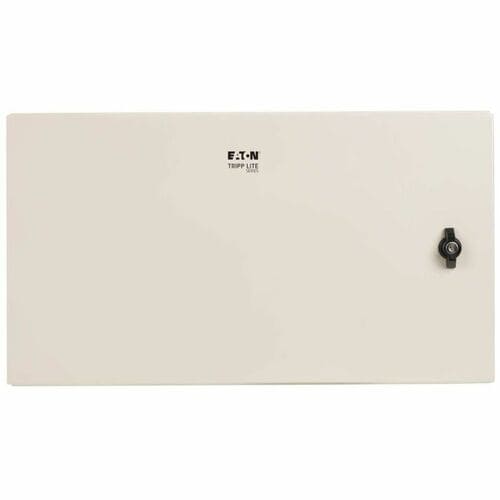

This SmartRack® industrial enclosure is designed to house 6U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from heavy-duty steel with a durable gray powder-coated finish, the SRN4G6UDP has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.
NEMA 4 Enclosure Designed for Protection Against Harsh Elements
The SRN4G6UDP protects its contents against the ingress of water (including rain, sleet, snow, splashing water and hose-directed water), solid foreign objects (including falling dirt and windblown dust) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks Securely to Help Prevent Theft, Damage and Tampering

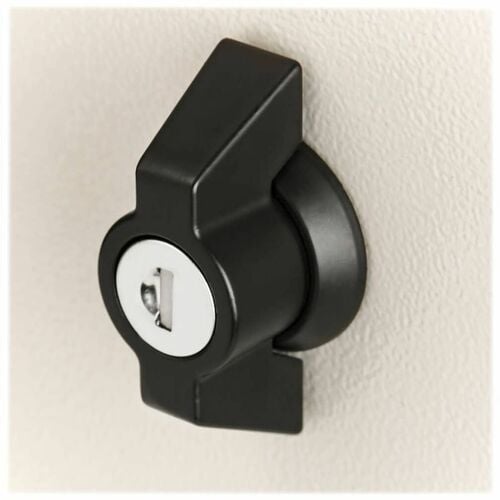

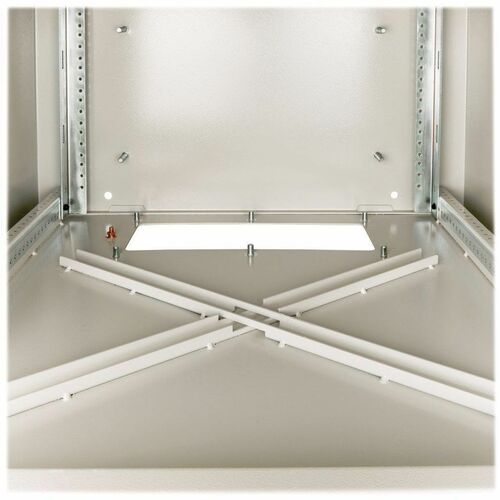

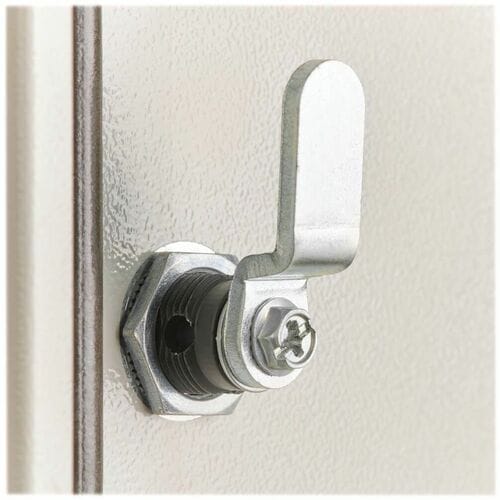

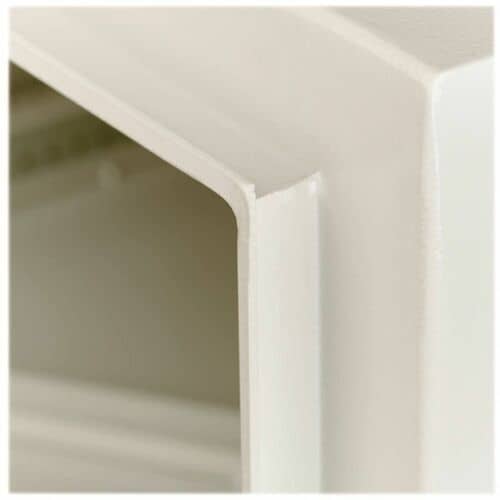

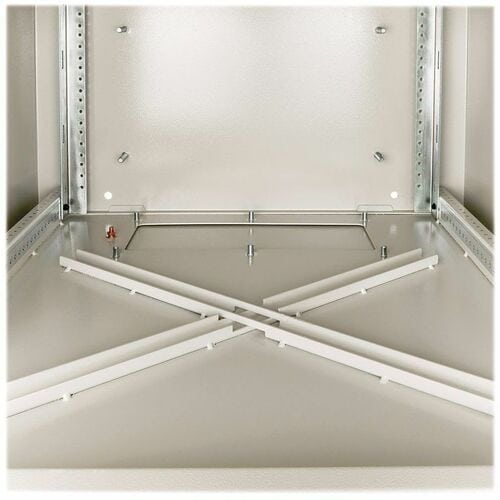

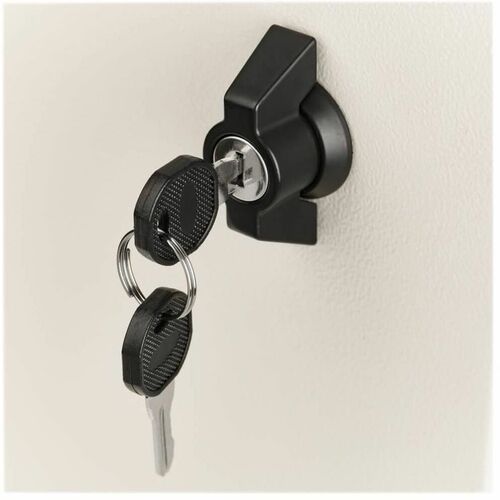

The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering, dust and other contaminants. The weather-sealed door swings away on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation

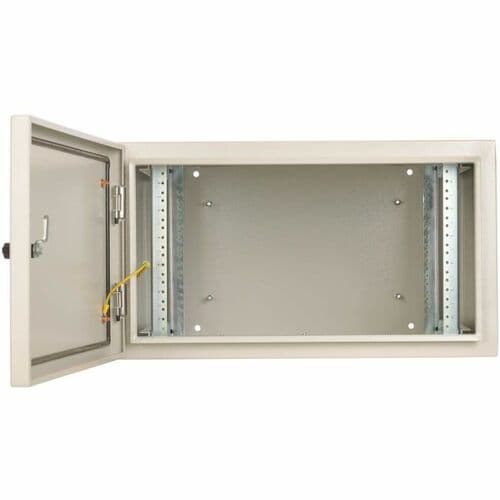

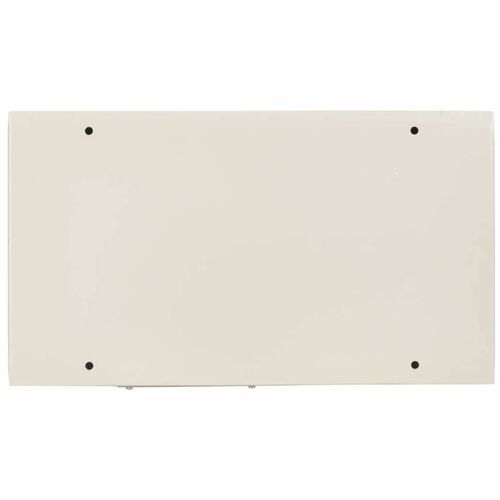

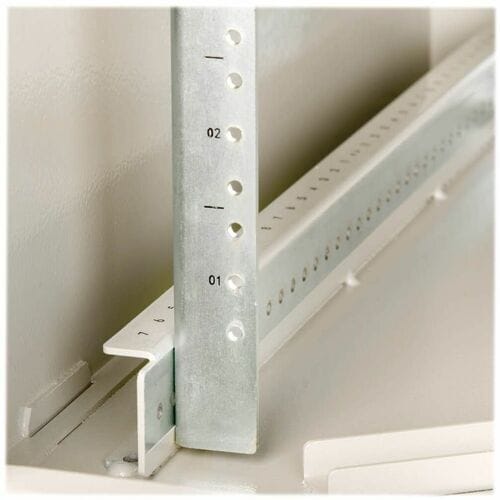

This 6U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 20.5 inches deep. Hardware for mounting equipment inside the enclosure is included.
- Rack Mount Enclosure allows quick and easy retrieval of your items with better organizing and feasible mounting
- Rack Mount Enclosure allows you to effectively utilize most of the space available with maximum dependability
- Computer application, usage for your items, valuables, equipment organizational, storage, placement convenience and ease
- Computer application, usage offers maximum items, valuables, equipment organizational, storage, placement reliability
- Wall mountable rack mount enclosure encourages collaboration and interactivity with maximum productivity
- Wall mountable rack mount enclosure significantly increases the aesthetic appeal of your room with improved safety
- Built with steel which enhances the design and general presentation style of #atr#1100#
- Built with steel for added firmness and maximum reliability
- Built with steel to offer great resistance to damage and deterioration
- Comes in gray color to better suit your theme and style
- Comes in gray color for a sophisticated and dazzling loo
- Lockable feature for maximum items, valuables, equipment organizational, storage, placement efficiency, and convenience
- Lockable feature for maximum items, valuables, equipment organizational, storage, placement convenience
- Lockable feature for better items, valuables, equipment organizational, storage, placement reliance
Technical Specifications
Miscellaneous | |
Package Contents |
|
Assembly Required | No |
Environmentally Friendly | Yes |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Restriction of Hazardous Substances (RoHS) | |
General Information | |
Product Type | Rack Mount Enclosure |
Manufacturer Part Number | SRN4G6UDP |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Model | SRN4G6UDP |
Product Name | SRN4G6UDP Industrial Enclosure |
Product Line | SmartRack |
Brand Name | Tripp Lite by Eaton |
Physical Characteristics | |
Weight (Approximate) | 66.90 lb (30345.33 g) |
Form Factor | Wall Mountable |
Rack Height | 6U |
Height | 13.58" (344.93 mm) |
Width | 24" (609.60 mm) |
Depth | 23.16" (588.26 mm) |
Static/Stationary Weight Capacity | 200 lb (90718.47 g) |
Rack Depth | 20.50" (520.70 mm) |
Product Color | Gray |
Color Family | Gray |
Product Material | Steel |
Metal | |
Technical Information | |
Application/Usage | Server |
PDU | |
Patch Panel | |
LAN Switch | |
UPS | |
Computer | |
DVR | |
Features | Snow Resistant |
Splash Resistant | |
Swing Door | |
Tamper Resistant | |
Water Resistant | |
Anti-theft | |
Damage Resistant | |
Debris Resistant | |
Dust Resisitant | |
Heavy Duty | |
Key Lock | |
Lockable | |
Moisture Resistant | |
Rack Type | Enclosed Cabinet |
