About the product

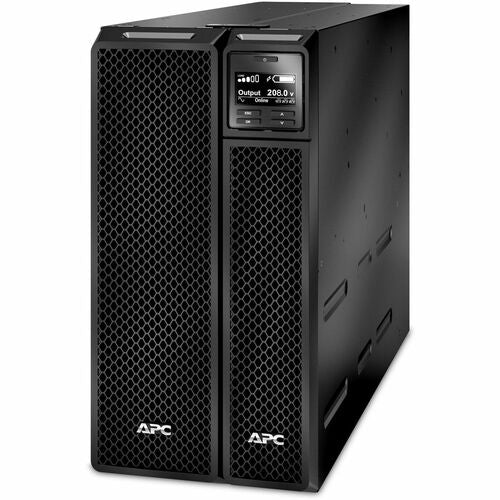

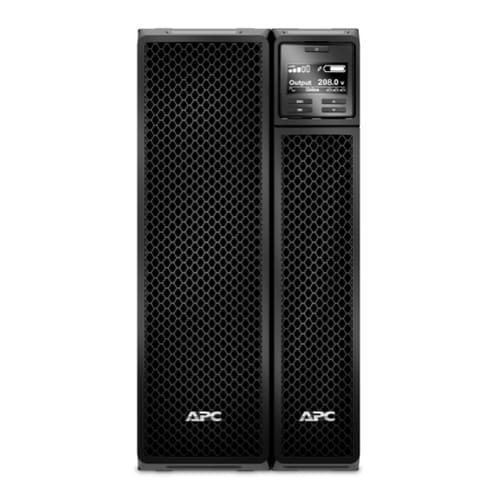

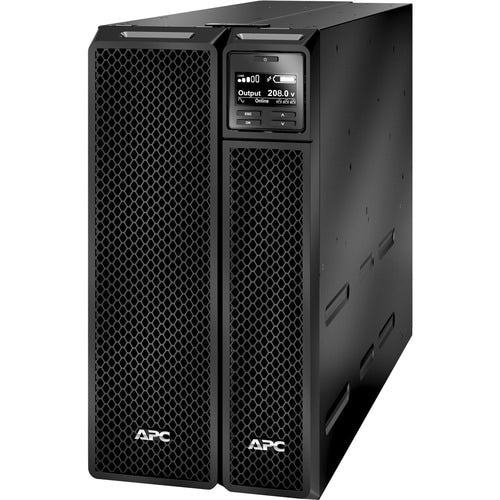

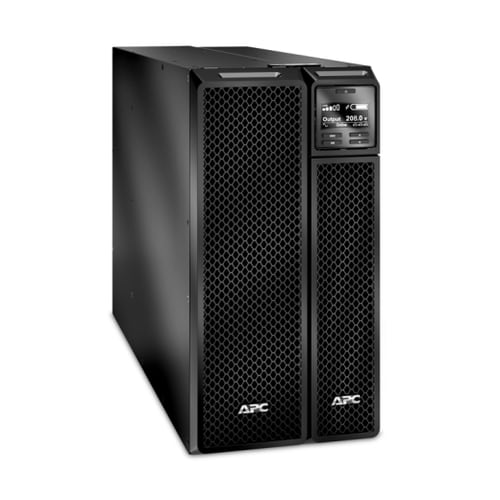

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-20P input, 4x L6-20R, 8x 5-20R, 1x L14-30R, and 1x L6-30R NEMA outlets. The UPS has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.
- 3 kVA load capacity - work without any interruption during power outages
- 2.70 kW load capacity - backup power for your valuable electronics
- Prevent critical data loss by staying powered during a blackout with up to 2.70 kW load capacity
- 3 kVA load capacity provides sufficient backup during power failures
Technical Specifications
| Warranty | |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRT3000XLT-5KTF |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SRT 3000VA 208/240V to 120V Step-Down Transformer |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Surge Energy Rating | 340 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Technical Information | |
| Plug/Connector Type | NEMA L6-20P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA L6-20P |
| Number of Battery & Surge Outlets | 14 |

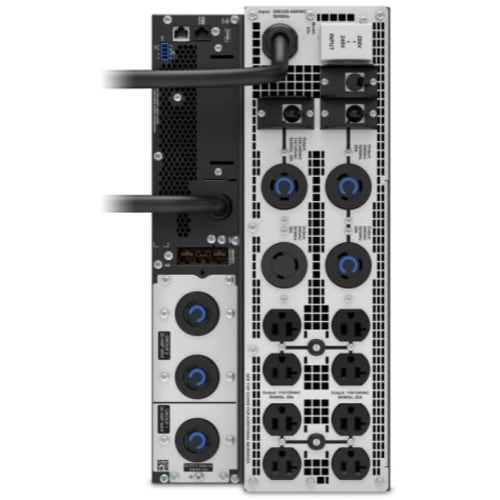

| Receptacle Detail | 1 x NEMA L6-30R |
| 4 x NEMA L6-20R | |
| 8 x NEMA 5-20R | |
| 1 x NEMA L14-30R | |
| Physical Characteristics | |
| Weight (Approximate) | 194.01 lb (88001.46 g) |
| Form Factor | Rack-mountable |
| Height | 17.01" (432 mm) |
| Width | 6.69" (170 mm) |
| Depth | 25" (635 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Miscellaneous | |
| Package Contents | |
| Software Included | Powerchute Serial Edition |
| Certifications & Standards | ENERGY STAR V2.0 (USA) |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT3000XLT-5KTF_ROHS_DECLARATION&p_FileName=SRT3000XLT-5KTFKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135476&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135476&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
